4

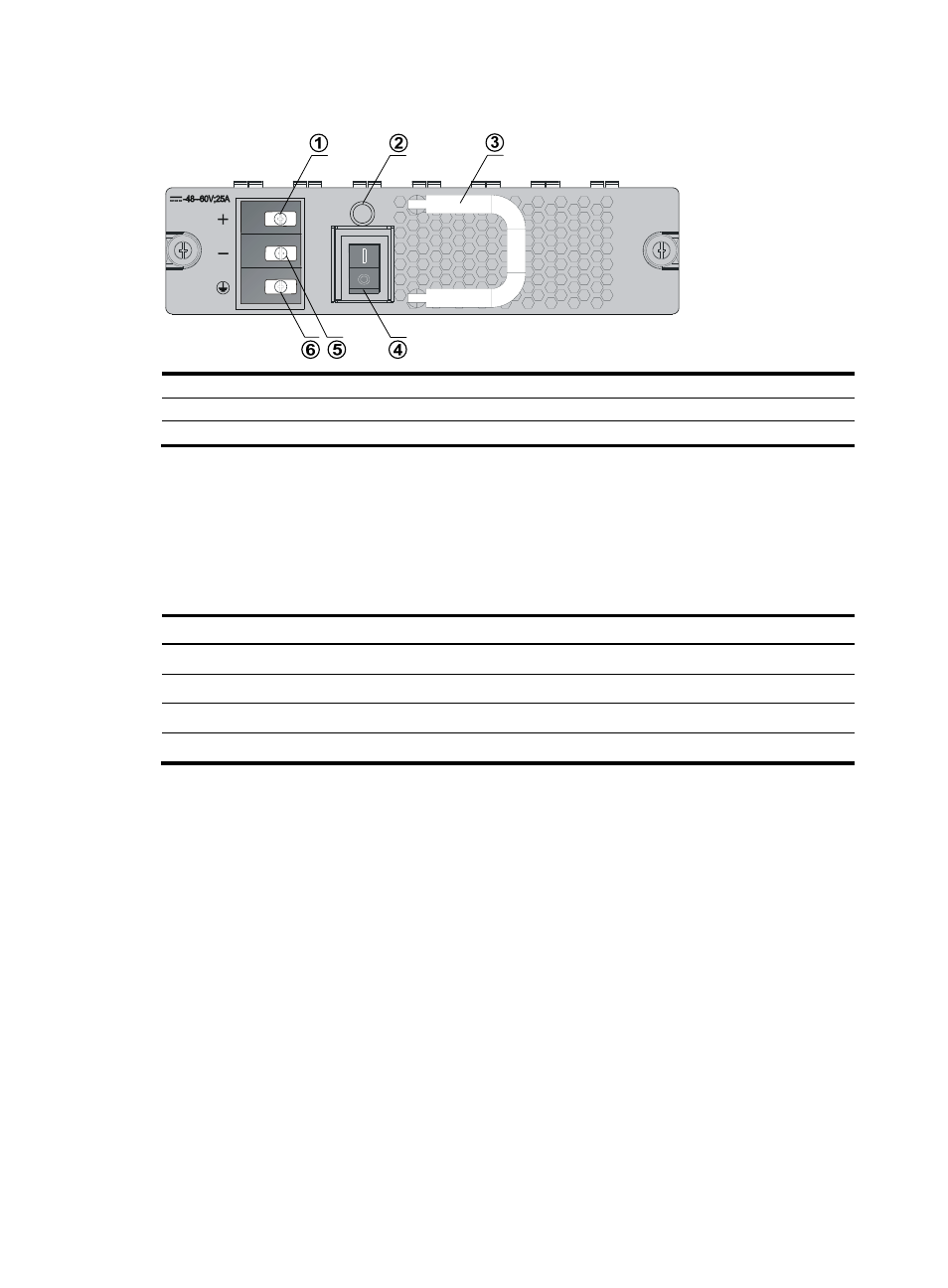

Figure 4 Front panel of the PSR650-D
1: RTN (+) terminal of DC input 2: LED
3: PSU handle 4: Power switch
5: NEG (–) terminal of DC input (–48 V to –60 V) 6: PGND terminal
Fan tray
The WX6103 has a horizontal chassis, and the fan tray locates at the right of the chassis. The fan tray
structure is as shown in Table 3 .
Table 3 Fan specifications
Fan (built-in) Description
Rated voltage 12 VDC
Total power consumption 21.6 W
Dimensions (H × W × D) 127.1 × 29.3 × 337.3 mm (5.00 × 1.15 × 13.28 in)
Hot swapping Supported
