Grass Valley iControl V.4.43 User Manual
Page 609
iControl
User Guide
599

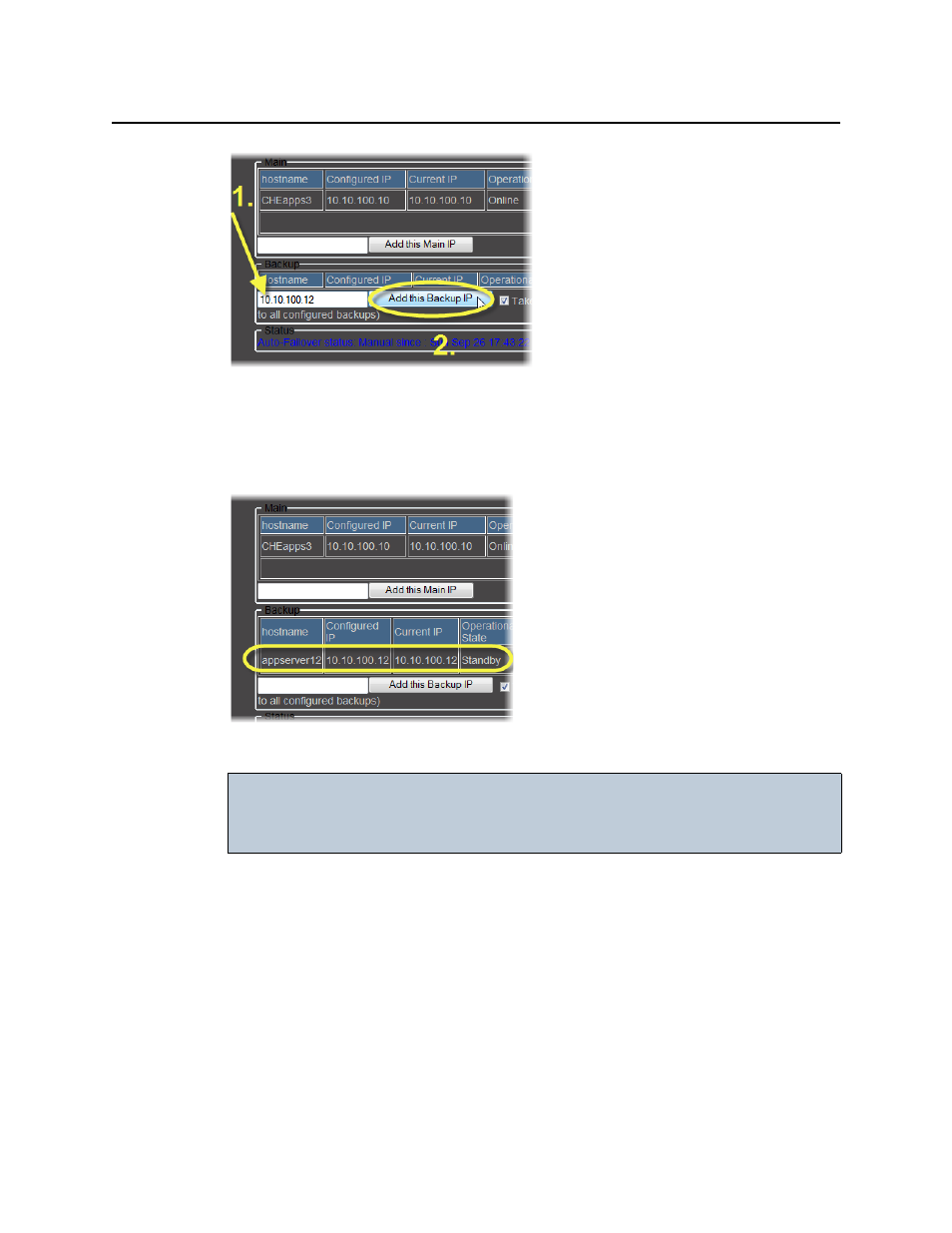

Figure 10-17
2. Click Add this Backup IP (next to the text field).
The Redundancy Configuration Form refreshes with the added Application Server listed
in the Backup area.
Figure 10-18
3. Perform only ONE of the following two actions:
•
Click the host name of the newly added Backup Application Server.
OR,
•
In another browser window or tab, type the IP address of the newly added Backup
Application Server.
4. Navigate to the Redundancy Configuration Form for this Application Server
(see
).
5. Near the bottom of the Web page, in the Backup used for Auto-failover list, select the
Backup Application Server that will be used in the Auto-failover.
6. Select the desired replication frequency from the list.
IMPORTANT: System behavior
Your Redundancy Group offers no redundancy until you have configured
one Application Server in the role of Backup.
