Viewing the Media Hierarchy
Profile Family 93
Viewing the Media Hierarchy
The Media Manager window is divided into two main sections: the tree and
contents panes. Clips and masters appear in the contents pane. Items are listed
alphabetically.
You can expand or collapse the tree hierarchy by clicking on the + (plus) or –
(minus) control buttons, as shown in Figure 55. If you click on a + button, the
tree hierarchy is expanded or opened so you can see the branch. For example,
under a volume, you see bins. Clicking on the – button collapses or closes the
associated branch of the tree, hiding the bins under the volume.

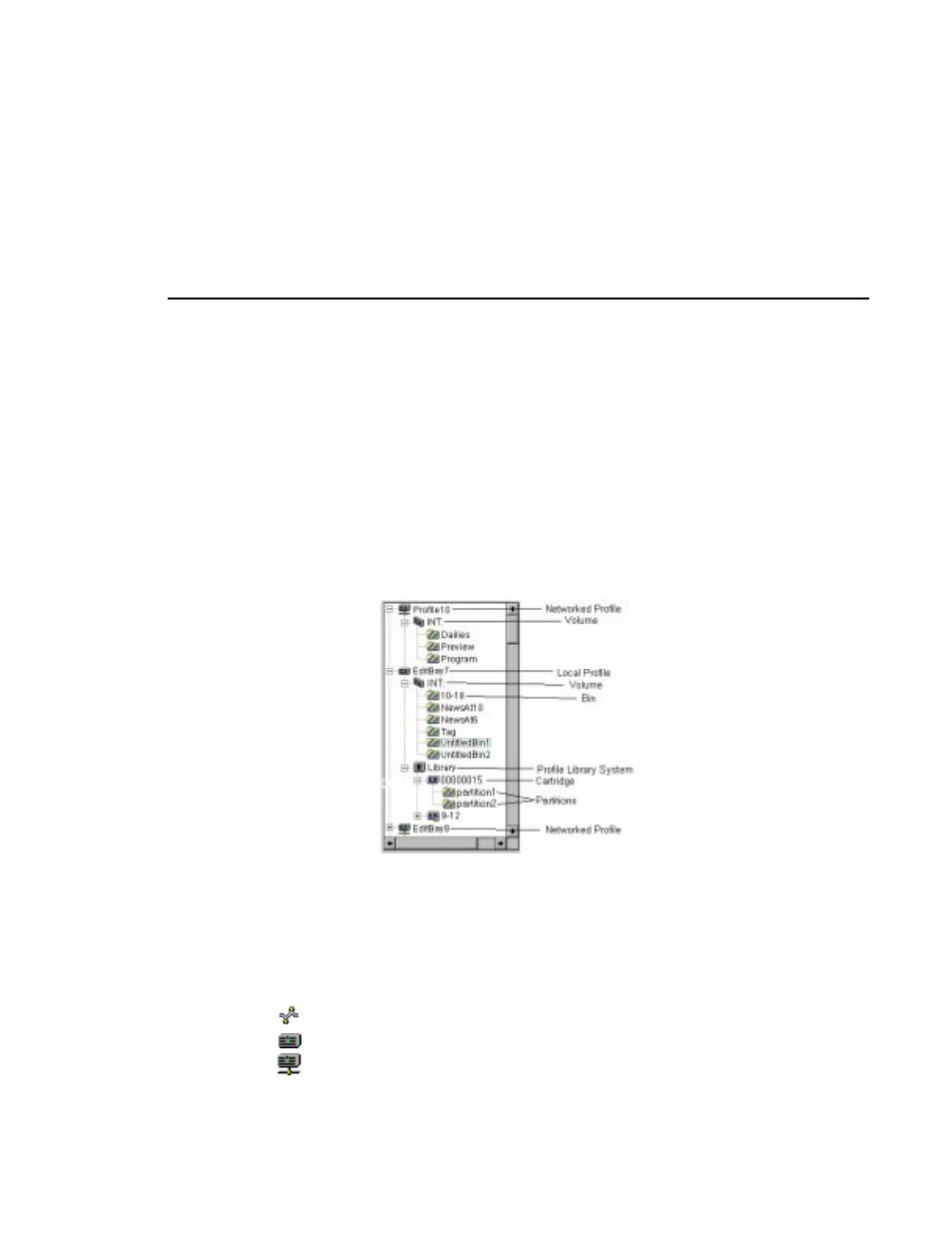

Figure 55. The Media Manager window
To explore the contents of an item, select the icon representing it and then
choose
Explore from the shortcut menu which is displayed with a right-click.
The icons shown in Media Manager are show here:
The Profile network icon is the root for all other items in the tree pane.
First icons in the tree pane are for Profile machines, and each is labeled
with a name. A Profile can be a local machine or one connected via
Ethernet alone (without bar) or a machine connected via Ethernet and
Fibre Channel (with bar).
