Chapter 2 Using the Profile Configuration Manager
40 Profile Family
Analog Composite Video Input for Preexisting Profile Units
NOTE: These instructions apply only if you are upgrading your disk
recorder to Profile system software version 2.2. If you have a new disk
recorder, follow the instructions in “Analog Composite Video Input”
on page 34.
To open the Analog Composite Video Input dialog box, select Video Input
from the configuration tree, and then click or double-click an analog composite
input from the list, such as Composite-InA-J5. This configuration has several
dialog boxes, each opened by clicking the appropriate tab. The Main tab is
displayed when the configuration box is opened. Click on the other tabs to open
the other controls.

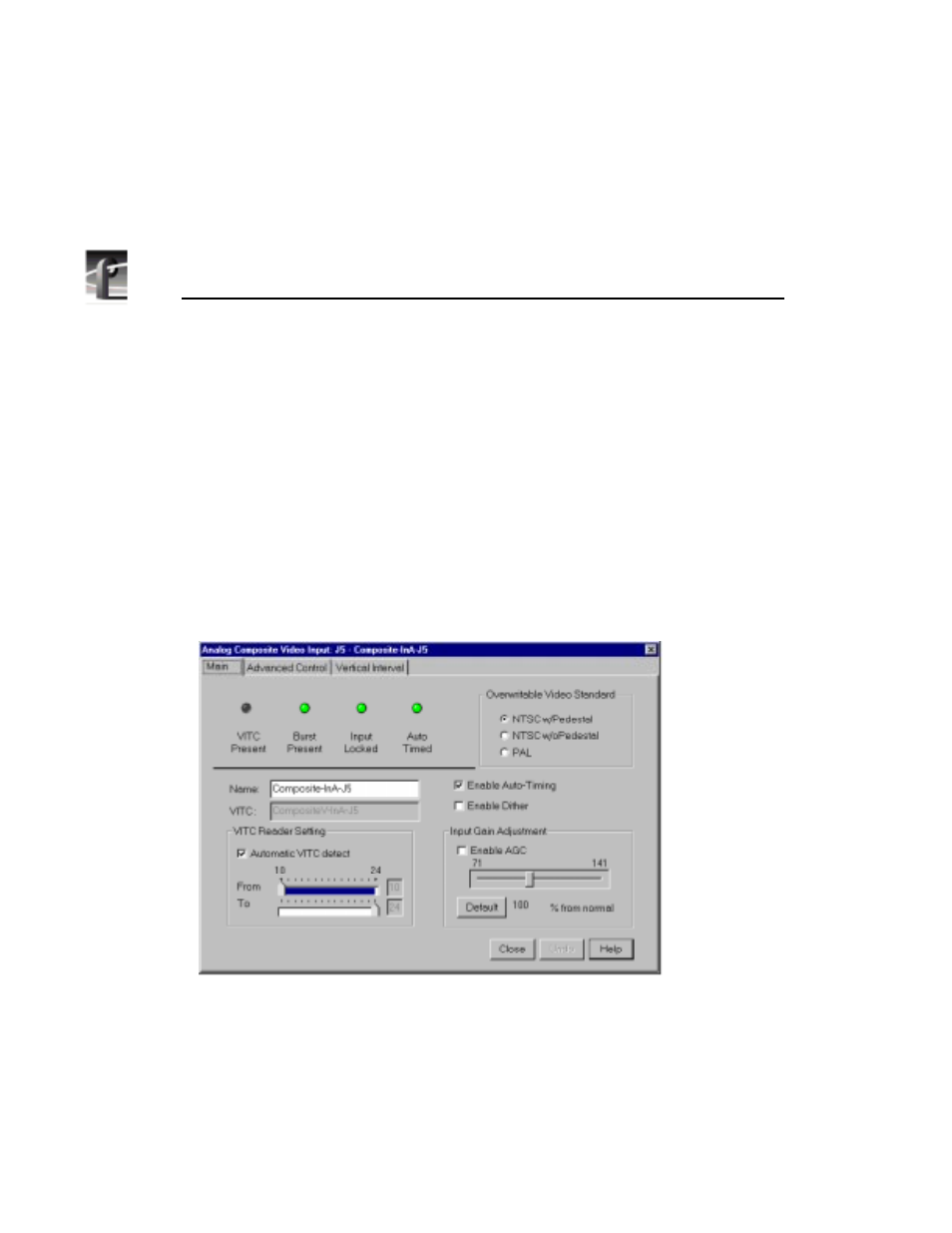

Figure 22. Analog Composite Video Input dialog box, Main tab
Status Indicators
Display the current status of this video input: VITC Present, Burst Present,
Input Locked and Video Timed. The green light indicates a particular status is
on. These indicators cannot be edited.
