Selecting a Communications Port for Remote Control
Profile Family 267
Selecting a Communications Port for Remote Control
To select a communications port:
1. Click anywhere within the specific Panel dialog box to select the panel.
NOTE: The Communication Port dialog box is accessed
automatically the first time Remote Control is selected.
2. Select Controller | Comm Port to access a Controller Setup dialog box. An
example of this dialog box is illustrated in Figure 140.

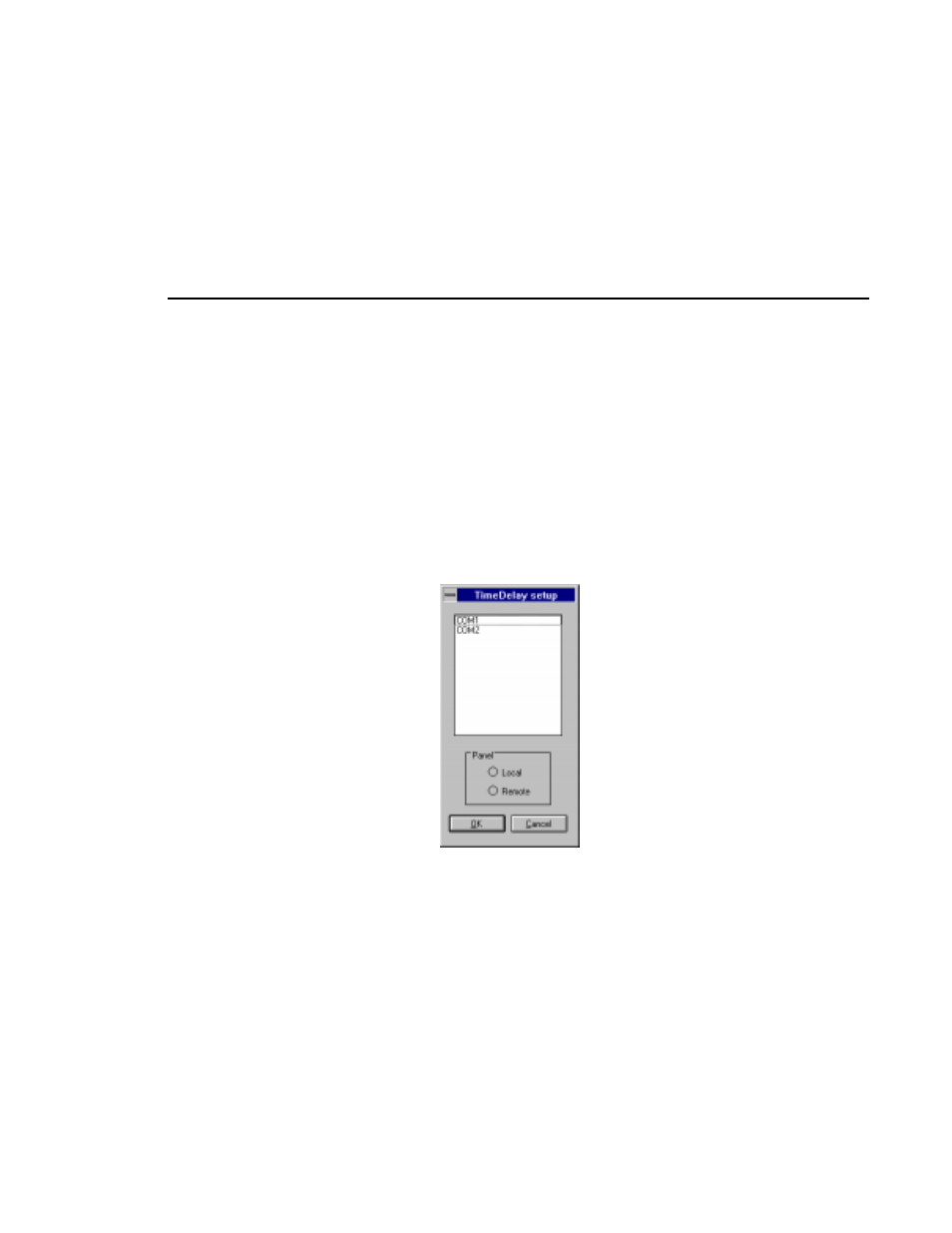

Figure 140. Communication Port dialog box
NOTE: COM1 and COM2 are available on the disk recorder back
panel (RS-232 DB-9 connectors). Ports P1 through P8 are available
on the RS-422 breakout panel. Any P ports used by VdrPanel should
have the DIP switches set to Device. Refer to your disk recorder’s
installation manual for details.
3. Select the communications port and click OK .
