Chapter 2 Using the Profile Configuration Manager
24 Profile Family
Setting Master Timecode
From the Master VITC Setting dialog box, you can conveniently view and
change VITC settings for genlock and all available inputs and outputs. To set
the master timecode (VITC) settings:
1. Choose Options | Master Timecode or click the Master Timecode button on the
toolbar. The Master VITC Setting dialog box appears (Figure 14).

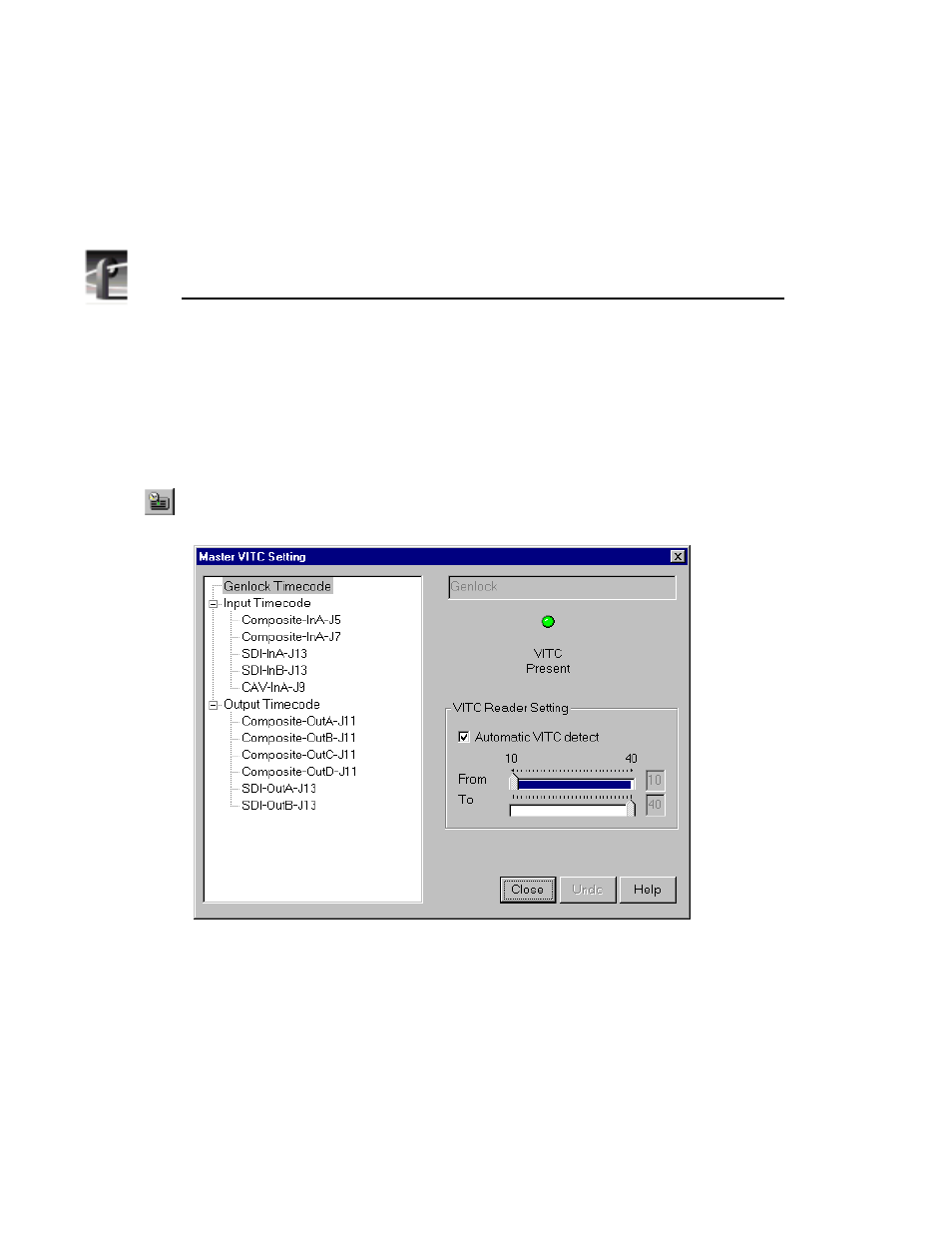

Figure 14. Master Timecode dialog box, genlock settings
2. The VITC Present status indicator should be on (green) if VITC is present.
If VITC Present is not on, use one of the following options:
• Manual VITC detection (four-channel LTC version of the reference genlock
board):
- Verify Automatic VITC detect is not selected. If it is, click to toggle it.
- Set VITC Reader Line1 to the expected location of the first Reader Line
