Serial Digital Component Video Input
Profile Family 51
Serial Digital Component Video Input
To open the Serial Digital Component Video Input dialog box, click or double-
click
Video Input on the configuration tree, and then select a digital component
input from the list, such as SDI-InA-J13.

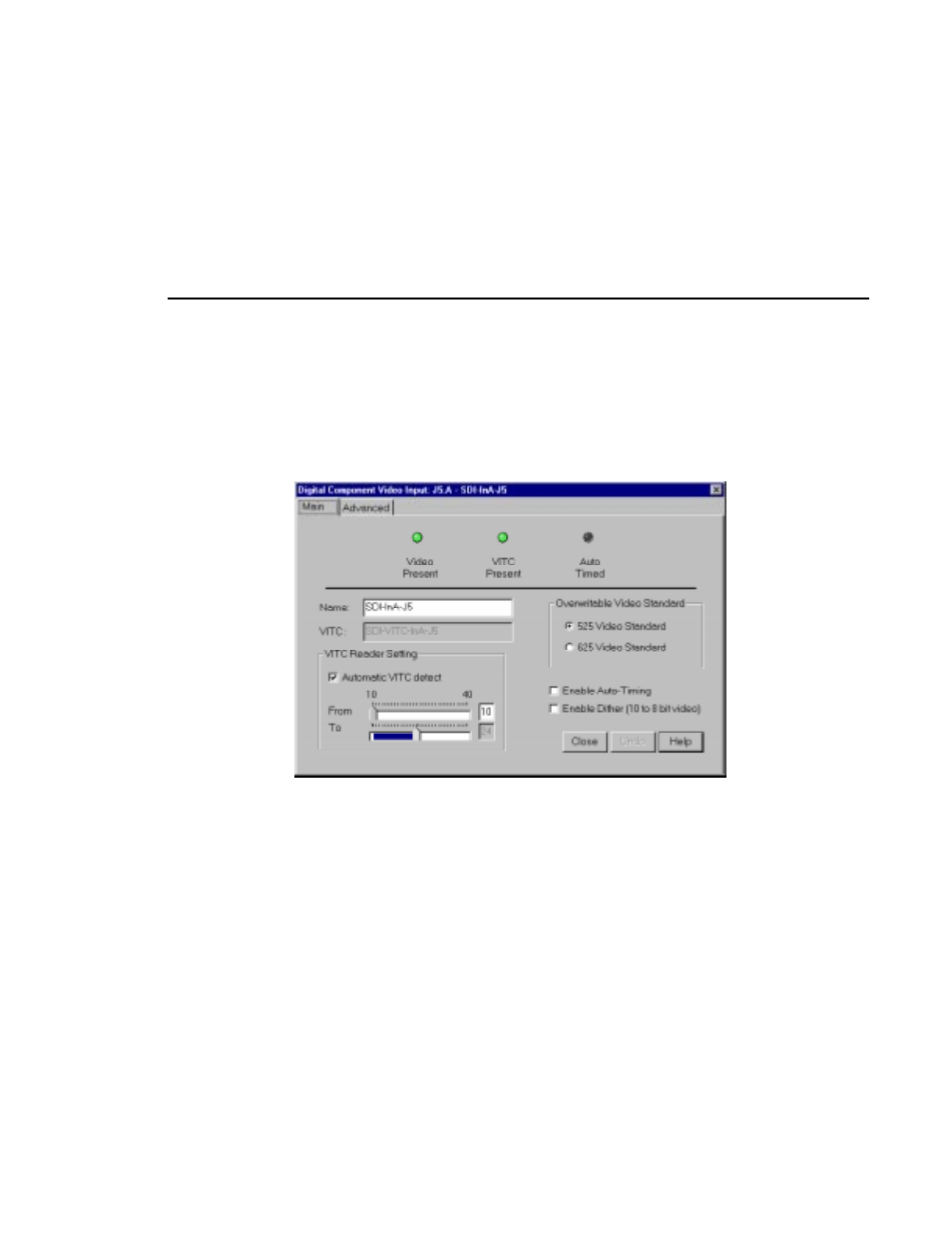

Figure 26. Serial Digital Component Video Input dialog box
Status Indicators
Display the current status of this video input: Video Present, VITC Present, and
Auto Timed. The green light indicates that a particular status is on. These
indicators cannot be edited.
Overwritable Video Standard
Changes the video standard for this input board: NTSC/525 or PAL/625. If you
change this standard, you must restart all tools that use this channel. The board
can serve both standards, but the input can only accept one at a time.
