Understanding Segments
Profile Family 283
Understanding Segments
Segments are the portions of information to be played. The original clip is the
uncensored material available to be marked. When you set an out mark, you are
indicating information to be edited out of the segment, when you set an in mark,
you indicate information to be included in the segment.
For example, Figure 149 illustrates the original clip and three marked
segments.

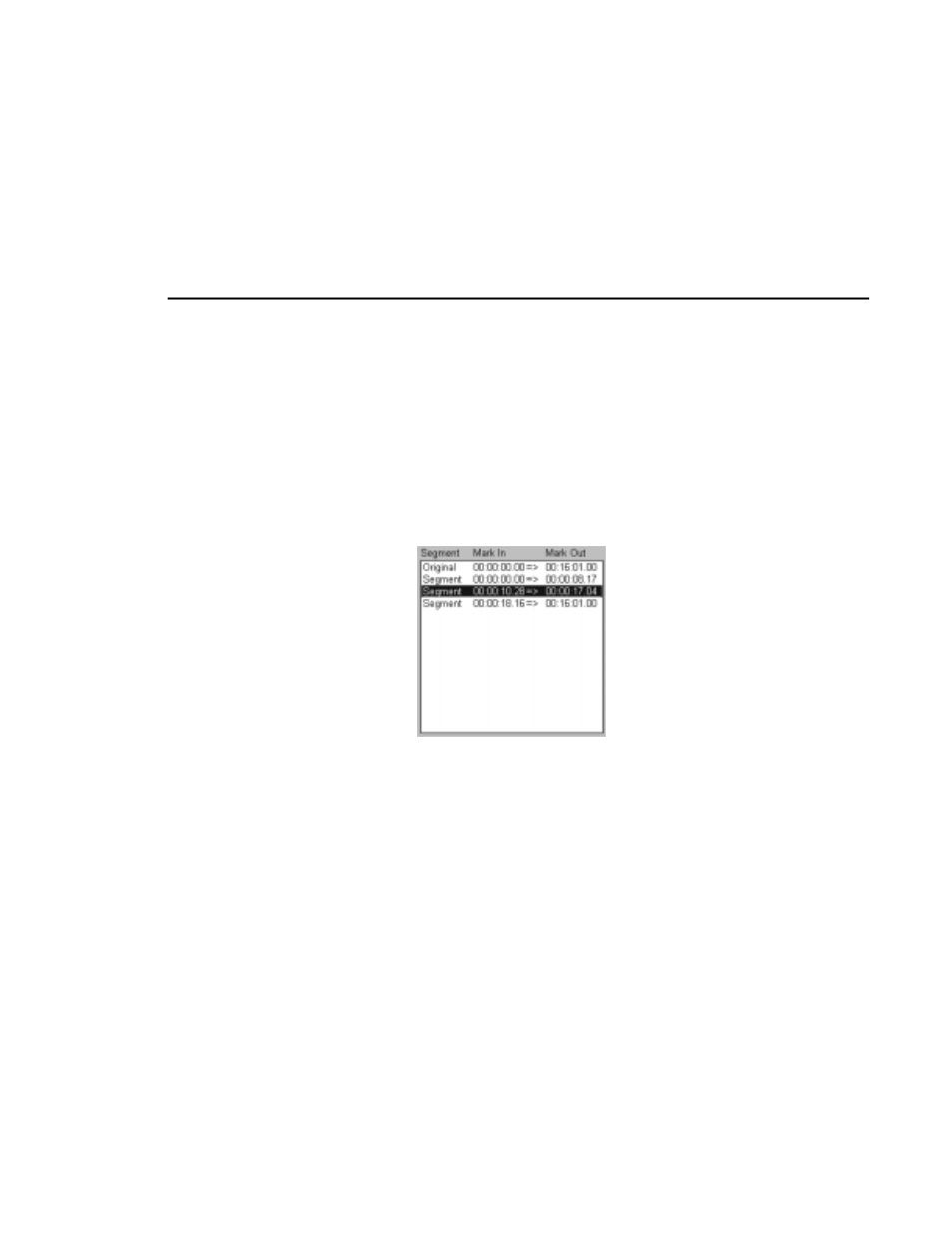

Figure 149. Segments in the clip window
• The Original clip is 00:16:01.00 in length.
NOTE: The Trim operations are not valid for the original clip. The
Mark operations are not valid for the segments.
• The first segment includes everything from the start of the clip to the frame
at 00:00:08.17. All of these frames are included in the playback.
• The frames between 00:00:08.17 and 00:00:10.28 have been censored. They
are not included in the playback. Likewise, the frames between 00:00:17.04
and 00:00:18.16.
• The Join buttons are used to reinsert censored material back into the
playback stream. For example, if Join Prev was clicked for Segment 2, the
material between 00:00:08.17 and 00:00:10.28 would be reinserted.
Segment 1 would change to reflect 00:00:00.00
⇒
00:00:17.04, the former
Mark Out for Segment 2.
