Chapter 2 Using the Profile Configuration Manager
64 Profile Family
• Associated Video Input Channel lists the name of the digital component
video input channel associated with the audio signal.
• Related Audio Channels lists the audio channels that are related to the
signal name.
• Selected Audio Receive Group is in the range 1–4. To change the group,
click on the button associated with the group.
• Selected Group Status represents parity error and check sum error with a
status indicator for each. The green light indicates an error condition. These
indicators cannot be edited.
Analog Audio Output
To open the Analog Audio Output dialog box, select Audio Output from the
configuration tree, and then click or double-click an analog audio name from
the list.

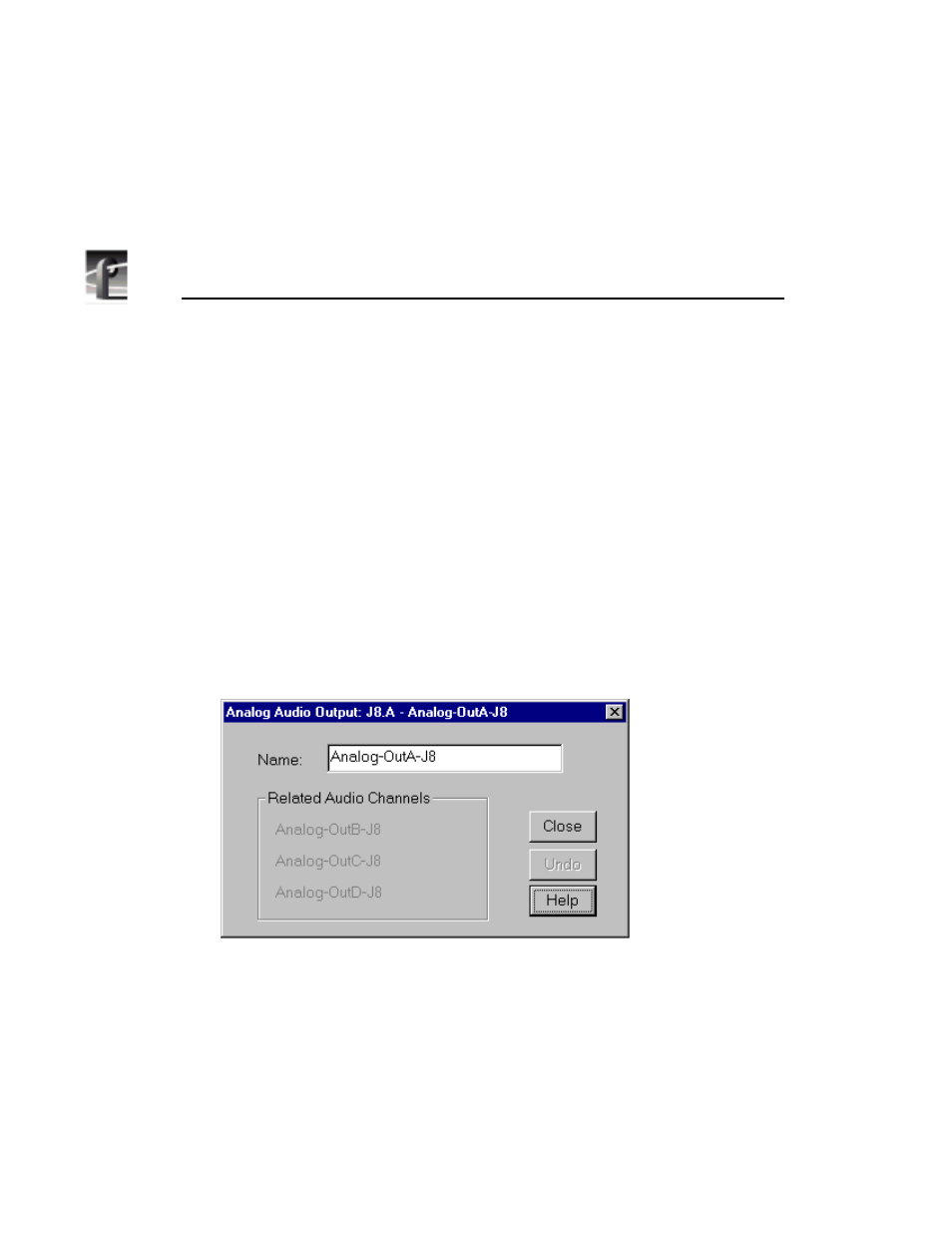

Figure 36. Analog Audio Output dialog box
• Name changes the signal name—Audio_Out_1, for example. Names can be
up to 30 characters, and can include spaces. The window title bar name and
the configuration tree name automatically change as you enter the new name.
To return a renamed signal to the default, delete all the characters in the text
field, and press Enter.
• Related Audio Channels lists the audio channels that are related to the
signal name.
