Record Panel Controls

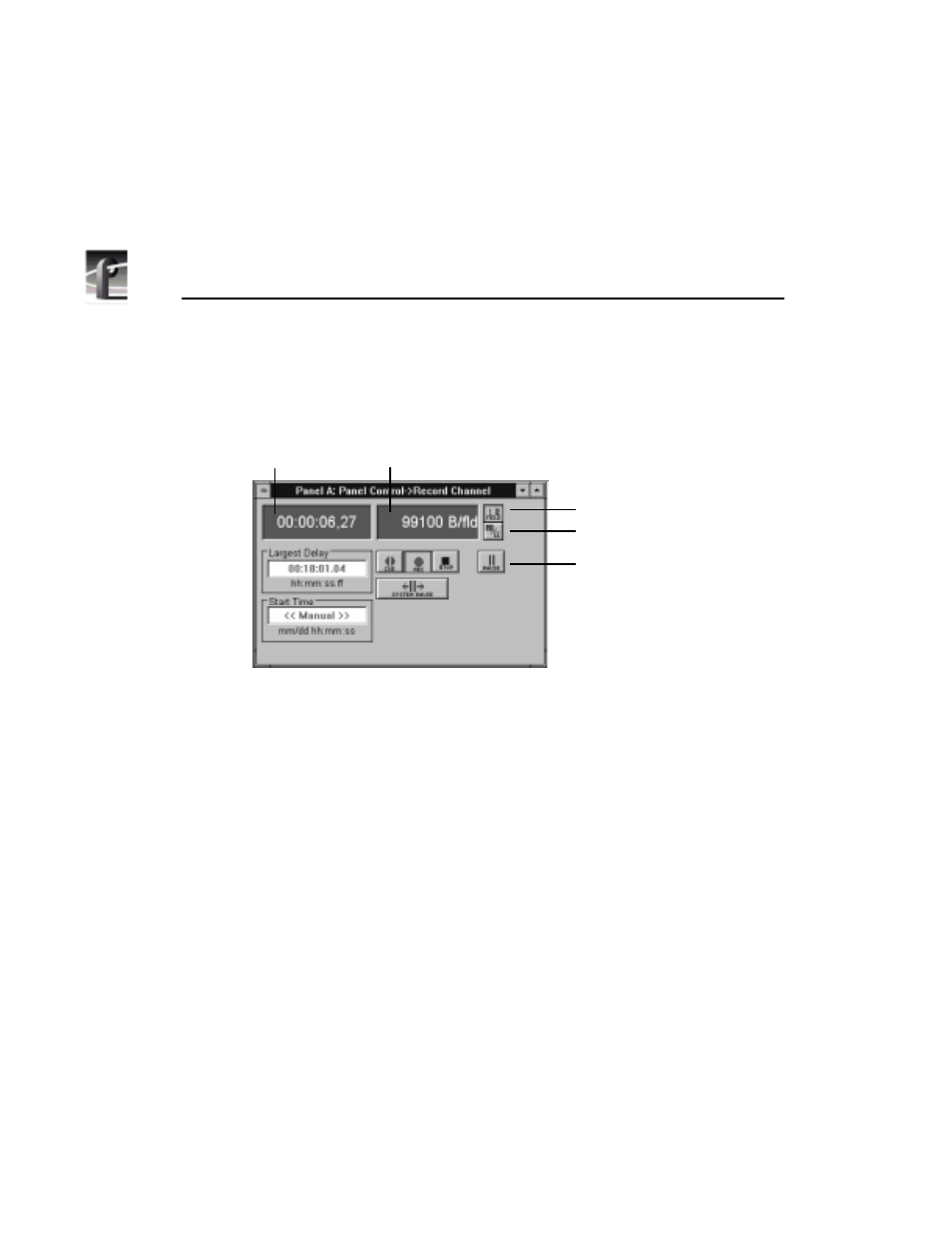

Figure 136 illustrates the controls on a Record panel.
Figure 136. Record panel controls
1. Timecode displays the current timecode of the clip being recorded.
2. Bytes/Field displays the current compression rate applied to the frames in
the clip. The target compression rate is set through Controller | Configure . If
this number does not change when Rec is clicked, no video signal is present.
Verify the cables and connections are correct on the disk recorder. Verify the
Video Crosspoints are set correctly. Refer toSee “Setting up the Signal
Routing” on page 270.
3. Field Selection toggles between one field or two fields when playing back
still frames. For one field, each line in field is duplicated to form a frame.
4. Playback or E to E toggles between Playback (viewing the video input
after it is recorded) and E to E (viewing the video input directly).
7.Control Buttons
2. Bytes/Field 1. timecode
5. Largest Delay
6. Start Time
3. Field Selection
4. Playback/E to E
