Selecting video quality and crosspoints
23 July 2004 Profile XP System Guide 131
Selecting video quality and crosspoints
You’ll need to select which video inputs and outputs you want a channel to use as well
as the video quality for channels that can record.

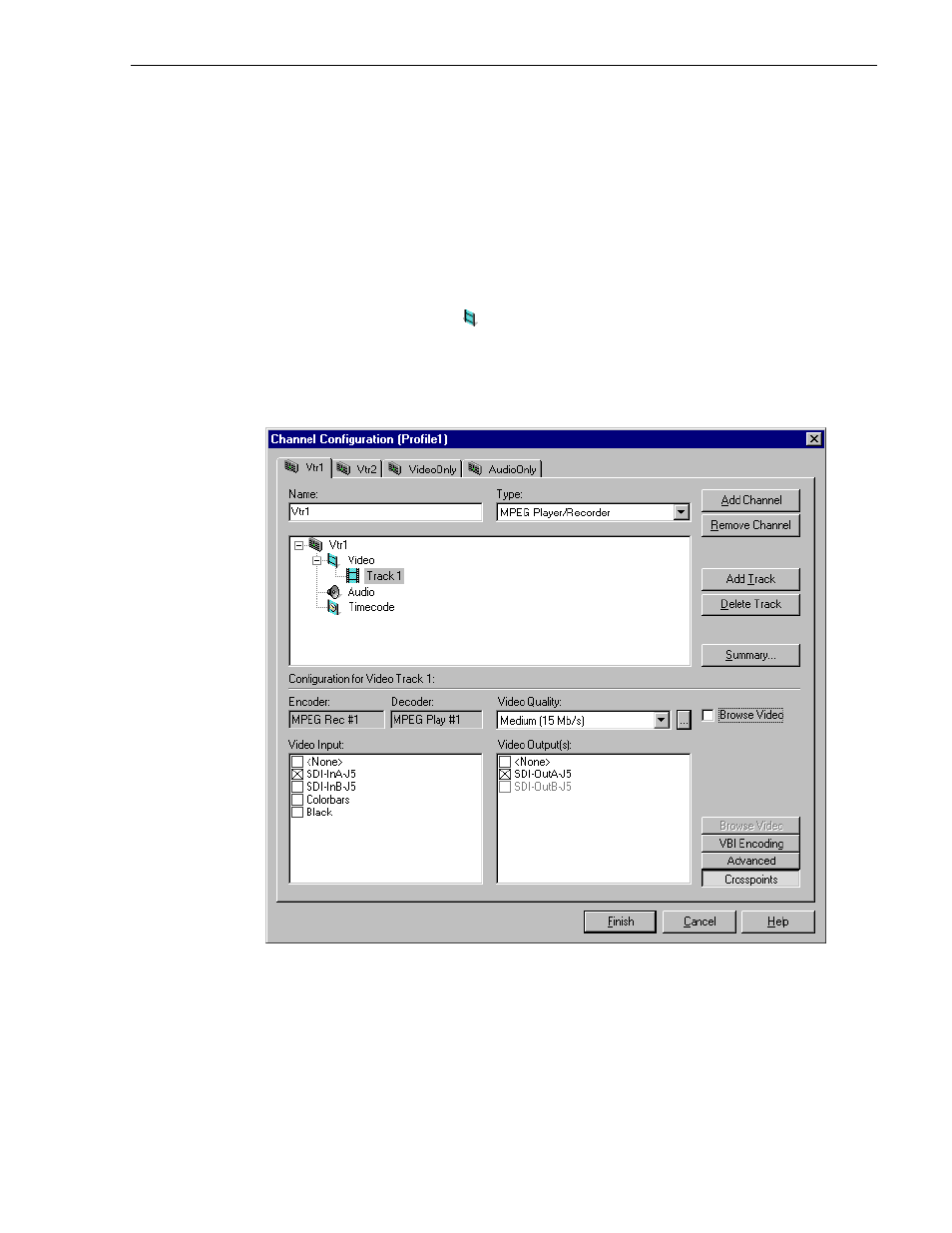

The Channel Configuration dialog box allocates all available outputs so that you can
monitor your crosspoint selections. The black video input, available only as an SD input,
can be used to verify video output routing.
To select input and output resources for each video track:
1. Double-click the video icon ( ) to expand the configuration tree.
2. Choose a video track in the configuration tree, such as Track 1 .
3. Click the Crosspoints button, then select a video input from the Video Input check
boxes. You can choose only one video input for a video track.
4. With the video Crosspoints button still selected, choose a video output from the
Video Output(s) list. You can choose one or more video outputs for a video track.
Each output corresponds to one of the video output connectors on the back of the
Profile XP system.
NOTE: You can temporarily select the internal colorbars (only with SD) to verify
crosspoint routing. Play channels in E to E mode will display colorbars if selected.
