Chapter 5 Modifying a Channel: Video Settings
186 Profile XP System Guide 23 July 2004
Enabling or disabling NTSC pedestal
When the Profile XP system is configured in the 525/60 standard, the Video Monitor
board generates NTSC signals. You can select whether or not the NTSC output includes
the 7.5 IRE pedestal. Use NTSC with Pedestal if your video monitors were calibrated
using signals with 7.5 IRE setup.
To enable or disable NTSC pedestal:

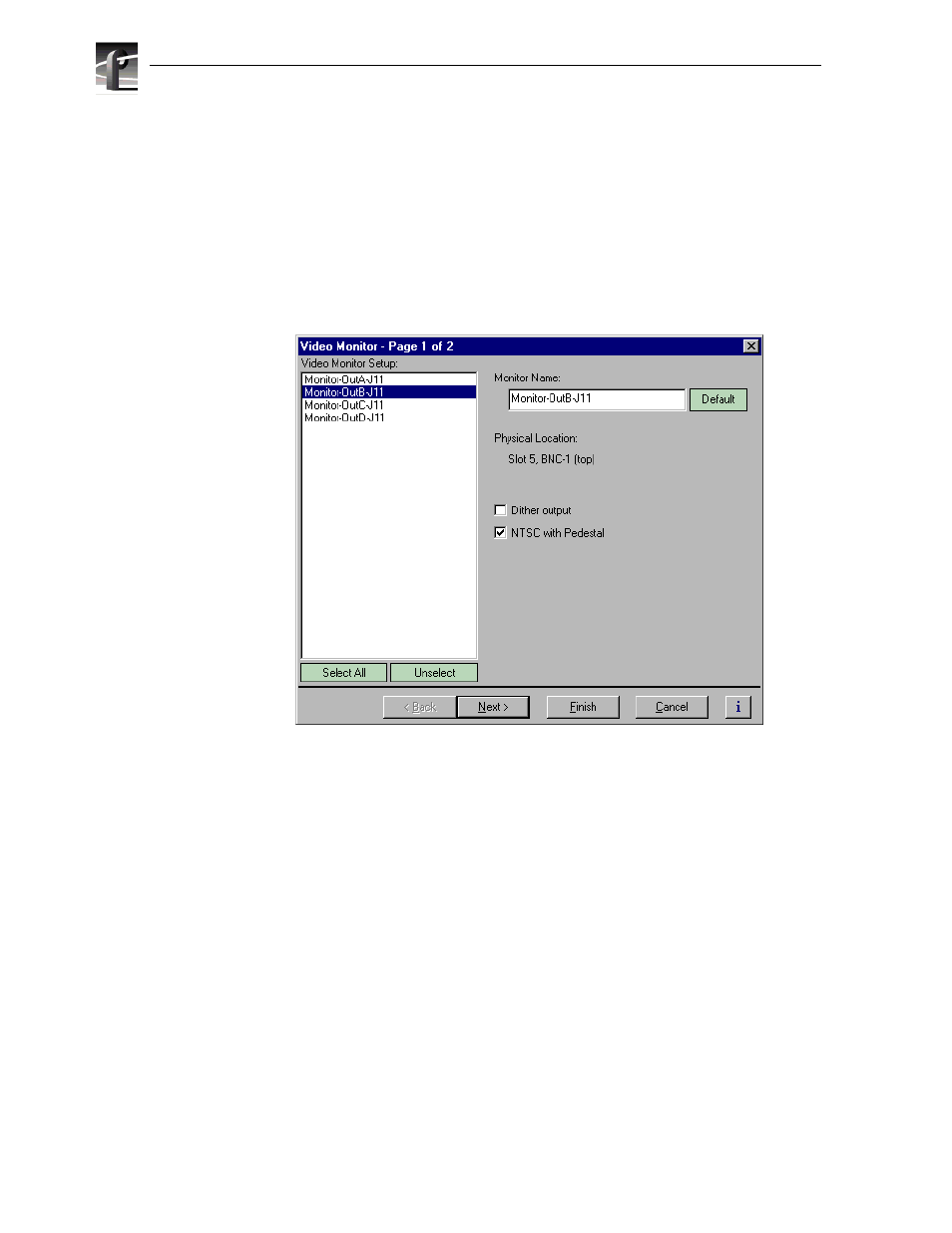

1. Select Video Monitor in the Configuration Manager window. Page 1 for the Video
Monitor dialog box appears.
2. Choose a monitor output in the Video Monitor Setup list, or click Select All .
3. Use the check box to enable or disable the 7.5 IRE pedestal as required.
4. Click Finish to save your settings.
