Power-off and connect proper Ethernet cabling
23 July 2004 Profile XP System Guide 283
Power-off and connect proper Ethernet cabling

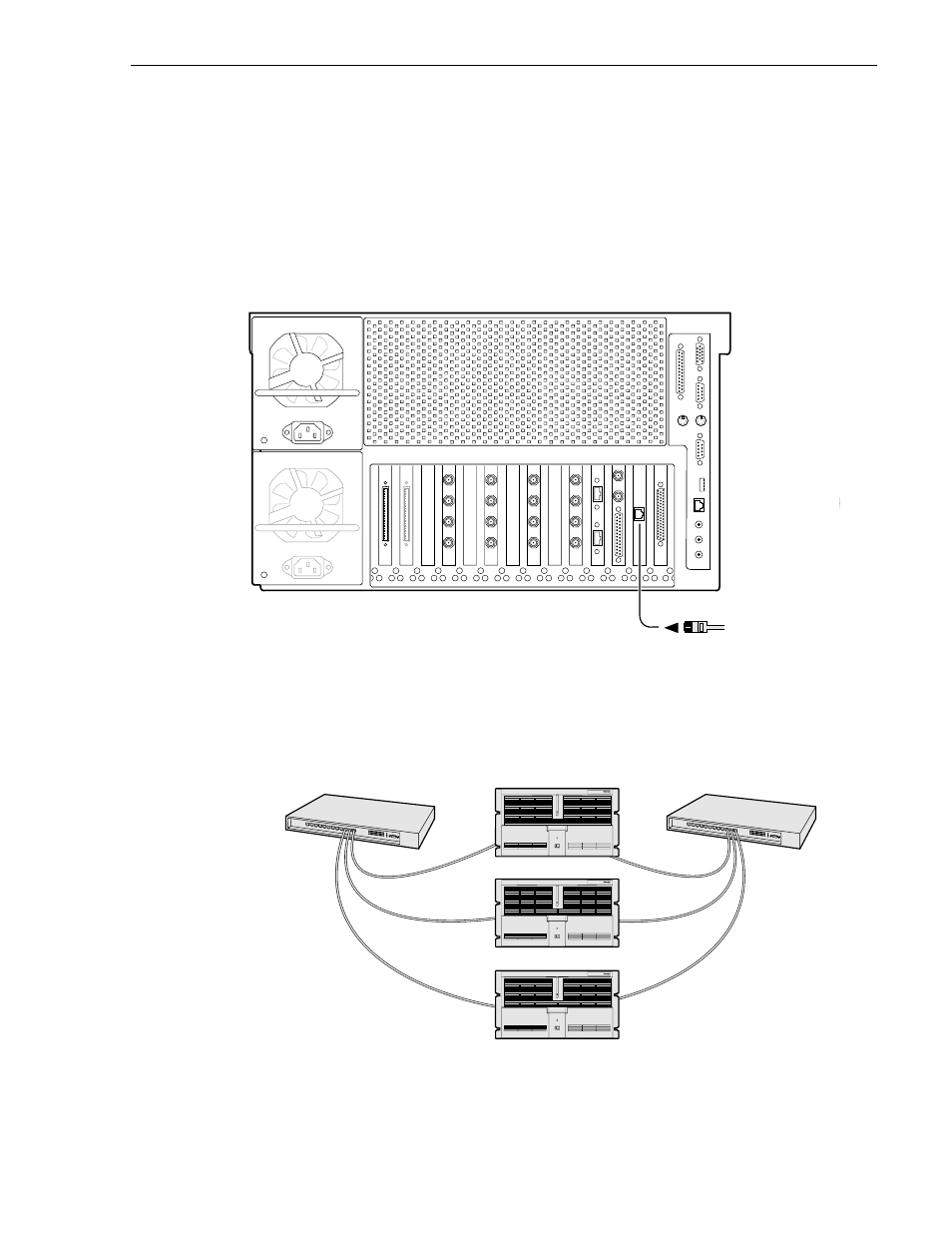

The Ethernet interface connector for the video network is located on the rear panel as
shown. The video network option provides a standard RJ-45 connector.
Ethernet cables were provided with your Profile XP system. If these cables are not used,
be sure to refer to Appendix B, “Connector Pin-outs” for cabling specifications and
pinouts.
You can connect your Profile XP systems together using an Ethernet hub or switch. An
Ethernet hub is used in most simple Ethernet networks. A switch is required for
multicasting.
0624-37
Profile XP Media Platform
From Ethernet
network hub or
switch.
0624-13
Profile1
Profile2
Profile3 Windows NT
Network
Video Network
Ethernet Hub
or Switch
Ethernet Hub
or Switch
