Adjusting audio delay
23 July 2004 Profile XP System Guide 205
Adjusting audio delay
You can adjust the fixed audio delay through the Profile XP system in order to meet
system requirements. Audio delay adjustment range is from 0 to 2 fields. Adjust audio
delay by selecting an audio delay preset or by selecting custom and entering the number
of audio samples of delay between 0 and 2 fields.
Selecting audio delay presets
To select fixed audio delay:

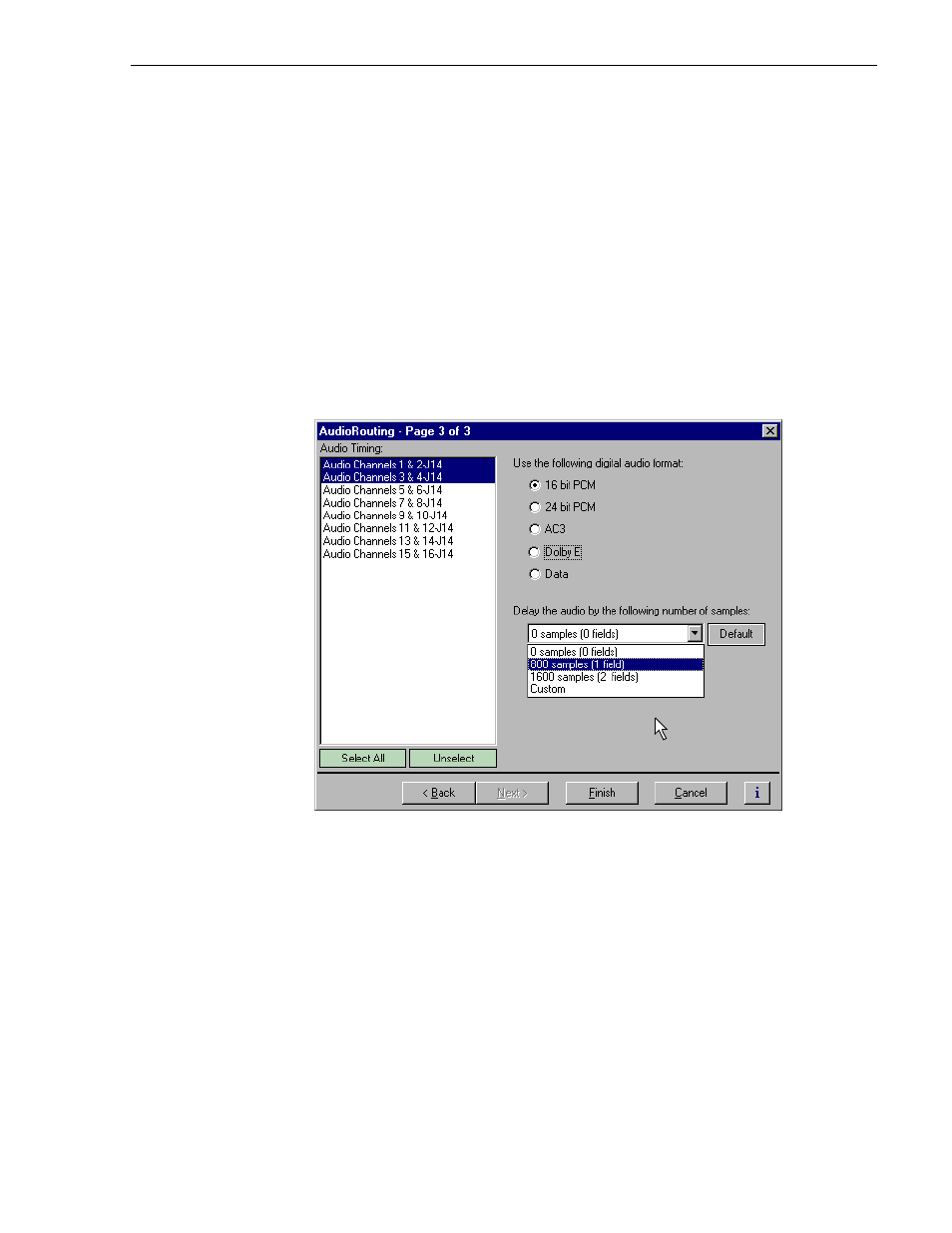

1. Select Audio Routing in the Configuration Manager window. The Audio Routing
dialog box appears.
2. Click Next to navigate to Audio Routing page 3.
3. Select an audio pair from the list, or click Select All .
4. Select a fixed audio delay preset using the drop-down list.
Audio presets shown are for the 525 video standard. Presets for 625 video standard
are 0 samples (0 fields), 960 samples (1 field), and 1020 samples (2 fields).
5. Click Finish to save your settings.
