Chapter B
320 Profile XP System Guide 23 July 2004

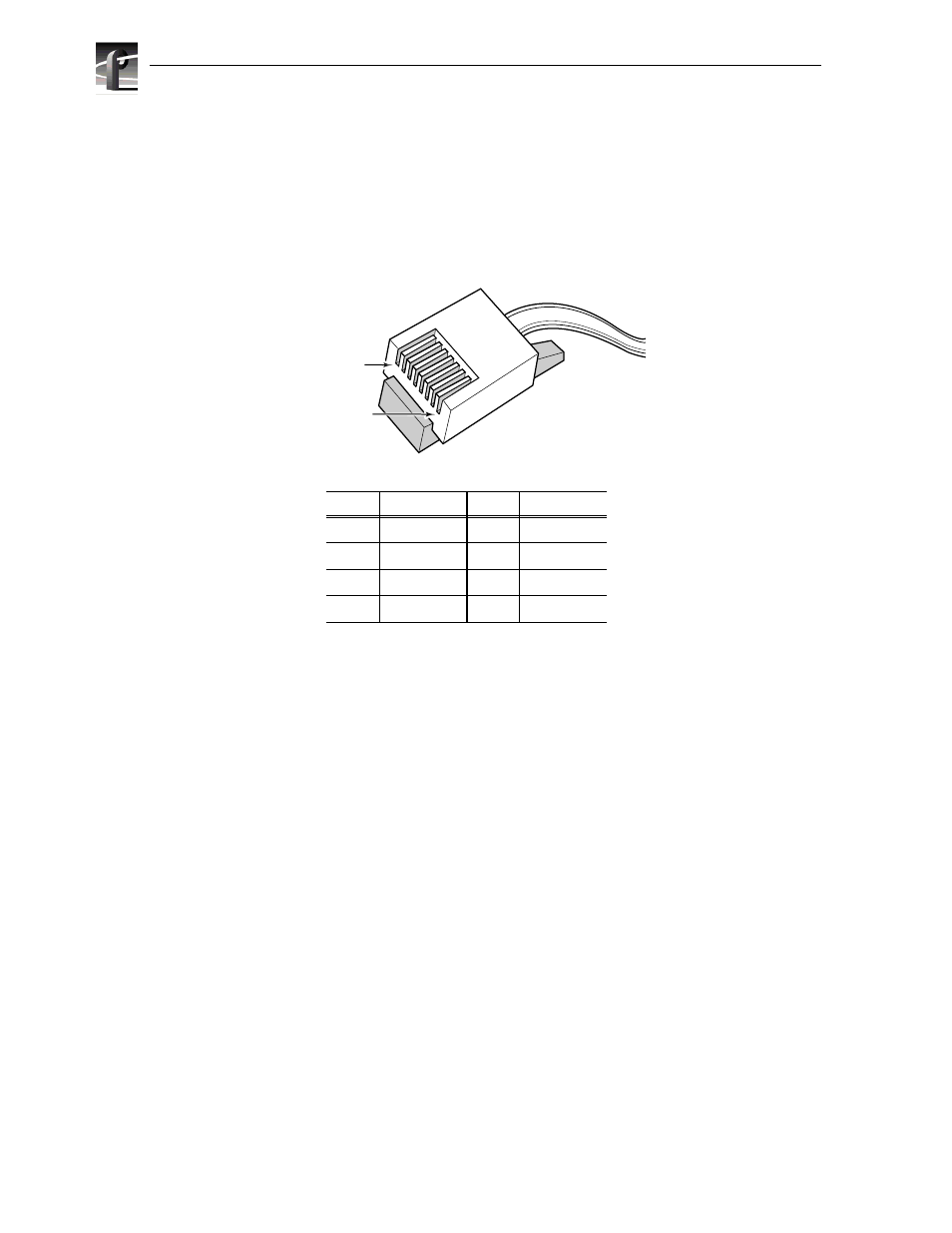

RJ-45 Ethernet connector
The Profile XP has a Ethernet connector for Windows NT networking and another
Ethernet connector on the optional Ethernet board for video networking. Both are 8-pin
RJ-45 snap-in telephone-type connectors. Use Category 5 unshielded twisted pair cable.
The pin-outs for both connectors are the same.
Pin # Signal Pin # Signal
1 Transmit + 5 not used
2 Transmit - 6 Receive -
3 Receive + 7 not used
4 not used 8 not used
9676-18
Pin 8
Pin 1
8
7
6
5
4
3
2
1
