Ancillary Data insertion
23 July 2004 Profile XP System Guide 179
Ancillary Data insertion
You can select the lines on which you insert Ancillary Data for each output. On standard
definition, you can also chose to insert VITC on the desired lines of the output
To insert ancillary data in the vertical interval:
1. Choose Video Output in the Configuration Manager Window. The Video Output
dialog box appears.

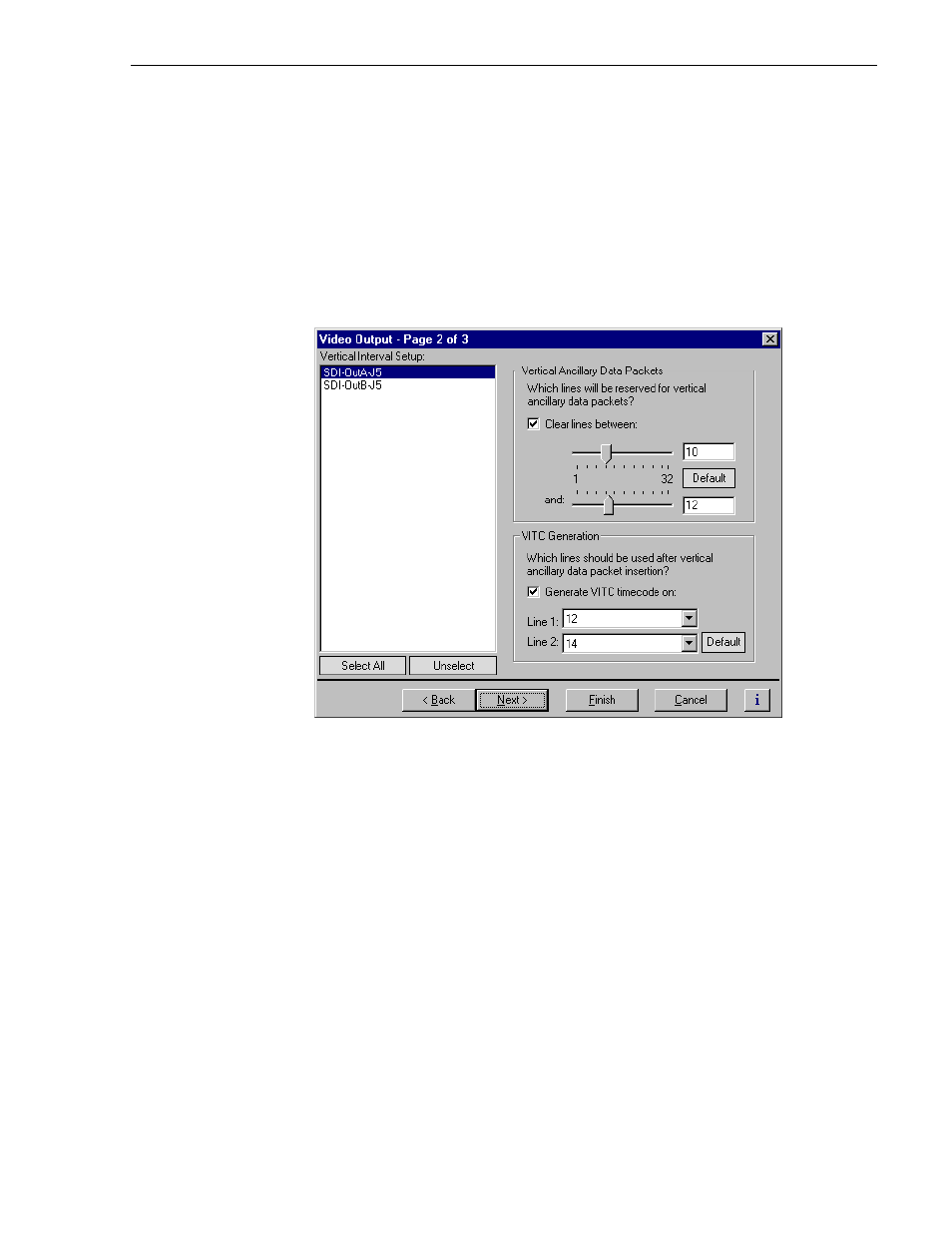

2. Click Next to navigate to Video Output page 2 of 3.
3. Select a video output from the list or click Select All to configure all the video
outputs at the same time.
4. Perform one of the following:
- If you do not want to insert any ancillary data, clear the Clear lines between
check box.
- If you want to insert ancillary data in the vertical interval, select the Clear lines
between check box, then select the starting and ending lines numbers using the
sliders.
