Chapter 10 Controlling the Profile XP Remotely
252 Profile XP System Guide 23 July 2004
Overview of the Prolink communications window

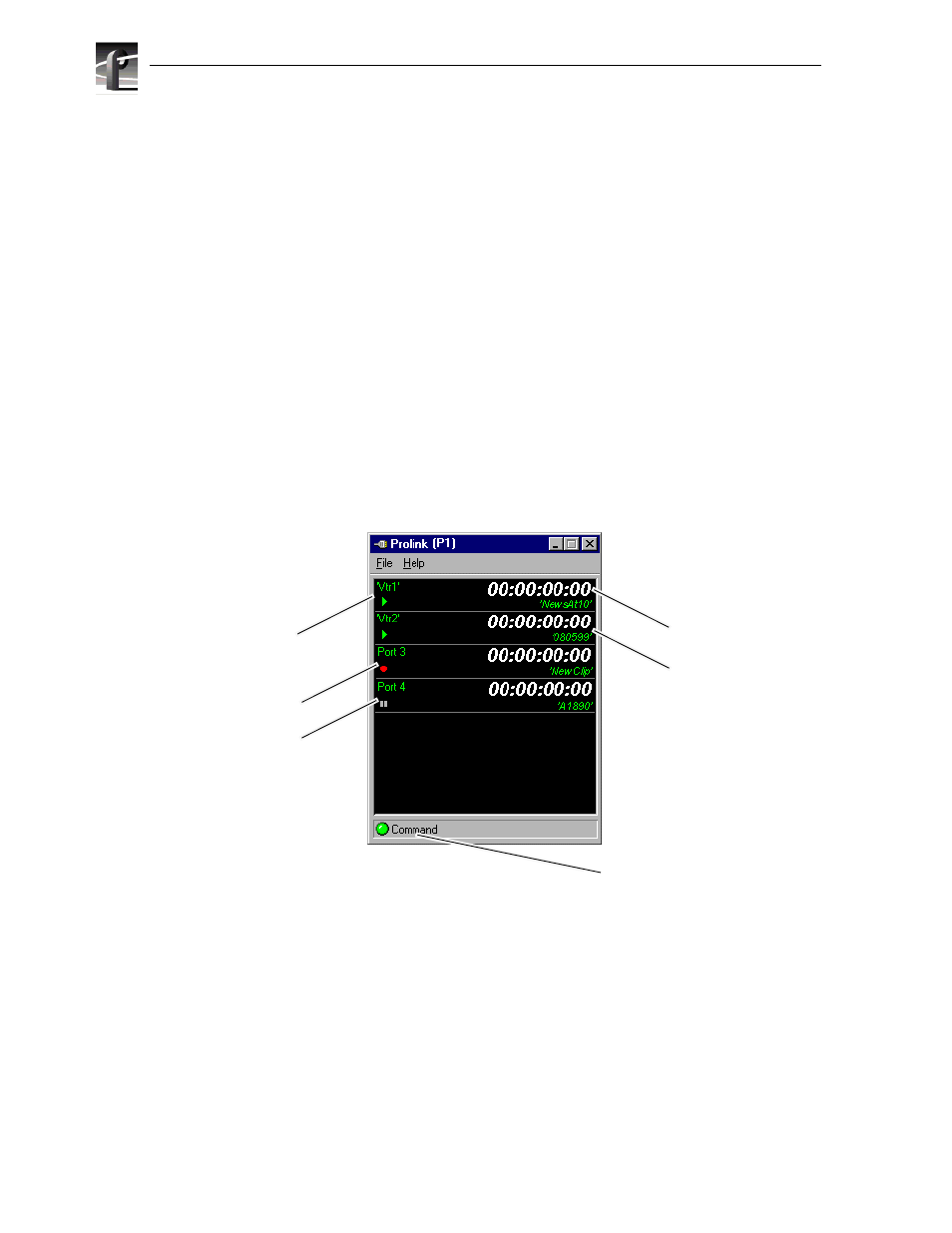

The Prolink communications window is used to display information about the status of
Profile XP system under control.
Status information displayed in the Prolink windows includes:
➊
Channel Name - A channel name is displayed when the controller or control
application acquires channel resources using a predefined channel created in Profile
Configuration Manager.
➋
Connection Number - A port number is displayed when the controller or control
application acquires channel resources using the Profile API rather than using
channels created in Profile Configuration Manager.
➌
Channel or Port Status - indicates transport status such as play, record, or idle.
➍
Frame Count - indicates the frame count of the current frame.
➎
Clip Name - shows the name of the clip currently loaded.
➏
Communications Port Status - indicates activity on the RS-422 port.
