Chapter B
326 Profile XP System Guide 23 July 2004

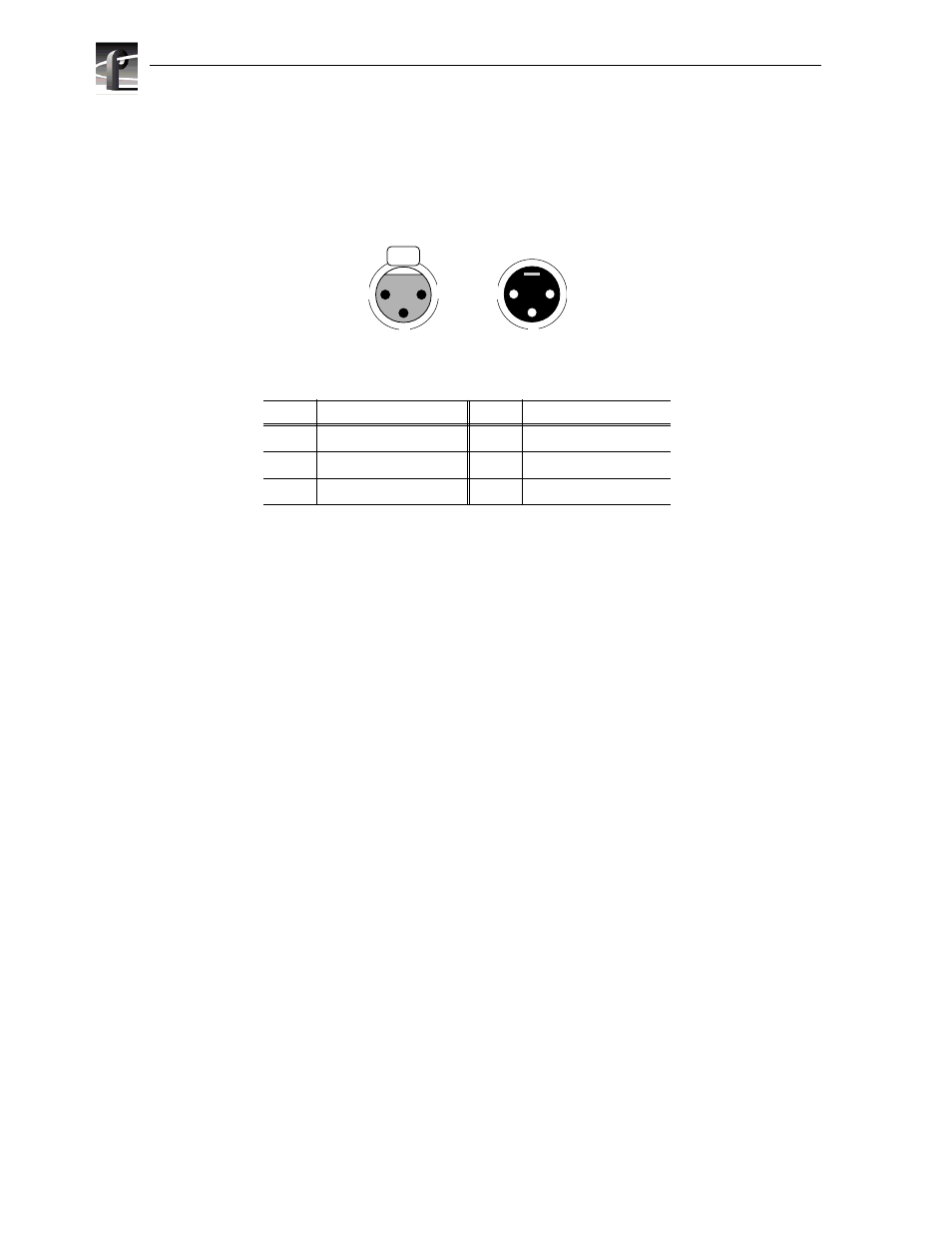

I/O Panel LTC connectors
The I/O Panel provides four female XLR connectors for LTC In and four male XLR
connectors for LTC Out.
Pin # LTC In Pin # LTC Out
1 Signal Ground 1 Signal Ground
2 (+) 2 (+)
3 (-) 3 (-)
0624-9
Push
1
3
2 2
3
1
LTC Out
Connector
(male) LTC In
Connector
(female)
