Selecting the video I/Os used by a channel
23 July 2004 Profile XP System Guide 157
Selecting the video I/Os used by a channel
You can use the Channel Configuration dialog box to change the video input and outputs
used by a channel.
To change video input and output used by a channel:

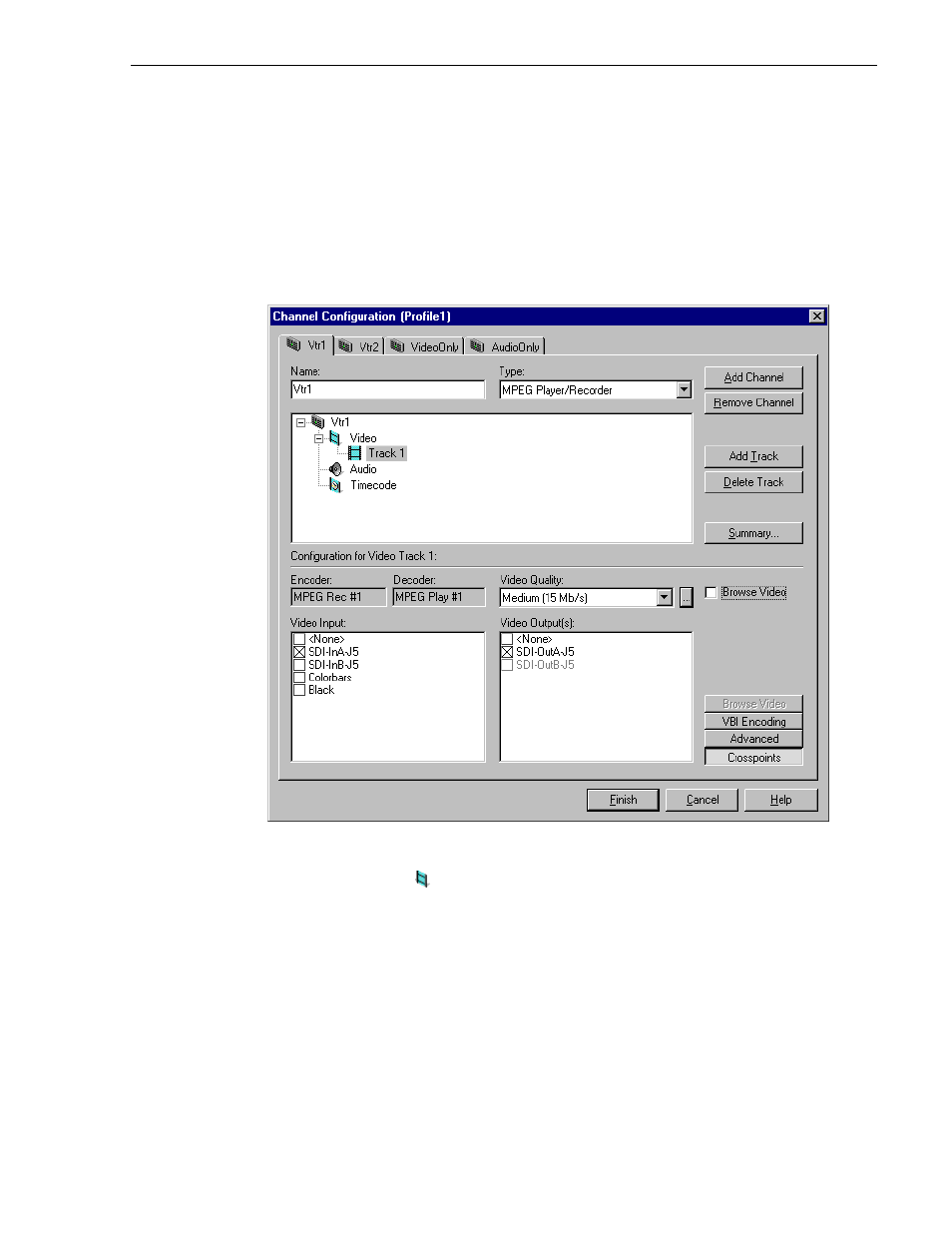

1. Choose Channel Configuration in the Configuration Manager window. The
Channel Configuration dialog box appears.
2. Click the tab for the channel you want to modify.
3. Click the Video icon ( ), then click the video track you want to modify.
4. Click the Crosspoints button, then select the video input and video outputs you
want to use. For SDTI channels, click the Stream Setup button and select the input/
output for the channel.
For information on why resources appear dimmed, red, or “in use”, refer to “Why
resources appear dimmed, red, or in use” on page 122.
5. Click Finish to save your changes and close the Channel Configuration dialog box.
NOTE: If the channel is currently in use by an application, it must be reselected
within the application before your changes will take effect. Refer to the user manual
for the Profile application you are using.
