Grass Valley Profile XP Aug 16 2004 - Manual (Page 333)

Rack mount hardware shipped with the Profile XP system
23 July 2004 Profile XP System Guide 333

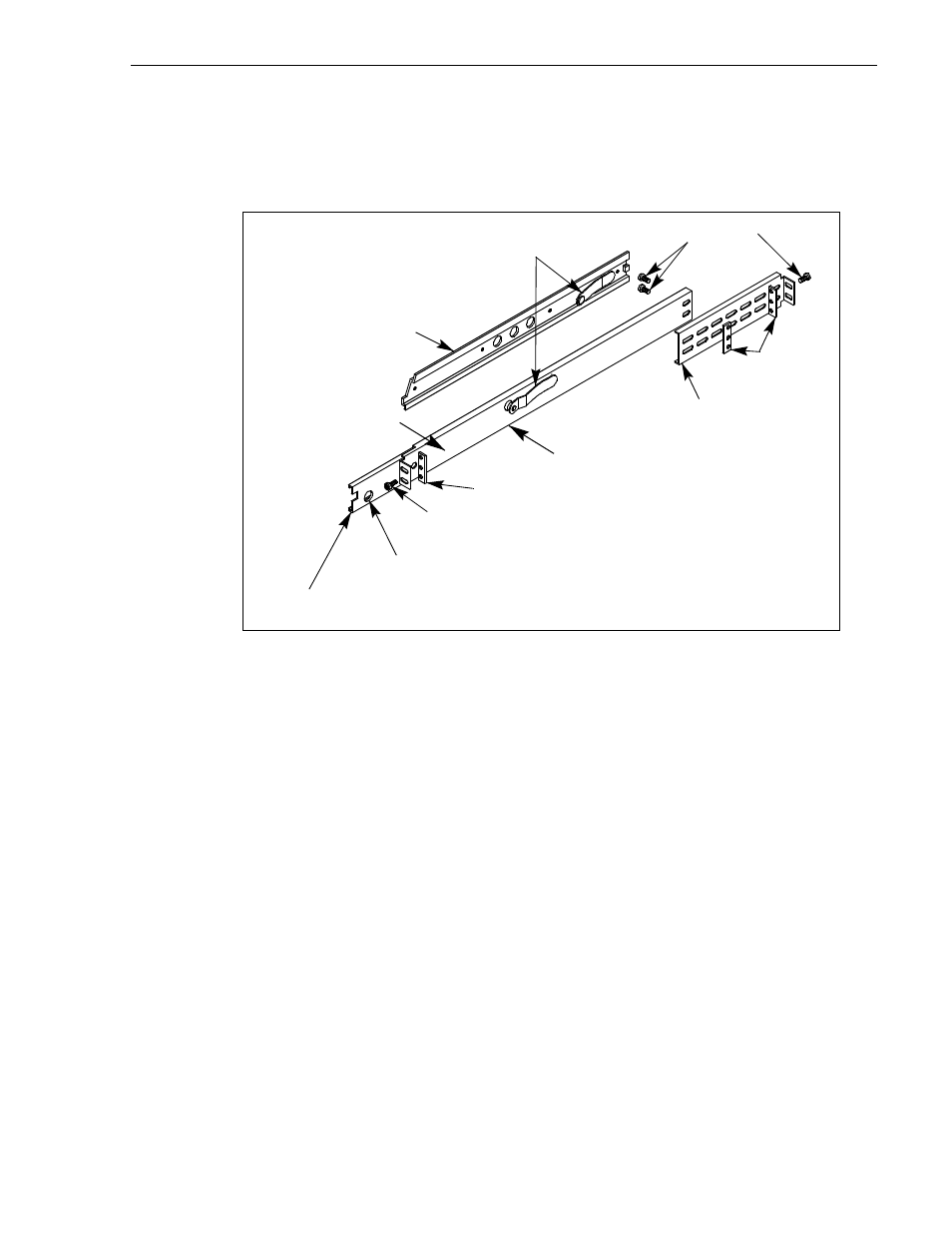

Rack mount hardware shipped with the Profile XP system
Your Profile XP comes with rack mounting hardware as shown. The Profile XP and
PAC216 are shipped with the chassis sections already attached.
Rack mounting Fibre Channel RAID systems
To rack mount these storage systems, refer to the rack mounting information in the
PFC500, PFR 500, or PFR600 Instruction Manuals.
Chassis section pre-installed
Automatic
Rack
Section
10-32 PHS
10-32 PHS
Flat
Nut
Flat Nut Bar
Intermediate
Stop Latch
Rear
NOTE: Right-hand and left-hand stationary section is designated by the
RH and the LH marked on the rails. Stop latch holes should be towards
Stationary
