Grass Valley Profile XP Aug 16 2004 - Manual (Page 220)

Chapter 7 Modifying a Channel: Timecode Settings
220 Profile XP System Guide 23 July 2004

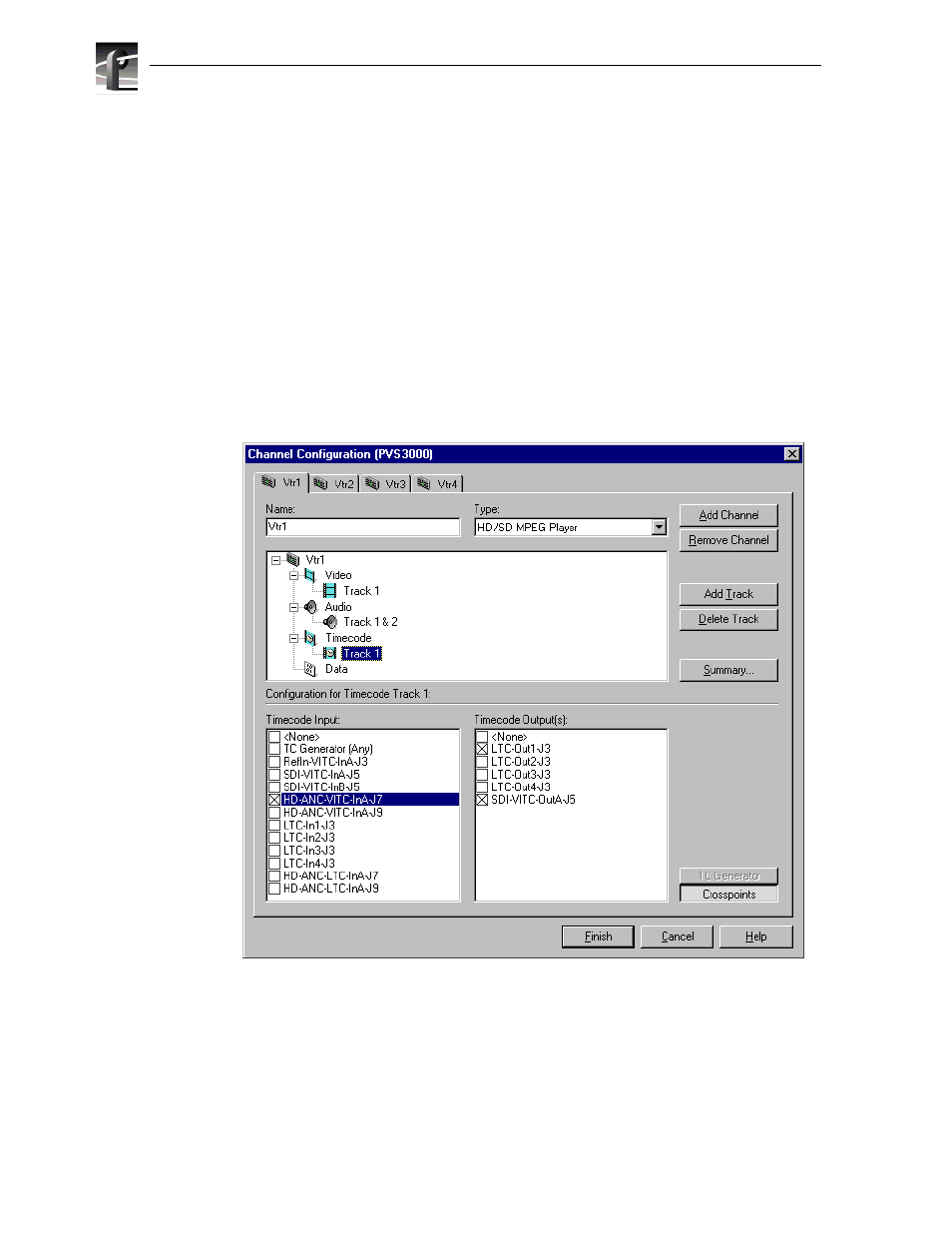

Recording timecode from ancillary data
If your video source contains ancillary data, you can extract the timecode information
from the ancillary data and record it on the timecode track for subsequent playout. The
timecode data remains part of the ancillary data, and is also recorded as data if you set
up a data track.
To record timecode from timecode ancillary data:
1. Select Channel Configuration in the Configuration Manager window.
2. Click the tab for the channel you want to configure.
3. Click on a timecode track in the configuration tree or click Add Track to add a new
one.
4. Click the Crosspoints button, then select the video source containing the ancillary
data in the Timecode Input list.
5. Click Finish to save your settings and close the Channel Configuration dialog box.
