6.2.2
6.2.2.1
( 1 ) Removal
(a) that AC input power is not supplied [the
SOURCE indication lamp (green ) of the power unit
is off], then pull out cables connected to CNA,
CNB, CNC, CN1, and CN2.
(b) Loosen the mounting screws in the figure and
●
remove model from the control panel.
(2) Installation

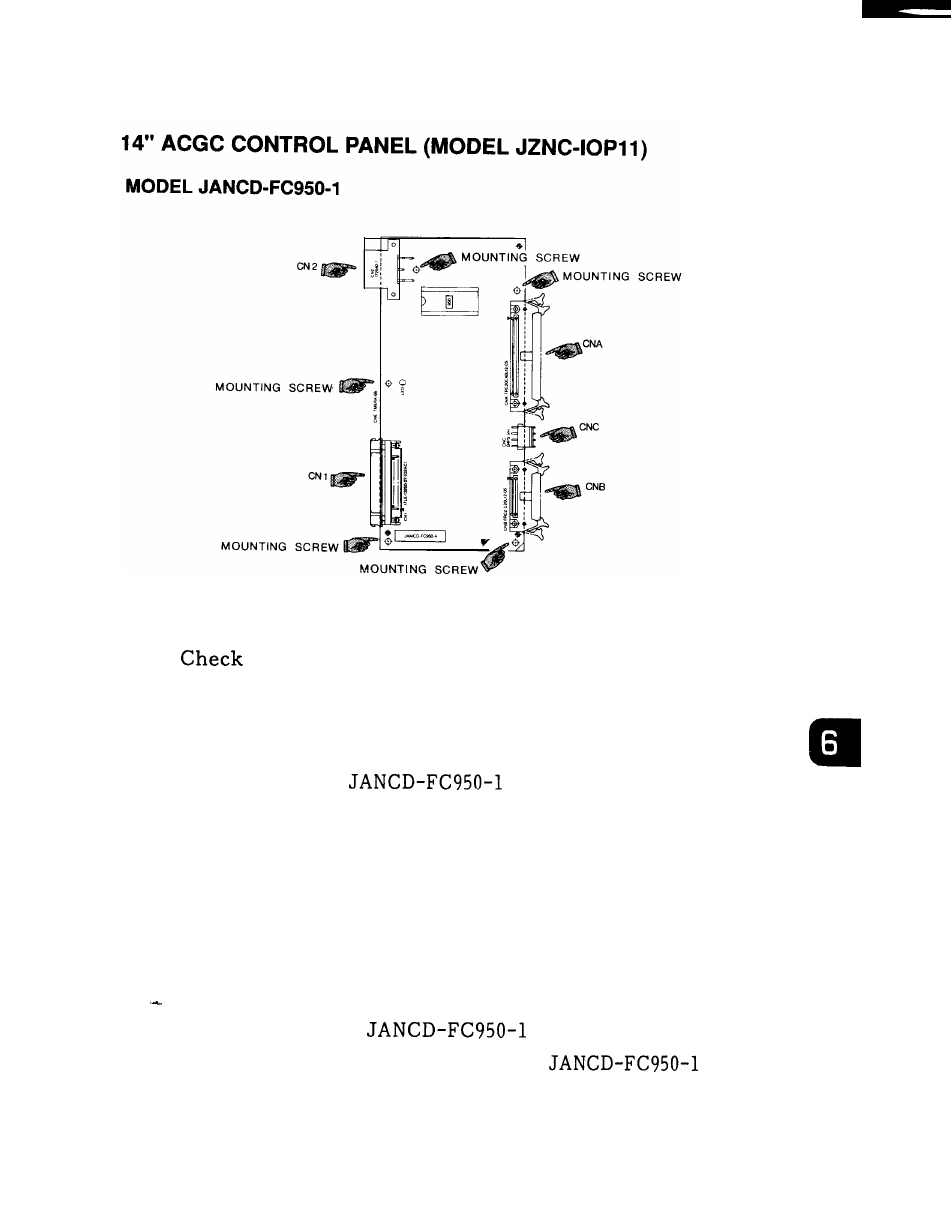

See the figure for the exterior of the module.
( a )
( b )
( c )
( d )
Check the model and REV number of the replacement
module for consistency.
Check that the ROM number and label contents of
the replacement module are the same as those of the
module to be replaced.
Install model on the control panel.
Insert all the cables of model to the
origin al positions.
