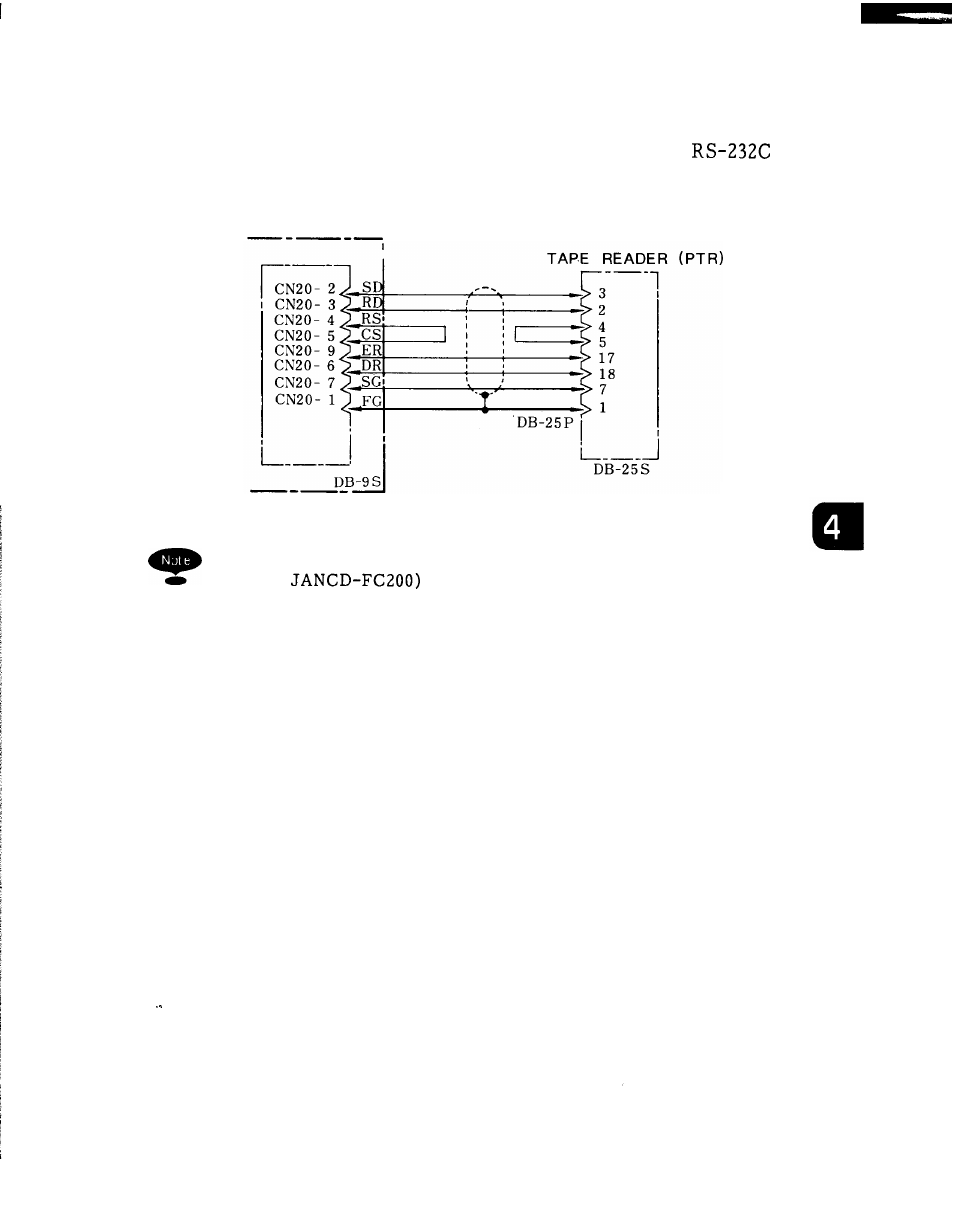

Fig. 4.8 shows connection example of standard
tape reader.
JANCD-FC200
DB-9P
Keep cable length from tape reader to main board
(model
less than 3m. Contact your
YASKAWA representative in advance if it is
necessary to exceed 3m.
F i g . 4 . 8
E x a m p l e o f 1 s t R S - 2 3 2 C I n t e r f a c e
