Data Devices
The DCT5100 provides optional high-speed data services such as Internet access, USB,
Ethernet, and more.
The functionality of each data device port requires, and depends on, installed application
software.
Rear Panel Connections
The DCT5100 rear panel includes a USB port and an Ethernet network interface. The following
optional connections are also available:
HPNA RJ-11 interface
IEEE 1394
The interface connections illustrated in Figure 3-10 are samples of the types of data devices that
can be interfaced through the DCT5100 rear panel:

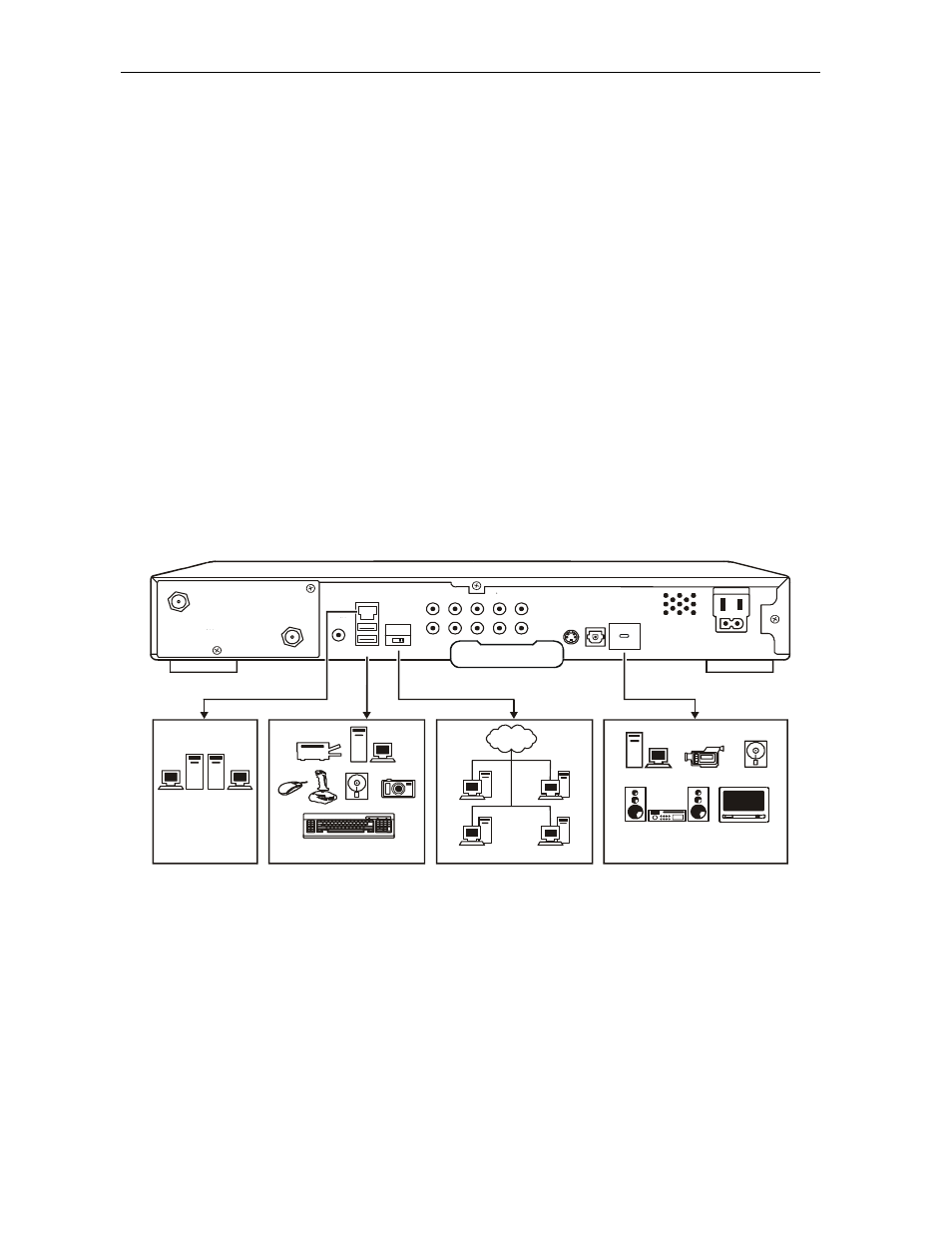

Figure 3-10
Data Devices – Rear Panel
DCT5100
ETHERNET
USB
HPNA
AUDIO IN
AUDIO
OUT
VIDEO
IR
R IN
R
L OUT
S-VIDEO
IEEE 1394
OPTICAL
SPDIF
SPDIF
L Y Pb Pr
TV
Pass Card
SWITCHED
105-125V
60Hz
4A MAX
500W MAX
CONVENIENCE
OUTLET
TO
TV/VCR
CABLE
IN
Home Ethernet
Network “Firewire” 1394 equipped devices
HDTV
USB devices HomePNA
Internet
Ethernet RJ-45 Network Interface
The DCT5100 includes an Ethernet 10Base-T port that can be used to support home networking
of the DCT5100.
HPNA RJ-11 Interface (optional)
The optional HPNA connector enables you to connect your DCT5100 to computers within your
home using existing telephone lines.
