d01 General Status
The GENERAL STATUS diagnostic provides system status information that displays on the
OSD and LED. The information is updated each time the diagnostic is accessed. Table 4-2
illustrates the GENERAL STATUS OSD:
Table 4-2
GENERAL STATUS - OSD
GENERAL STATUS
ERROR: E 00 DISCONNECTED
PLATFORM ID: 0256
FAMILY ID: 0000
MODEL ID: 0087
REMOD CHANNEL:
SETTOP TIME:
3
xxxxxxxxxx GPS

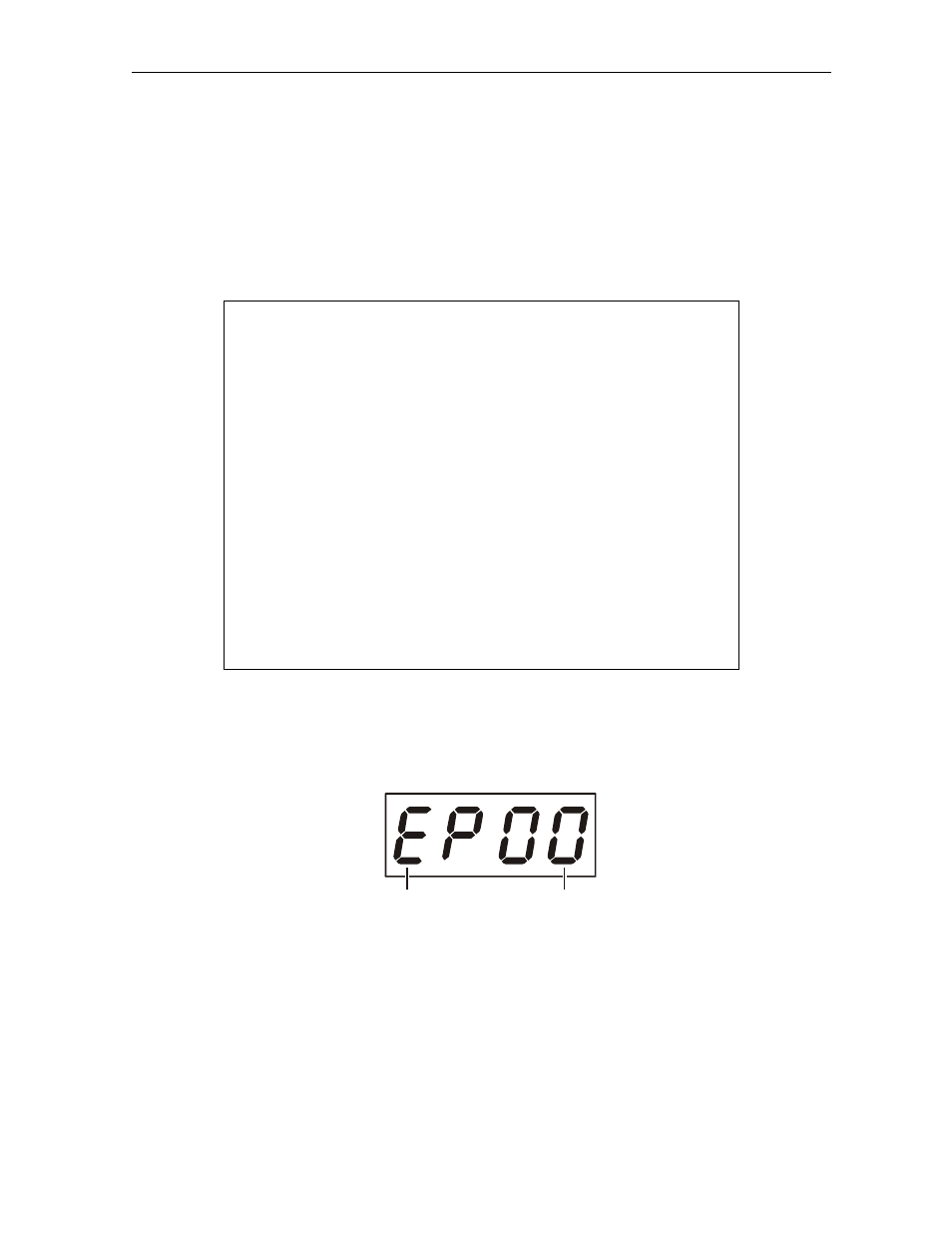

Figure 4-2 is an example of a GENERAL STATUS diagnostic LED:
Figure 4-2
General status - LED
MUTE MUTE
P
Environment
code
Error
code
