17
10
If necessary, enable or disable [Reflect recommended
GP/CH], and then click [Finish].
[Channel Plan Adviser] closes.
If the [Reflect recommended GP/CH] checkbox is
selected, only the groups and channels recommended
by [Channel Plan Adviser] will be selectable on
Wireless Studio. The groups and channels
recommended by [Channel Plan Adviser] will be
displayed in the [Spectrum Analyzer] tab of the sub
window.
Pairing Receiver Channels and
Transmitters
To enable remote control of transmitters via wireless
remote control, each receiver channel must be paired with
a transmitter.
By using the pairing wizard in Wireless Studio to perform
this operation, you can perform pairing for multiple
channels with ease.
Perform pairing with the pairing wizard as follows.
1
Place a check mark next to [Online monitoring and
control] in the Device menu.
The system enters online mode, and the receivers,
battery chargers, and RMU-01 units are automatically
detected and added to the device list window.
2
Select [Device] menu > [Pairing wizard].

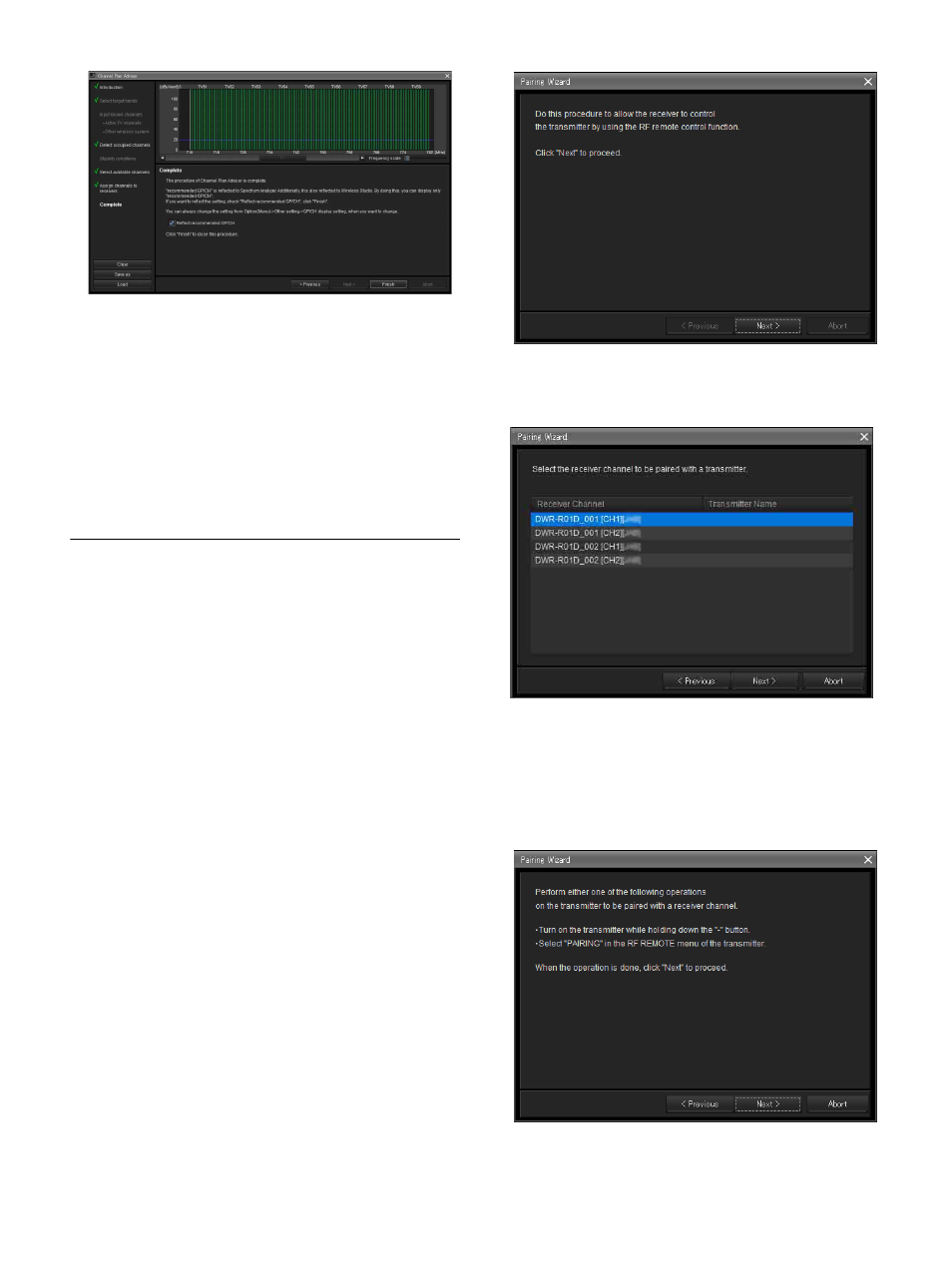

The following screen appears, and the pairing wizard
starts.
3
Click [Next >].
The following screen appears.
The receiver channels for all the receivers that appear
in the device list appear here.
4
Select the receiver channel for pairing, and click
[Next >].
The following screen appears.
