35
display these warning messages, change the lighting
conditions for the ALERT indicator in the alert function
settings of the [Property] window.
For details, see “[Property] Window” on page 45.

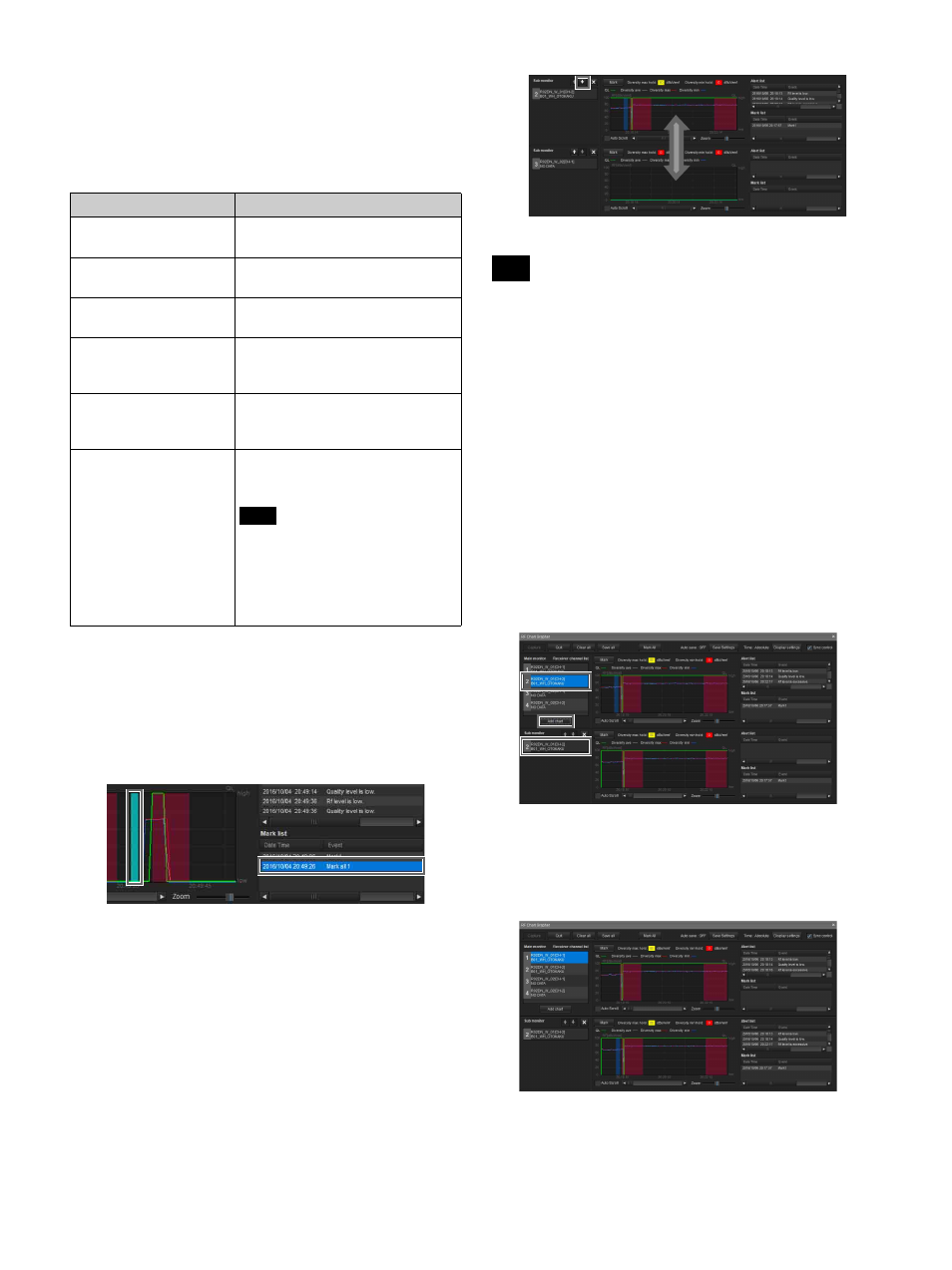

e Mark list
Displays the memos added during signal environment
monitoring.
When a memo is added to the graph, a portion of the graph
display area will be displayed in blue or green. When you
click the blue or green portion, the corresponding portion
in the mark list will be highlighted.
f Sub monitor area
Displays the name and various information of the receiver
channel specified in the main monitor area.
M and m buttons : When multiple receiver channels are
specified as sub monitor channels, pressing these buttons
switches the display position of the current sub monitor
with that of the sub monitor immediately above or below.
The display position cannot be switched with that of the
main monitor.
× button : Closes the sub monitor.
The functions of the other areas are identical to those of the
alert list and mark list.
Displaying multiple receiver channels
simultaneously
By specifying receiver channels as sub monitor channels,
you can view multiple receiver channels simultaneously.
Up to 11 sub monitor receiver channels can be specified.
To specify using the [Add chart] button
1
Select the receiver channel you want to specify as a
sub monitor channel in the main monitor area’s
receiver channel list, and click the [Add chart] button.
The selected receiver channel is displayed in a sub
monitor.
2
Select a different receiver channel in the main monitor
area’s receiver channel list.
The information of the selected receiver channel is
displayed in the right side of the main monitor area.
Message Meaning
Rf level is excessive. The signal reception level is
excessively high.
Rf level is low. The signal reception level has
dropped.
Quality level is low. The quality of received audio data
is deteriorated.
Communication time-
out occurred. The number of retries has
exceeded the limit and a timeout
error has occurred.
The process of
searching devices was
executed. Search processing is complete.
WirelessStudio was not
able to acquire data
before updating graph. RF data and QL data could not be
acquired within the graph update
cycle.
Note
Data is updated every second in
[RF Chart Grapher]. However, if
the processing load on the PC is
high or if network communication
is heavy, the data may not be
acquired.
Note
