18
5
Operate the transmitter for pairing to set it to pairing
mode, and click [Next >].

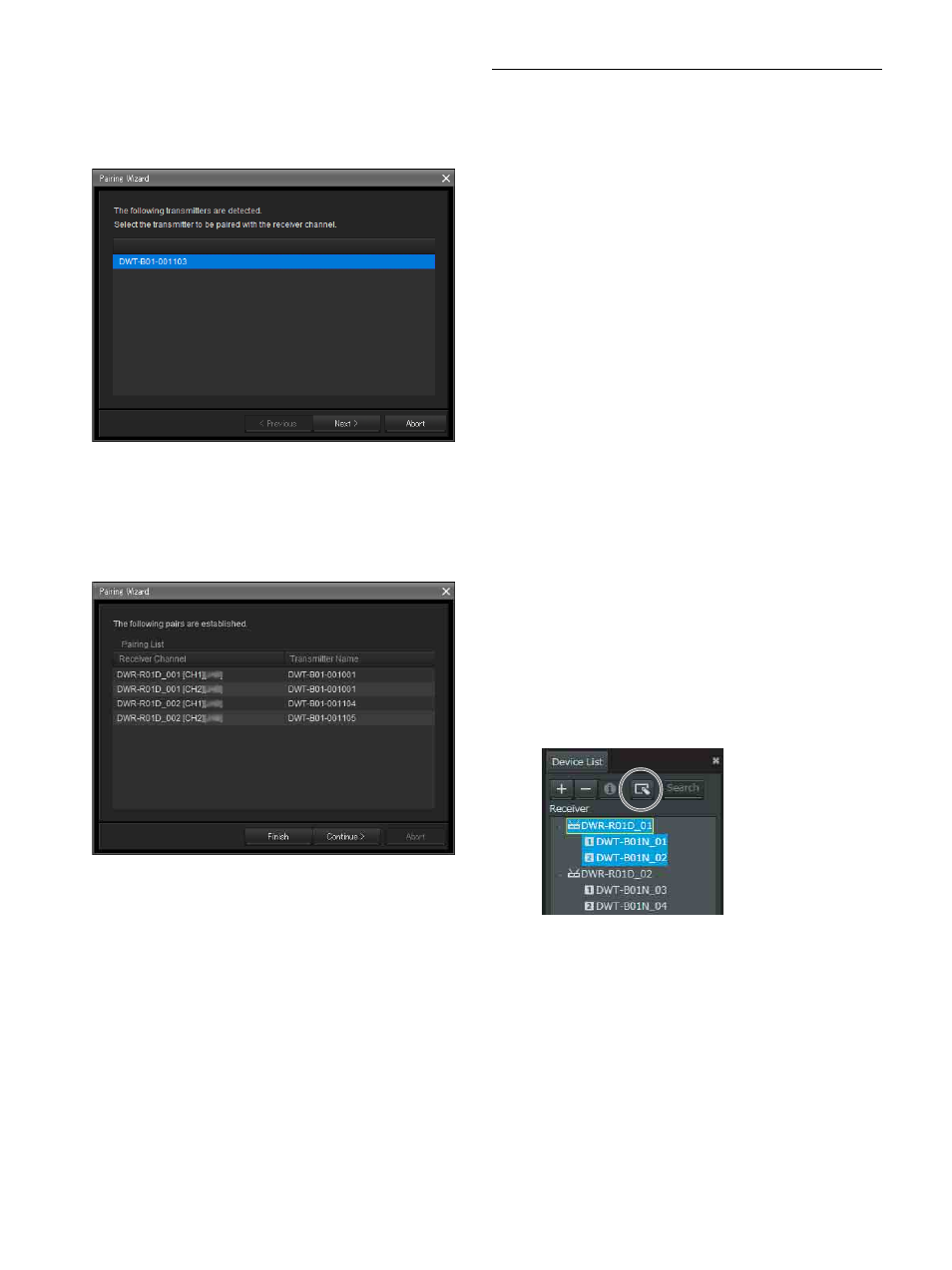

When the transmitter is detected, the following screen
appears.
6
Select the transmitter for pairing, and click [Next >].
Information regarding remote control is exchanged
between the receiver and the transmitter.
When the information exchange is complete, the
following screen appears.
The names of receiver channels and transmitters that
have already been paired appear here.
The [Transmitter Name] column to the right of the
receiver channels will be blank for receivers that have
not yet been paired.
If receiver channels that have not yet been paired exist,
click [Continue] and pair the channels by repeating the
above procedure from step 3.
7
When all necessary pairings are complete, click
[Finish].
The wizard closes.
The receiver channels and transmitters are now paired, and
remote control via wireless remote control is enabled.
Controlling Devices
You can control devices from the [Property] window and
the [Property List] tab of the sub window in Wireless
Studio.
The [Property] window displays information about the
selected receiver. You can configure settings in the
[Property] window while viewing the meter icons in the
upper part of the window.
The [Property List] tab of the sub window displays a list of
settings for the receiver channels and transmitters
displayed in the status viewer. You can configure settings
for multiple receiver channels and transmitters
simultaneously in the [Property List] tab.
Controlling devices from the [Property]
window
Perform the following to control devices from the
[Property] window.
1
Place a check mark next to [Online monitoring and
control] in the [Device] menu.
The system enters online mode, and the receivers are
automatically detected and added to the device list
window.
2
Perform one of the following to open the [Property]
window.
• Select a receiver or receiver channel in the device
list, and click the [Property] window button in the
upper part of the device list window.
• Right-click a receiver or receiver channel in the
device list, and select [Property] in the context menu
that appears.
