42
b Scan count setting
Continuous scan: After scanning starts, it is performed
continuously until the [Stop scan] button is clicked.
Specified count scan: After scanning starts, scanning is
performed the number of times specified in [Repeat
count].
c Other settings
Frequency Interval: Select from 125 kHz or 25 kHz as
the interval at which to scan.
[Peak hold]
Select whether to hold and display scanning result values
for each frequency.
ON: The highest RF level of a set of scanning sessions
(during [Continuous scan] or when [Repeat count] is set to
2 or higher for [Specified count scan]) is displayed in the
graph.
OFF: The most recent RF level of a set of scanning
sessions (during [Continuous scan] or when [Repeat
count] is set to 2 or higher for [Specified count scan]) is
displayed in the graph.
d Close button
Closes the [Scan parameter] window.

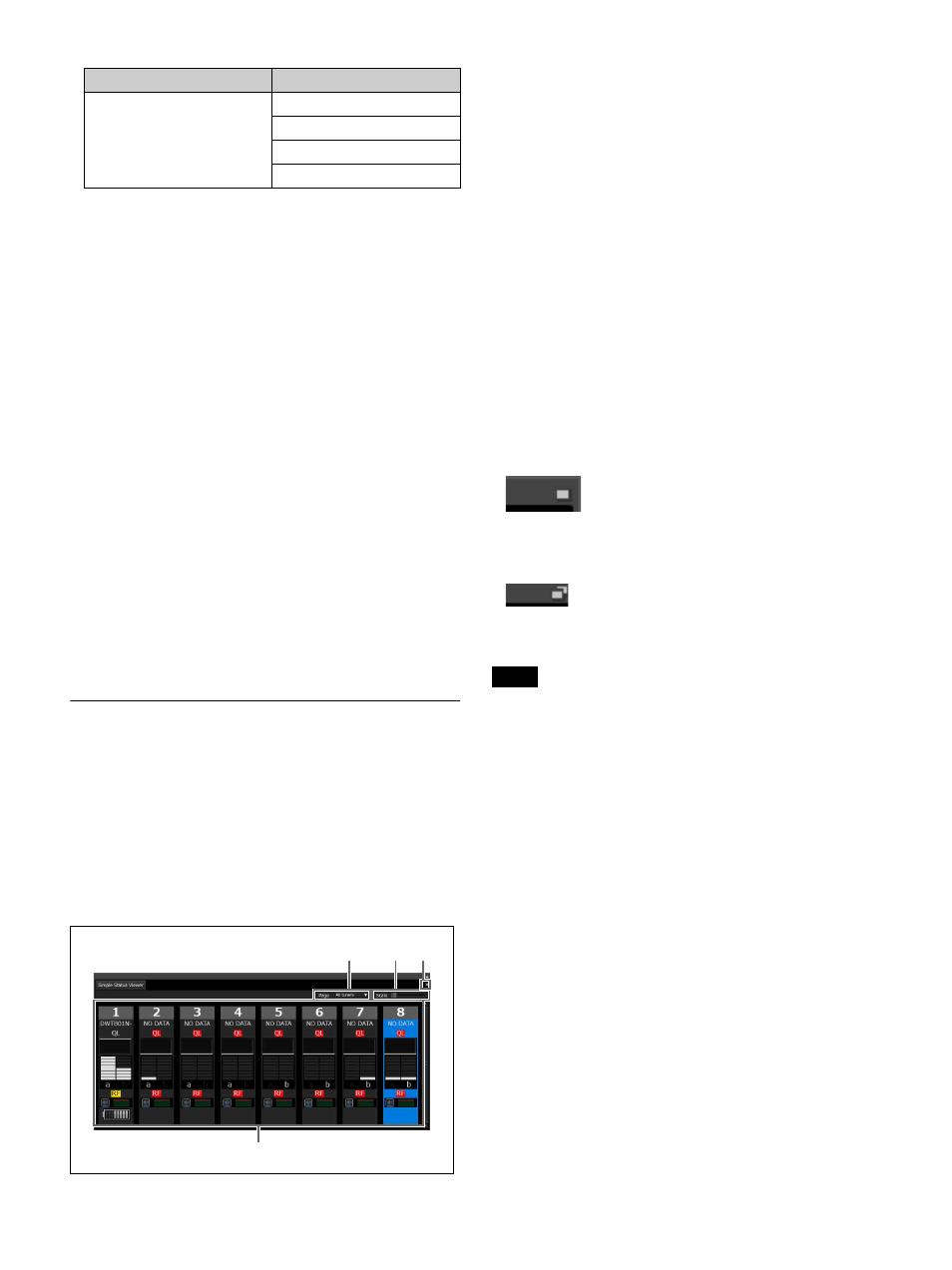

[Simple Status Viewer] Tab
The [Simple Status Viewer] tab allows you to narrow
down the information registered to each page of the status
viewer to a certain few items, such as the RF meter, QL
meter, and alerts, and display only those items for easier
monitoring.
By reducing the number of items displayed, the display
area for each channel is increased, making the simplified
status viewer ideal for systems with fewer channels to
manage.
a [Page]
Select the status viewer page.
The content registered to the selected page will appear in
the status display area.
b [Scale]
Switch the display size (small, medium, large) of the
information items displayed for each receiver channel in
the status display area.
When displaying the simple status viewer in full screen on
a monitor with 1366
×
768 resolution, the numbers of
receiver channels that can be displayed simultaneously are
as follows.
Small: 24
Medium: 12
Large: 6
c Maximize / restore button
Displays the simple status viewer in full screen window
size, or returns it to normal size.
• Simple status viewer in normal window size
Click the button to maximize the window size.
• Simple status viewer in maximum window size
Click the button to return the window to the size before
maximization.
The maximize / restore button only appears when the
[Simple Status Viewer] tab is separated from Wireless
Studio.
For details on separating the [Simple Status Viewer] tab
from Wireless Studio, see “To separate a sub-window tab
from Wireless Studio” on page 24.
d Status display area
Displays information on each receiver channel.
You can select whether to display or hide each information
item in the [Display settings] window.
For details, see “[Display settings] Window” on page 56.
TV42-51 TV42-44
TV45-47
TV48-50
TV51
Band block Band
1 2 3
4
Note
