Maintenance
Guide clamp cable replacement:

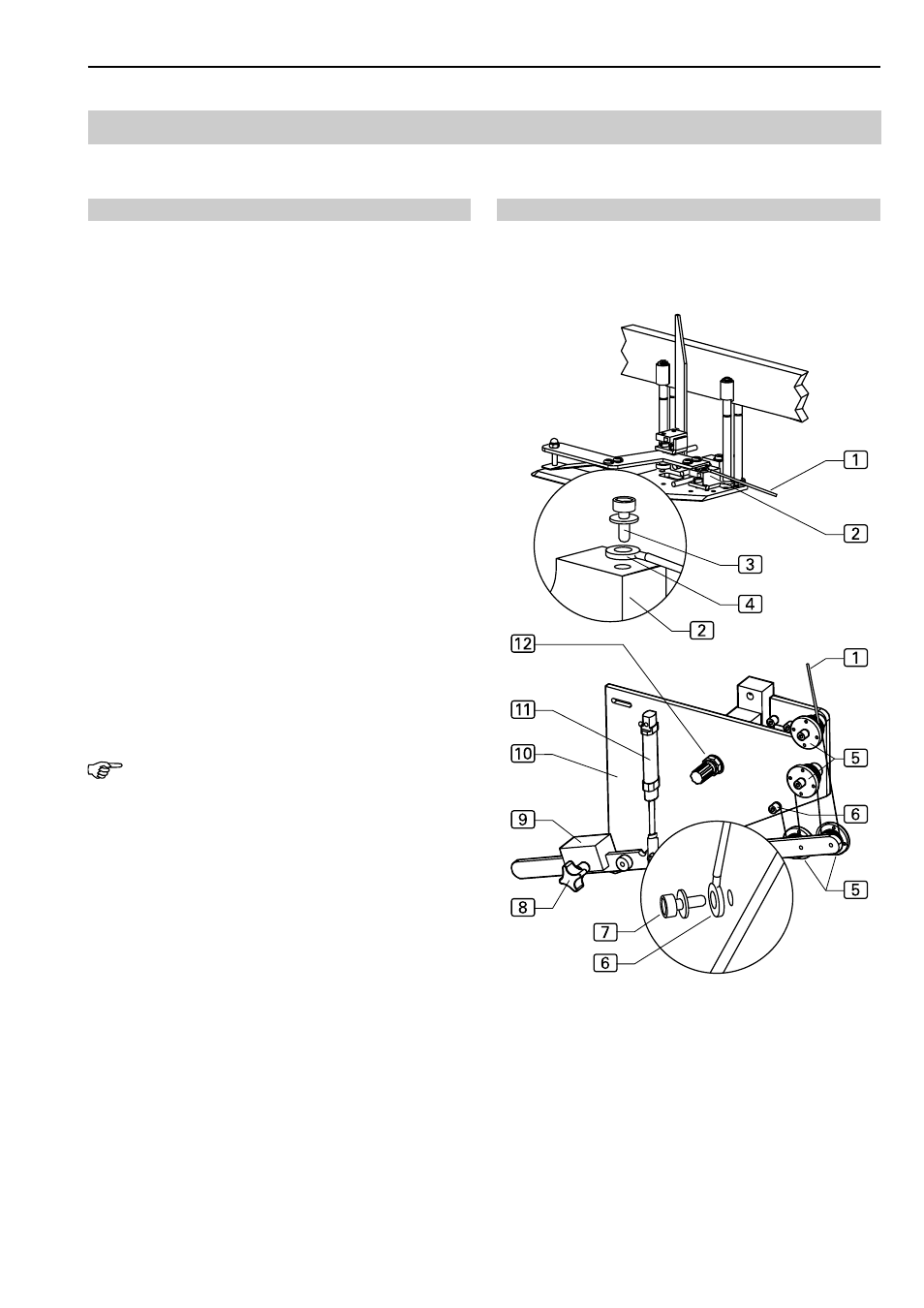

Fig. 11: The guide clamp cable
1 is attached to the guide
clamp rail 2 and to the plate a below the worktable. Belt
tension is ensured by the counterweight 9 .
Cable replacement:
1. Fig. 11: A screw secures the eyelet on one end of the
cable 4 to the rail. Remove retaining screw 3 from
guide clamp rail 2 .
2. Another screw secures the eyelet on the other end of
the cable 6 to the plate a . Remove retaining screw
7 from plate.
3. Remove cable from four deflection rollers 5 .
4. Before installation, make sure that the cable is not
twisted or knotted. Secure cable eyelets to rail and to
plate using the screws, then position cable onto rollers.
5. Adjust counterweight 9 . Loosen fixing screw 8 and
reposition counterweight on lever. The correct positi-
on is reached when the cable is slightly tensioned by
the tensile force of the counterweight; however, the
counterweight must not exert pressure onto the guide
clamp.
6. Tighten fixing screw 8 .
7. Set return cylinder b pressure. To increase pressu-
re for setting a higher return speed, rotate knob c in
the counterclockwise direction.
NOTE - Guide clamp damage!
If the pressure is set too high (return speed to high), the
guide clamp may be damaged due to an impact at the
insertion station buffer.
