- 19 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
C.5
Maintenance
Setting the rule stop:
The stitch width is determined by the width of the pressure
foot and by the distance between the pressure foot and
the stop. Two versions of the rule stop are available:
•
Standard rule stop,
• automatic rule stop with catch for contour guide.
NOTE - Stitch width!
The minimum stitch width should not be adjusted using
the contour guide settings but by replacing the sewing unit/
pressure foot assembly. If the sewing unit is replaced, the
rule stop must be readjusted. Removal and installation of
the sewing unit are described in the separate instructions
for the sewing head.
NOTE - Contour guide positions!
Before the rule stop can be set, the start and stop posi-
tions in the direction of X/Y must be set correctly.
Setting the standard rule stop:

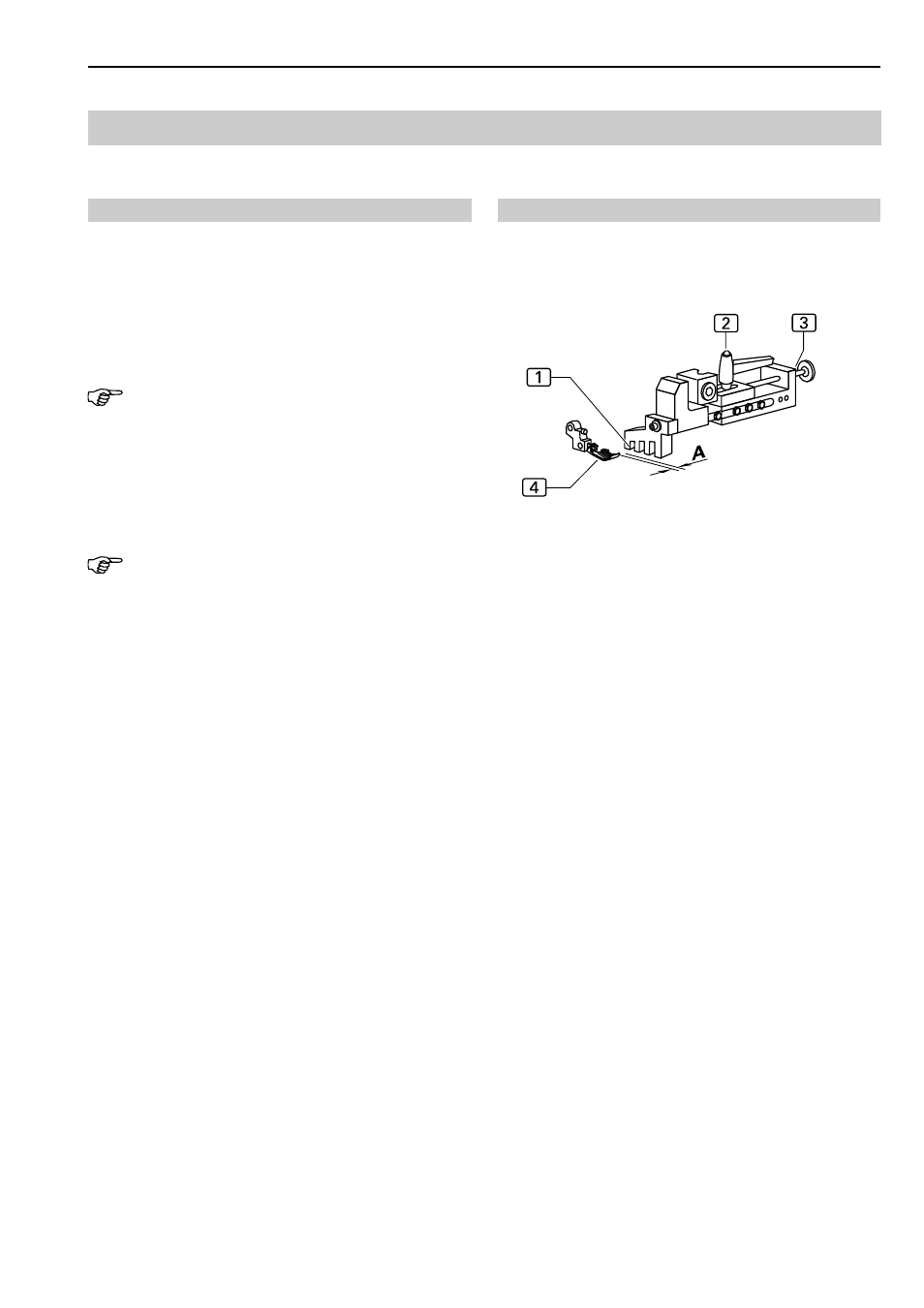

1. Fig. 15: Release locking lever
2 .
2. To set distance A (between pressure head 4 and line-
up surface at stop 1 ), rotate knurled screw 3 . Di-
stance A should be 0.1-0.2 mm.
3. Check distance using feeler gauge, then tighten lok-
king lever to secure correct distance.
Fig. 15
Fig. 15
