36 Rev 1.3 • 10 Oct 08
2. Installation
Making Power Connections
Connecting One NV6257 to One Router
How to connect a single NV6257 to a single router frame
1 Locate the power cords, PS6000 power supply modules, and cables supplied by NVISION.
2 If not already removed, remove all PS6000 power supply modules.
3 Facing the rear of the NV6257, connect the power supply cable (WC0085) to ‘Output Power 1’,
as shown in Figure 2-2.

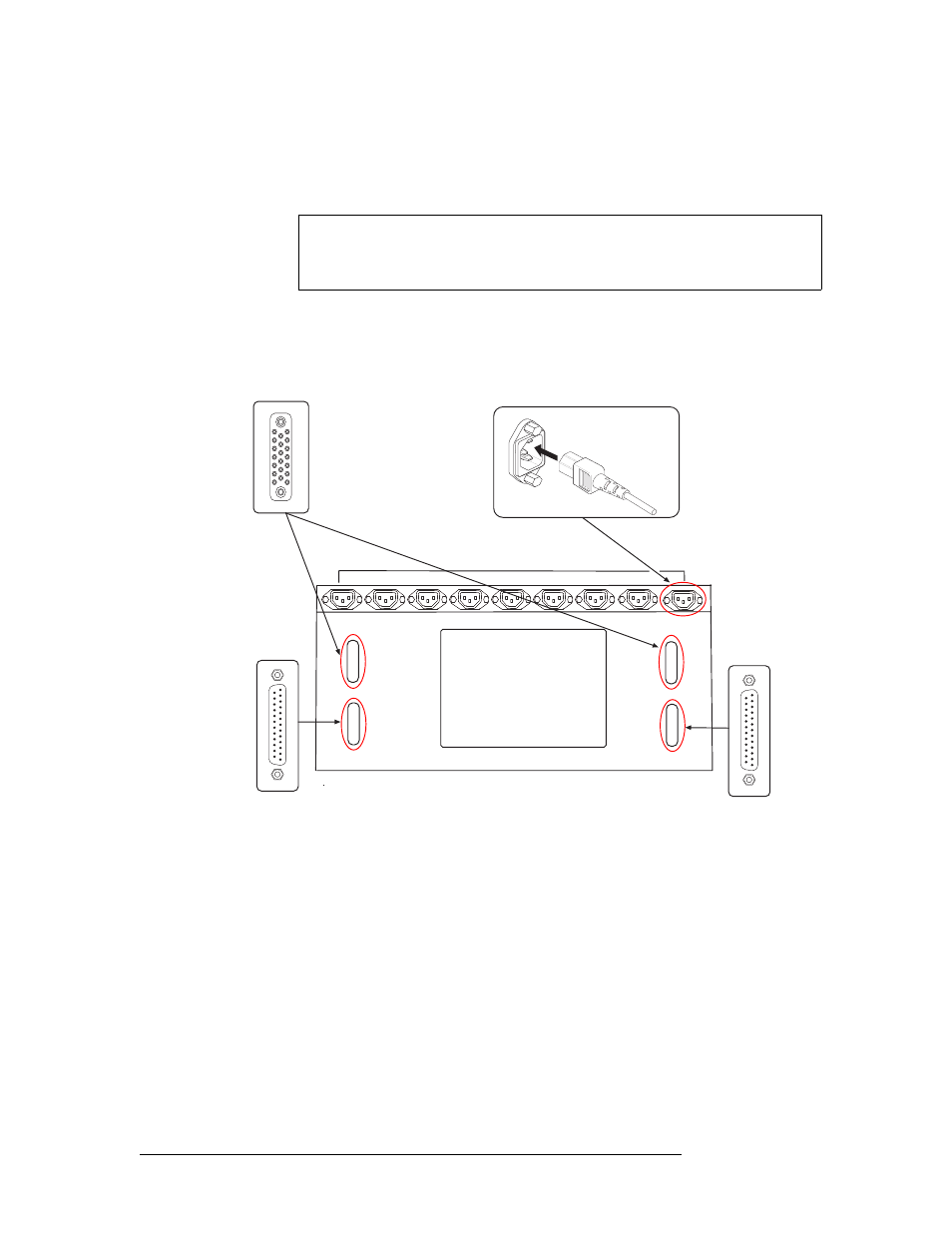

Figure 2-2. NV6257 Power Supply (Rear View)
Caution Make power connections between the router and NV6257 before connecting the
NV6257 to an AC power source. Insert PS6000 power supply modules after con-
necting the NV6257 to an AC power source.
FAN
Power supply connections PS1 through PS8
Output
Power 1
Output
Power 2
Power
Supply
Monitors
Alarms
Output Power 1
and
Output Power 2
(Power Connector)
Power Supply
Monitors
(DB25 Connector)
Alarms
(DB25 Connector)
Power Supply
Power Connector
A
