38 Rev 1.3 • 10 Oct 08
2. Installation
Making Power Connections
b (Optional) Facing the front of the NV6257, install the redundant PS6000 power supply
modules in slots PS 2 and PS 4, as shown in Figure 2-4.

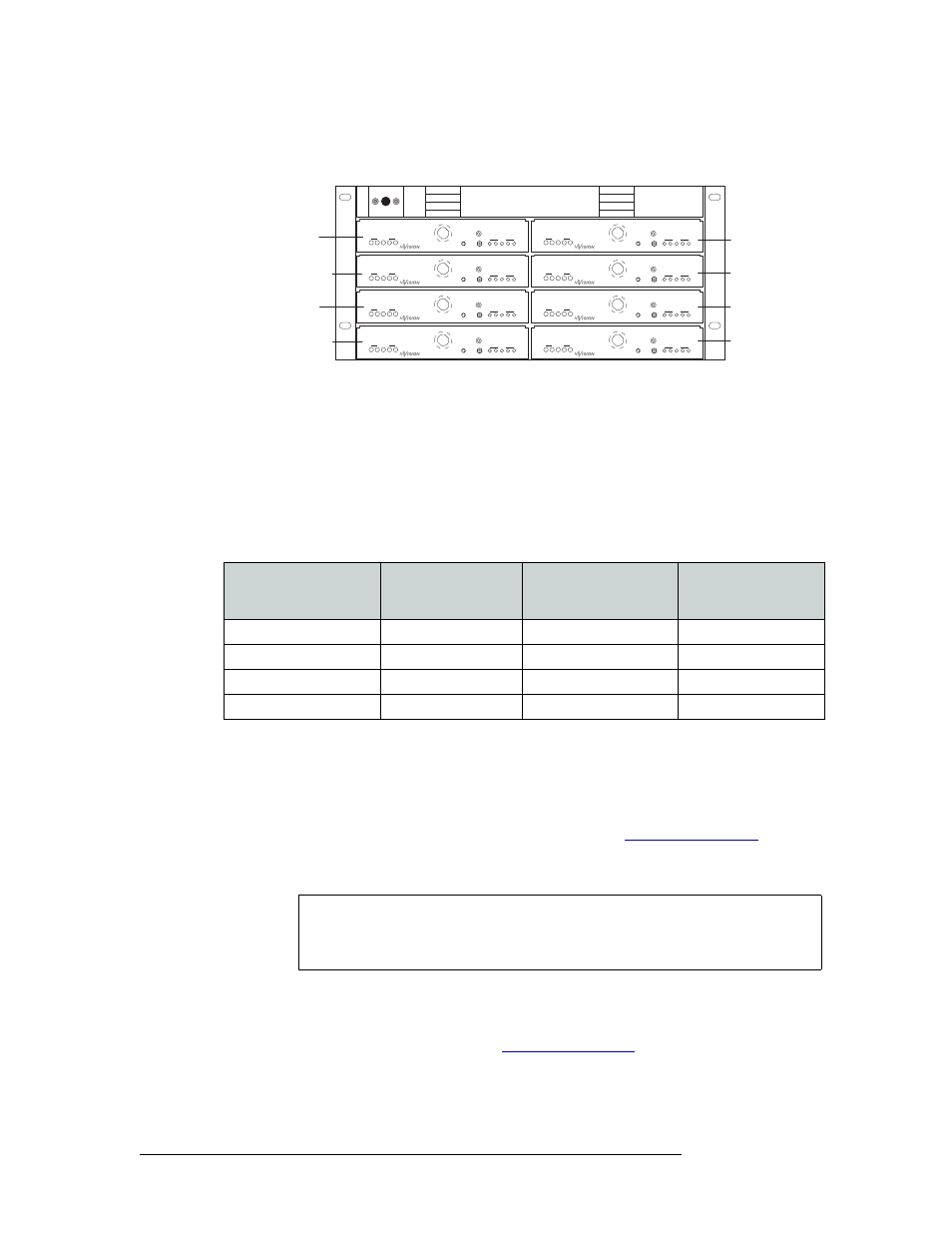

Figure 2-4. NV6257 Power Supply (Front View)
9 Facing the rear of the router, connect the ground lug to ground using a copper wire from 14 to
6 AWG. The ground lug is located in the lower, right-hand corner.
Connecting One NV6257 to Two Routers
When two routers are connected to one NV6257 power supply, different PS6000 power supply
module slots (see Figure 2-4) provide power to one or the other of the two routers (Router 1 and
Router 2), as follows:
To connect power to two routers from a single NV6257, two power supply cables (WC0085) are
required, provided by NVISION.
To make monitor connections between one NV6257 and two NV7512 routers, you will need to cre-
ate a “Y” cable. The “Y” cable has one central cable that branches into two cables, enabling one
source to be connected to two destinations. For instructions, see
Creating a “Y” Cable on page 40.
How to connect a single NV6257 to two router frames
1 Locate the power cords, PS6000 power supply modules, and cables supplied by NVISION.
2 If not already removed, remove all PS6000 power supply modules.
3 Create a “Y” cable. For instructions, see
Creating a “Y” Cable on page 40.
4 Facing the rear of the NV6257, using one of the two power supply cables (WC0085), connect
one end of the cable to ‘Output Power 2’, as shown in Figure 2-2 on page 36.
PS5
PS6
PS7
PS8 PS1
PS2
PS3
PS4
Primary PS 1
Primary PS 3
Primary PS 5
Primary PS 7
Redundant PS 2
Redundant PS 4
Redundant PS 6
Redundant PS 8
GND POWER
1 2 3 4 5 1 2 3 4 5
+48V
PS6000
GND POWER
1 2 3 4 5 1 2 3 4 5
+48V
PS6000
GND POWER
1 2 3 4 5 1 2 3 4 5
+48V
PS6000
GND POWER
1 2 3 4 5 1 2 3 4 5
+48V
PS6000
GND POWER
1 2 3 4 5 1 2 3 4 5
+48V
PS6000
GND POWER
1 2 3 4 5 1 2 3 4 5
+48V
PS6000
GND POWER
1 2 3 4 5 1 2 3 4 5
+48V
PS6000
GND POWER
1 2 3 4 5 1 2 3 4 5
+48V
PS6000
Power Supply Slots
(PS) Router
Primary or Redundant
Power Source
Power Supply
Output Driven by
Power Supply Slots
PS 1 and PS 3 Router 1 Primary Output 2
PS 2 and PS 4 Router 1 Redundant Output 2
PS 5 and PS 7 Router 2 Primary Output 1
PS 6 and PS 8 Router 2 Redundant Output 1
Caution Make power connections between the router and NV6257 before connecting the
NV6257 to an AC power source. Insert PS6000 power supply modules after con-
necting the NV6257 to an AC power source.
