NV7512 Audio Router • User’s Guide 85
4. Configuration
Before being placed into service, the NV7512 router needs to be configured for your particular
routing needs, router control system, and settings. Configuration includes initializing ports so that
the router and UniConfig can communicate, setting up partitions, switch point settings, and testing
switching configurations. Configuration tasks are performed using the UniConfig application,
which resides on a PC apart from the router. For detailed information on using UniConfig, see the
UniConfig User’s Guide.
Control Card Jumper Settings
The control card(s) contains several jumpers. Each jumper connection is labeled with a jumper
identification number. By default, jumpers are placed in the position most commonly used.
These jumpers must be set before the control card is placed into service.
How to set jumpers
1 Locate the control cards, primary and secondary, as shown in Figure 4-1.

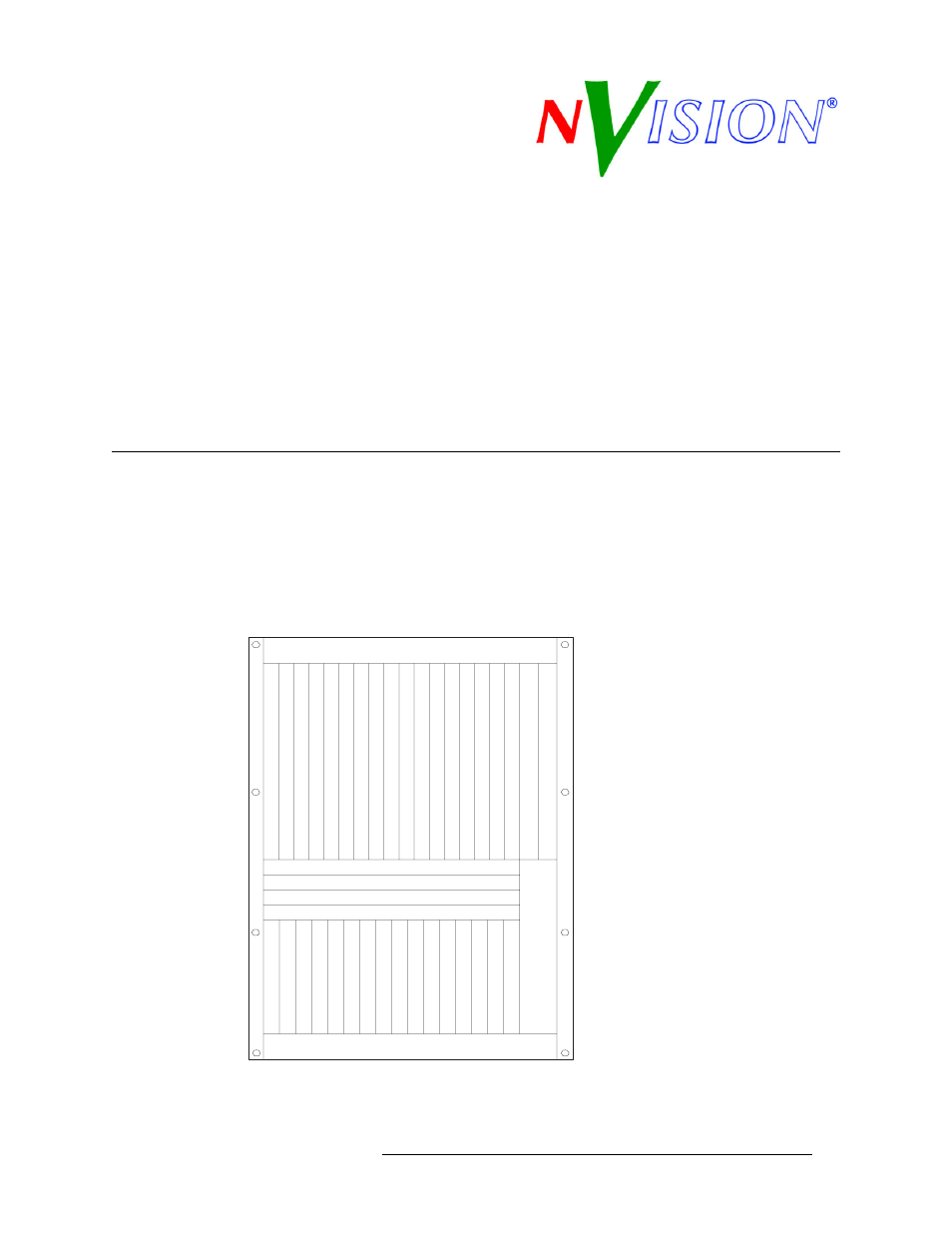

Figure 4-1. Location of Control Cards (Front View)
2 Gently remove the control card whose jumpers you want to configure.
Fan
Fan
Slot A - Crosspoint (Outputs 1-128)
Slot B - Crosspoint (Outputs 129-256)
Slot C - Crosspoint (Outputs 257-384)
Slot D - Crosspoint (Outputs 385-512)
Output
s 1–32
Output
s 33-64
Output
s 65-96
Output
s 97-128
Output
s 129-160
Output
s 161-192
Output
s 193-224
Output
s 225-256
Output
s 257-288
Output
s 289-320
Output
s 321-352
Output
s 353-384
Output
s 385-416
Output
s 417-448
Output
s 449-480
Output
s 481-512
Control — Secondary Control — Primary
Input
s 1–32
Input
s 33-64
Input
s 65-96
Input
s 97-128
Input
s 129-160
Input
s 161-192
Input
s 193-224
Input
s 225-256
Input
s 257-288
Input
s 289-320
Input
s 321-352
Input
s 353-384
Input
s 385-416
Input
s 417-448
Input
s 449-480
Input
s 481-512
Fan
Monitor
