Quadra-Chek

QC200

4-15

Example of assigning hot
keys

Send 2

Send 2
Sends the current X and Y axes data displayed on the DRO screen
to a printer or computer.

NOTE

NOTE
The Extra menu includes functions that send data from all

The Extra menu includes functions that send data from all

The Extra menu includes functions that send data from all
axes when the QC100 system includes a Z and/or Q axis.

axes when the QC100 system includes a Z and/or Q axis.

Clear (CL) datums

Clear (CL) datums
Resets all absolute and incremental datums to machine coordi-
nates.

Min Max

Min Max
Configures an axis to accumulate and retain minimum and maxi-
mum measured values until the Finish key is pressed. This is use-
ful for applications such as touch-probe measurements of runout.

Repeat (Rpt) preset

Repeat (Rpt) preset
Resets datums to the last preset values.

MCS

Allows the user to clear datums, cross reference marks and re-
establish machine coordinates without cycling the system power.

An example of assigning hot keys is provided below and demon-
strates how to make two different types of hot key assignments
to the numeric keypad. The methods illustrated in this example
can be applied directly to the assignment of Hot Keys to the Unit,
Remote, Foot and Wide keys.

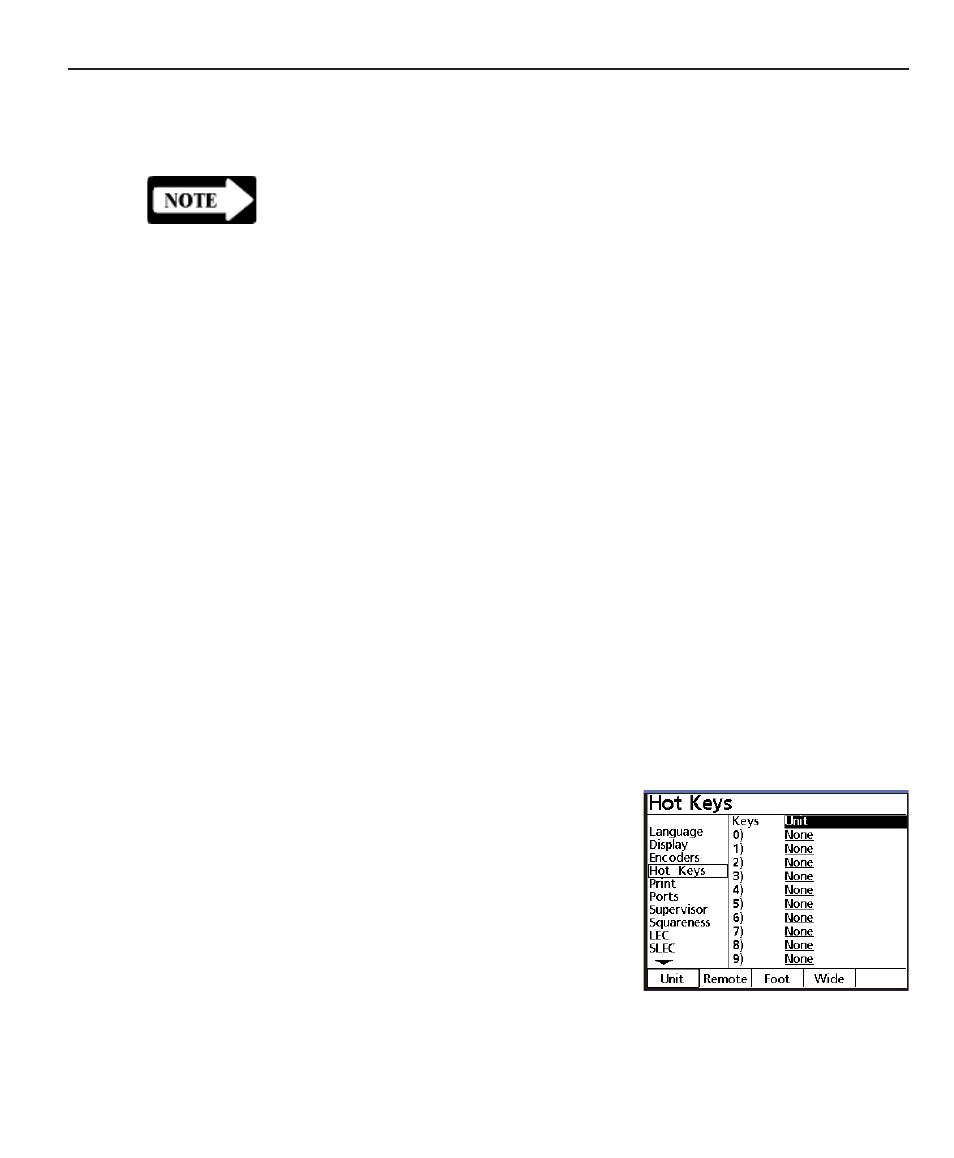

Press the right cursor arrow

right cursor arrow

key

key to select items in the right
portion of the Hot Keys screen
and press the Unit softkey

Unit softkey

Unit softkey at

the bottom of the LCD if neces-
sary.
