Programming 5 - 14

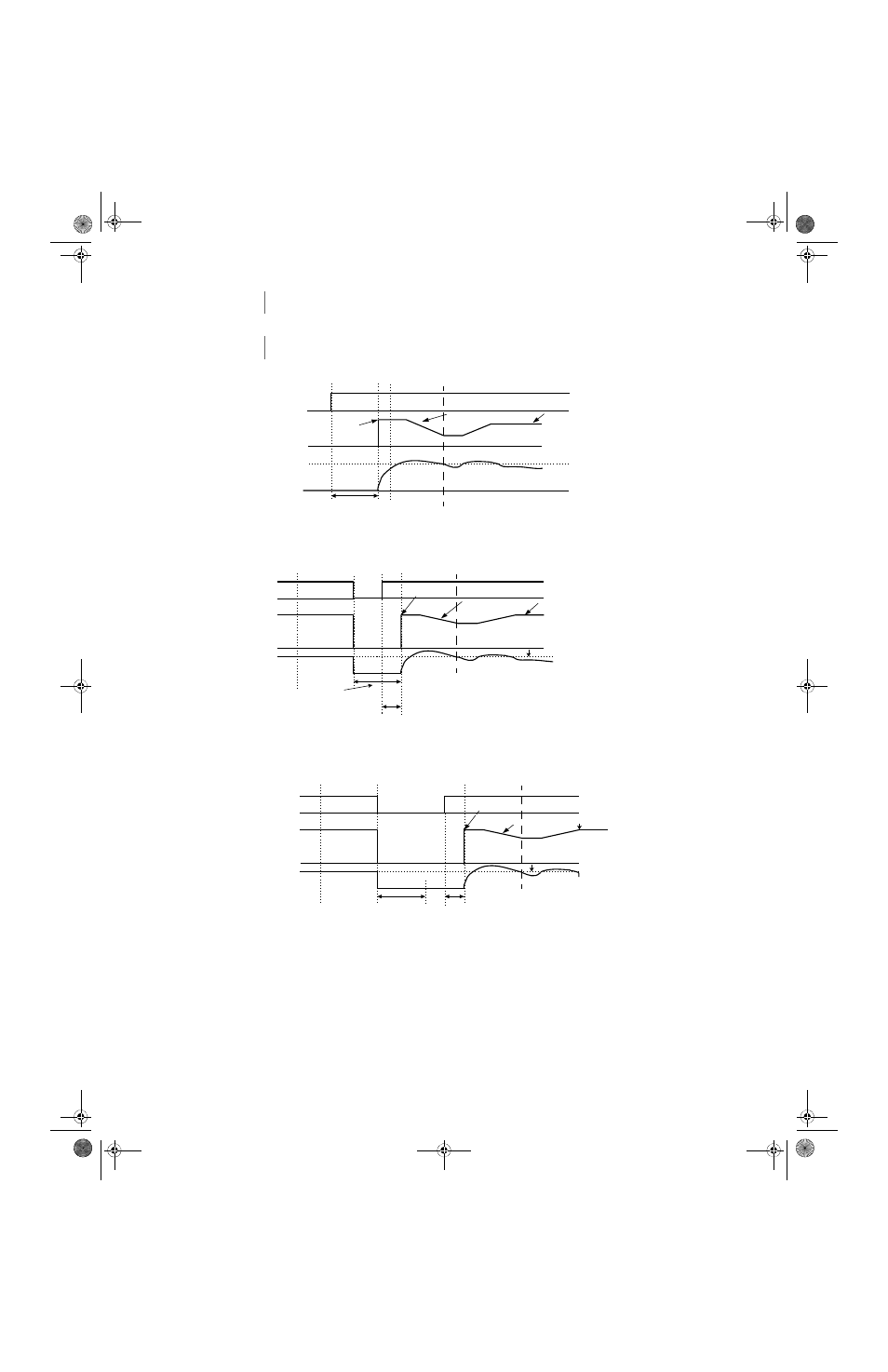

Fig 5.12 Speed Search (Current Detection Method) at Startup
Fig 5.13 Speed Search (Current Detection Method) after momentary power loss where the power loss
time is less than the minimum baseblock time
Fig 5.14 Speed Search (Current Detection Method) after momentary power loss where the power loss
time exceeds the minimum baseblock time
IMPORTANT If a UV1 fault occurs when current detection Speed Search is attempted, increase the setting of L2-04
IMPORTANT If an OC fault occurs when Speed Search is attempted after power loss recovery, increase the setting of L2-03.
Run command
Output frequency
Output current
OFF ON
b3-02
Deceleration time set in b3-03
Set frequency
reference
Minimum baseblock time
(L2-03)
Maximum output
frequency or
set frequency
* Lower limit is set using Speed Search Time (b3-05). * Search Delay Time (b3-05).
Speed search current level
AC power supply
Output frequency
Output current
OFF ON Output frequency before power loss
Set frequency
reference
Minimum baseblock time (L2-03)
*1 Baseblock time may be reduced by the output frequency
immediately before baseblock.
*2 After AC power supply recovery, motor waits for the minimum
Speed Search Wait Time (b2-03).
Deceleration
time set in b3-03
b3-02
speed search operating current
*2
*1
b3-05
AC power supply
Output frequency
Output current
OFF ON Output frequency before power loss
Set frequency
reference
Minimum baseblock time
(L2-03)
Deceleration speed set in b3-03
b3-02
Speed search operating time
Speed search wait time (b3-05)
Deceleration time set in b3-03
