No. Name Description
6 Touch panel Used to display the connection status of the ScanSnap, start
scanning documents, or change the settings of the ScanSnap.
When the ScanSnap is turned off automatically, press the touch
panel to turn it back on.
7 Stacker Pull it out to use it.
Stacks up the ejected documents.
8 Receipt Guide Attach it to the ADF paper chute (cover) for it to be used.
If you use the Receipt Guide, you can place documents with different
widths such as receipts in it to scan them at the same time.
*1: When the ScanSnap has turned off automatically because of the automatic power off function,
either press the touch panel, or close the ADF paper chute (cover), then open it again to turn the
ScanSnap back on.
For details, refer to
"Automatic Power OFF (iX1500/iX500/iX100/SV600/S1300i)" (page 98) .

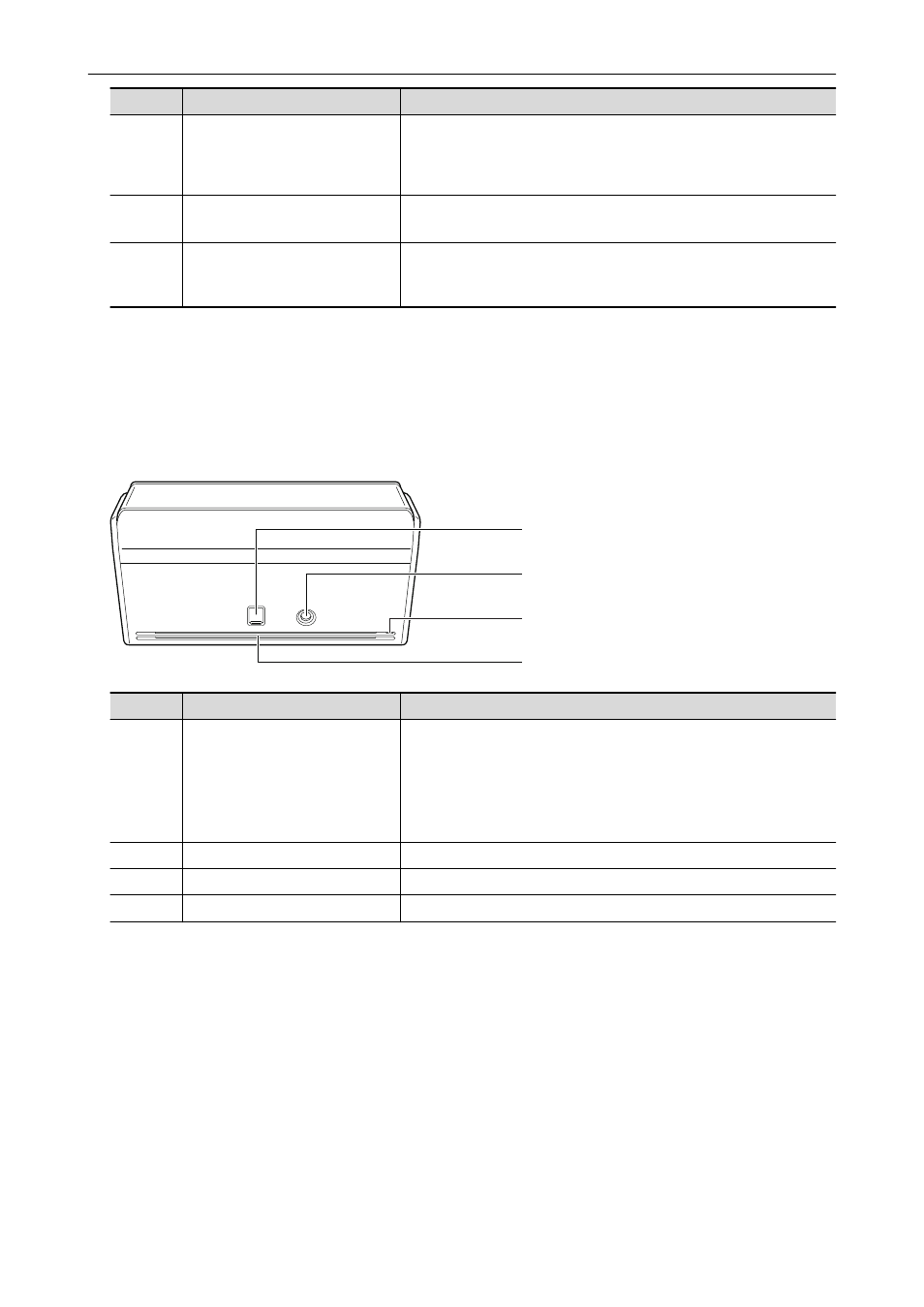

Back
9
10
11
12
No. Name Description
9 USB connector Slide the cover of the USB connector up to open it and then connect
the USB cable to the USB connector.
The cover of the USB connector slides up either one or two levels.
Open the cover according to the type of the USB cable you have.
l First level: USB 2.0 cable
l Second level: USB 3.0 cable
10 Power connector Used to connect a power cable.
11 Security cable slot Used to connect an anti-theft security cable (commercially available).
12 Ventilation port Holes for ventilating hot air from inside the ScanSnap.
Parts and Functions
69
