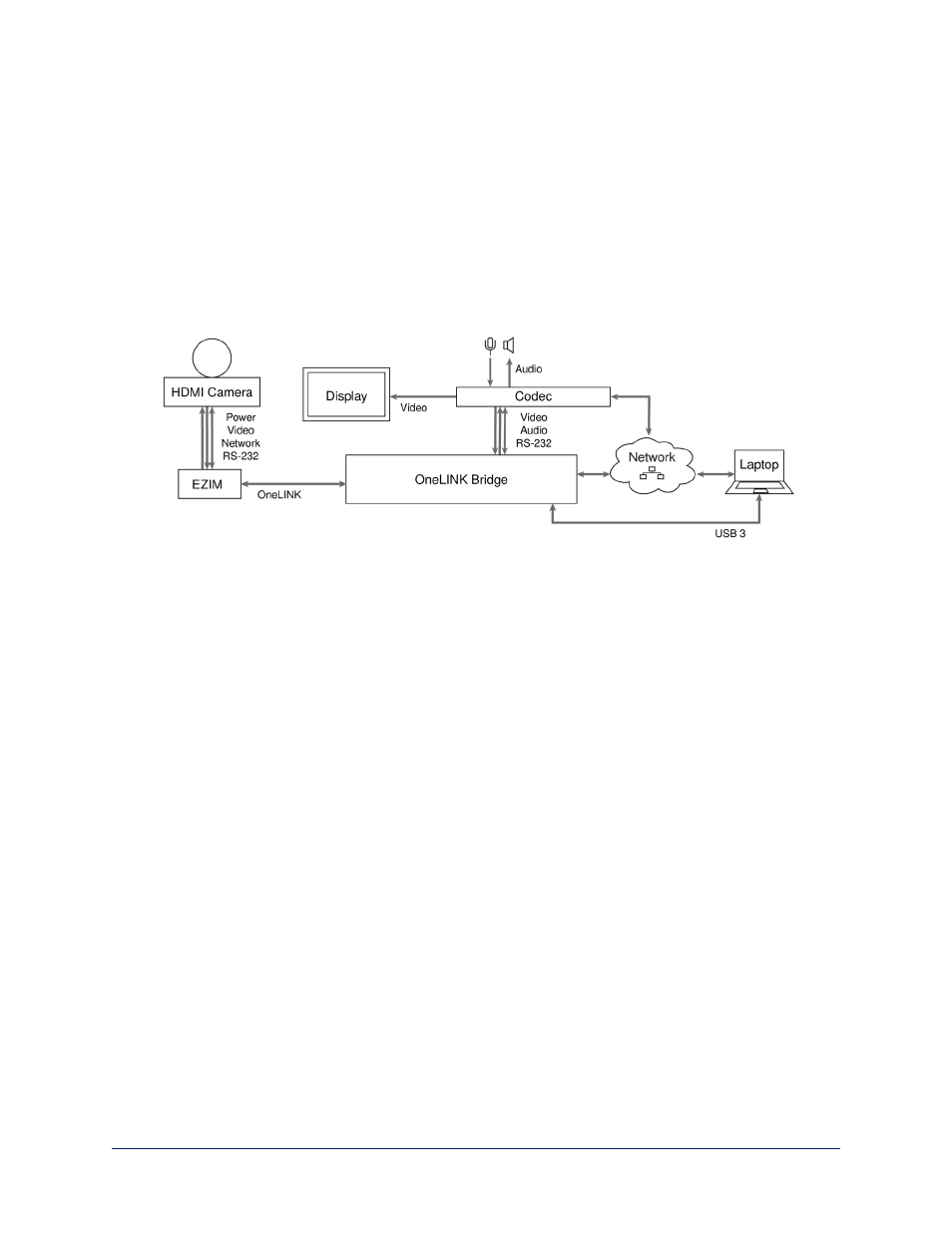

Connections for HDMI Cameras Used with Codecs
The OneLINK Bridge extends network connectivity, power, and control to an HDMI camera via the EZ
Camera Interface Module (EZIM), and sends HDMI video from the camera to a connected codec. In
addition, the OneLINK Bridge provides audio connections and originates a USB stream to bridge the
equipment into a USB-based conferencing application.
The codec may be connected to the OneLINK device via RS-232 or over the IP network, depending on
the codec.
If an IP stream is available from the camera, the OneLINK device passes it to the network. Ethernet pass-
through is limited to 100 Mb/s. HDMI output resolution and streaming parameters (including resolution)
are configured on the camera, not the OneLINK device.
Note
OneLINK devices are not compatible with PoE+ powered HDMI cameras such as RoboSHOT 12E HDMI
and RoboSHOT 30E HDMI. OneLINK devices are compatible with the discontinued RoboSHOT 12
HDMI and RoboSHOT 30 HDMI cameras.
Hardware Note: Connection and Configuration Changes
After connecting or configuring the equipment, reboot the OneLINK device, camera, and codec. Note
that rebooting the OneLINK device does not affect the camera and codec; they must be rebooted
separately.
