Configuring Audio Settings
A
UDIO PAGE
The web interface provides separate controls for each of the audio inputs and outputs:
n
Analog (Mic/Line In 1 and 2, and Line Out 1 and 2)
n
Digital (HDBT Input left and right, HDMI Output left and right, SDI Output left and right)
n
Streaming (USB Playback left and right, HDBT Output left and right, USB Record left and right)
The Matrix tab of the Audio page defines audio routing.
Quick Adjustments – Muting and Volume
A
UDIO PAGE
, A
NALOG
, D
IGITAL
,
AND
S
TREAMING TABS

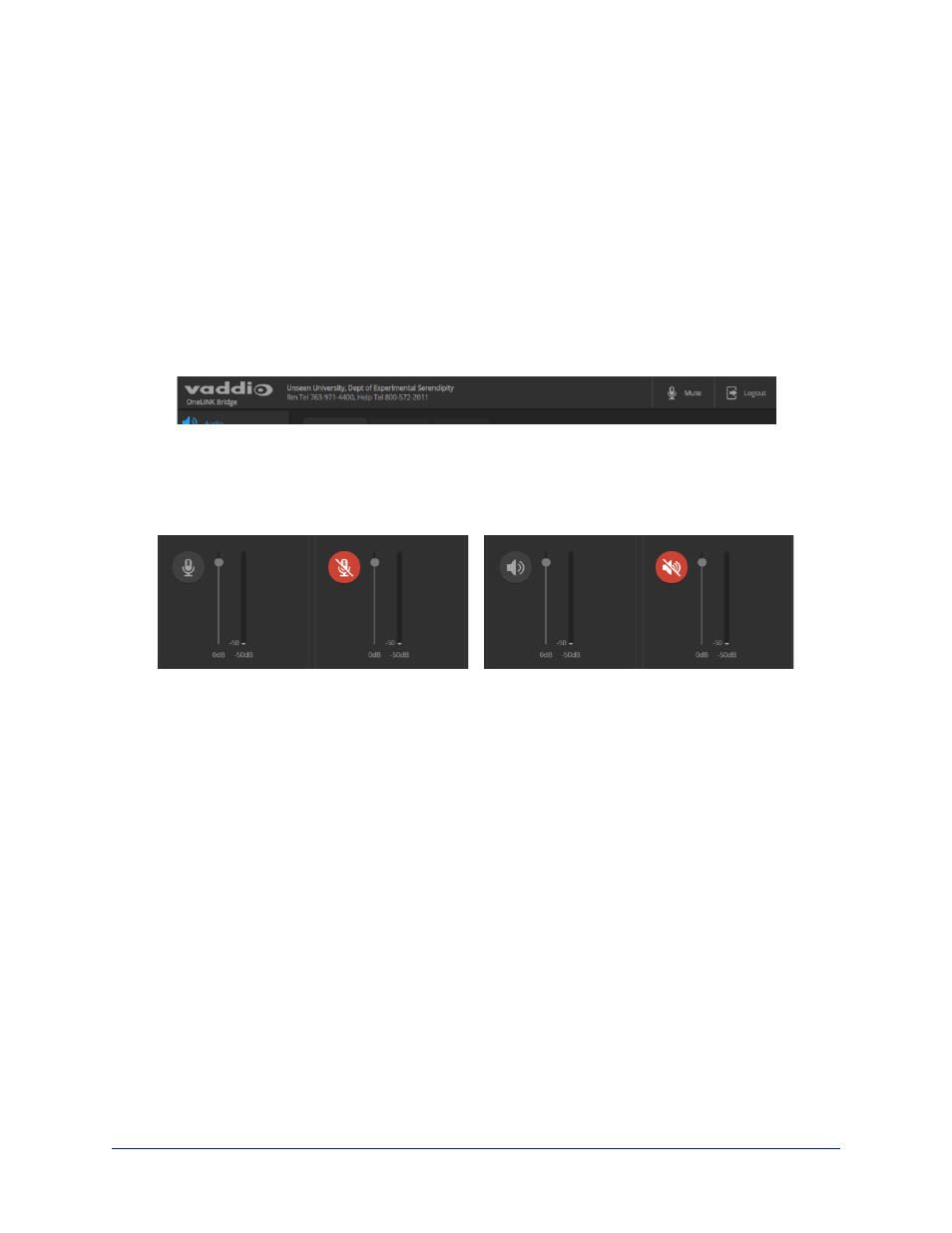

To mute all microphones:
Use the Mute control at the top of any page.
To control volume on individual inputs or outputs:
Use the button to mute the desired audio input or output. Use the slider to set the volume.
Note
For best performance with most computers, we recommend setting the USB Record volume high.
