Accessing the Web Interface Manually
To get the IP address:
Press the button labeled Display IP and MAC Address, on the front of the unit. The information is overlaid
on the HDMI, HD-SDI, and USB video outputs.
The OneLINK device uses the default address of 169.254.10.1 if no DHCP server is available. In this
situation, you will need to connect a computer to the OneLINK device's network port and configure
network settings.
To access the web interface:
Enter the IP address or hostname in your browser's address bar. If you use the hostname, you may need
to enter
https:// as a prefix to keep the browser from treating it as a search query.
If the Device Is At 169.254.10.1
This is the device's default IP address. This means one of these things:
n The device is not connected to the network – check the cable connected to the Network port.
n The network does not automatically assign IP addresses, and you need to configure the device for
the network.
To communicate directly with the device, connect a cable from your computer's network port to the
device's network port. You do not need to disconnect other devices.
After completing the initial device set-up, you will need to configure the device with a static IP address.
Work with your network administrator.

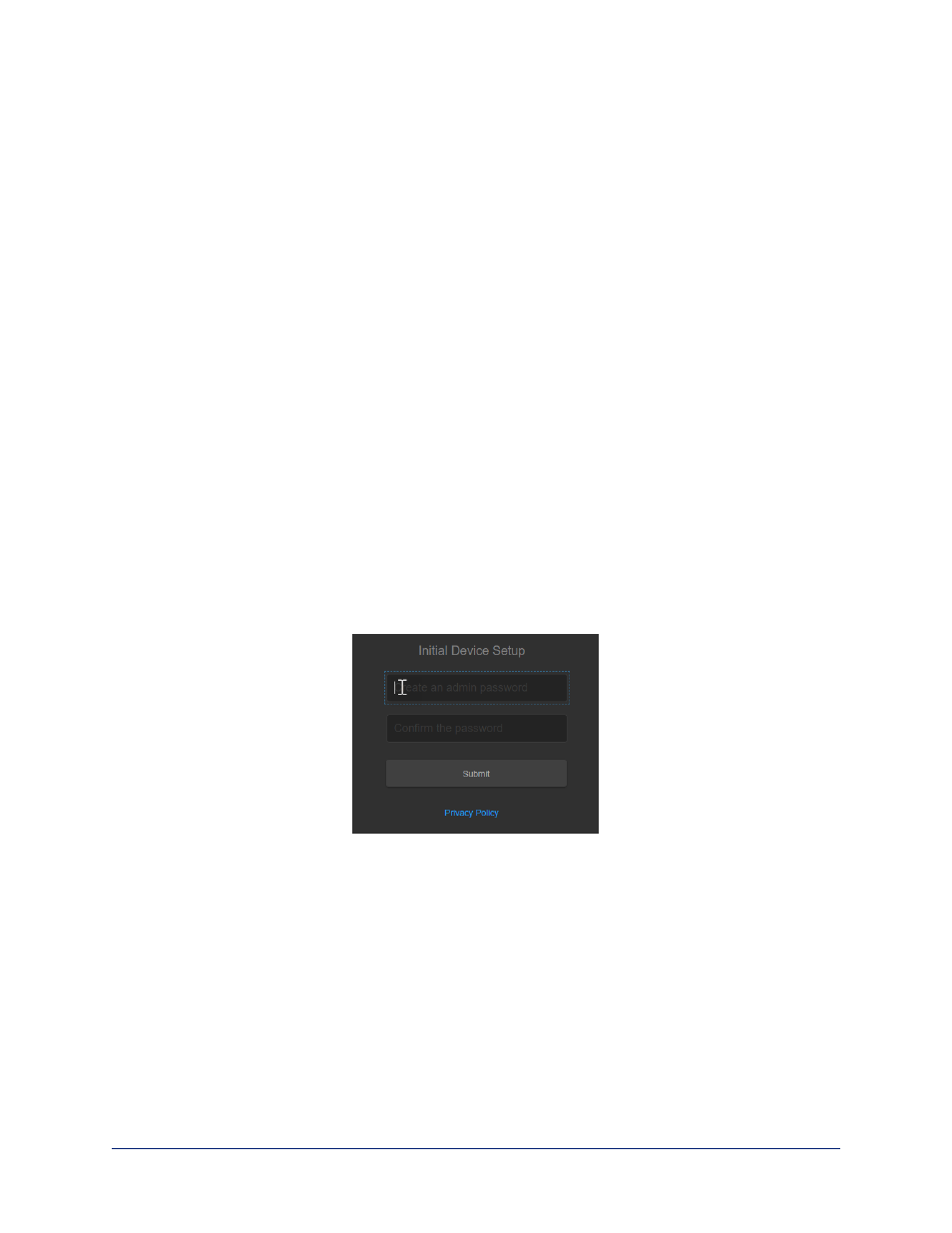

Completing the Initial Device Set-up
Set the admin password and complete any other required tasks, such as accepting agreements. The full
administrative interface opens when you finish.
Be sure you have a way to remember the admin password. We cannot reset it for you. If the password is
lost, you may need to return the device for factory service.
Note
The web interface provides links to the company’s standard privacy policy because the device’s IP
address is considered “personally identifiable information”. This product does not record or save audio or
video files, and it does not store any identifying information other than what you may choose to enter on
the Room Labels page of the web interface.
You may also need to complete the initial device set-up and administrative configuration on the
connected camera.
