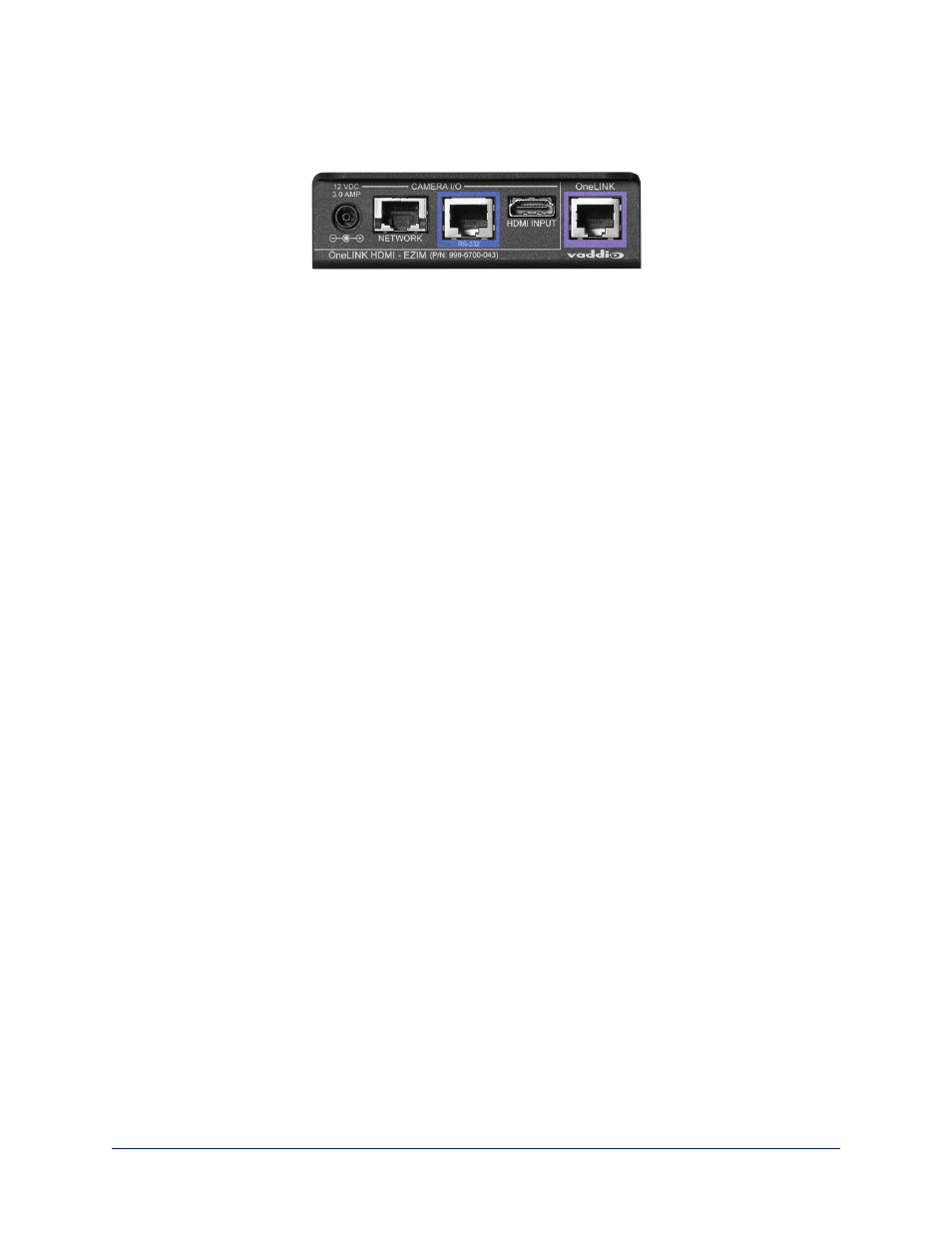

Connector Panel of the EZCamera Interface Module (EZIM)
If the OneLINK device is used with an HDMI camera, the EZIM HDBaseT converter is required.
From the left:
n Power output jack – Supplies power to the camera.
n Network port – Provides network connectivity to the camera for H.264 IP streaming (if available from
the camera), web interface access, and third-party control via Telnet API.
n RS-232 port – Provides RS-232 connectivity to the camera, for third-party control.
n HDMI input – Receives HDMI video from the camera.
n OneLINK port – Single-cable connection to the OneLINK receiver. This bidirectional connection
carries all video, power, and control.
