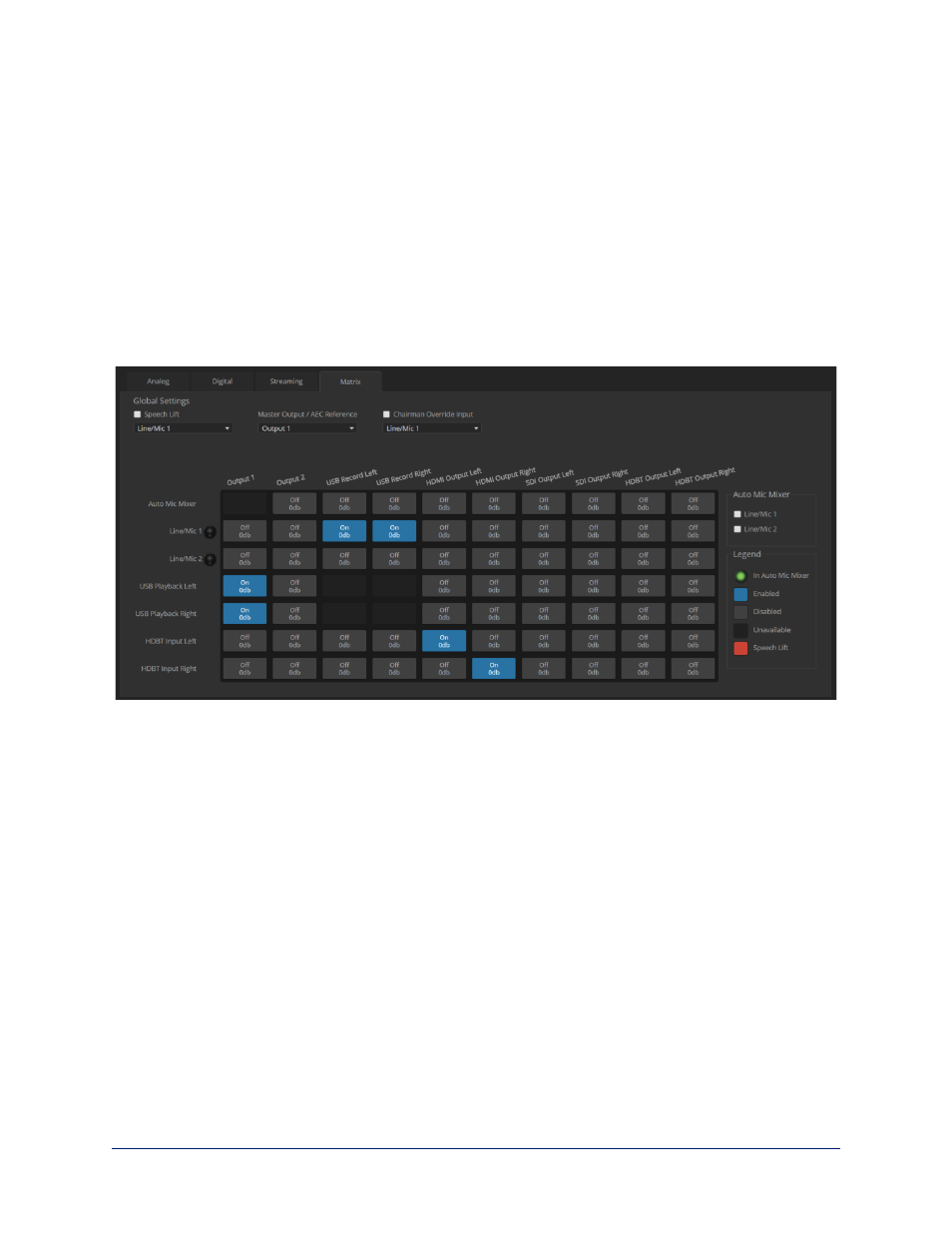

Reading the Audio Matrix
A UDIO PAGE , M ATRIX TAB
The audio matrix shows where each audio output originates. Each column of the matrix shows one audio
output, and each row shows one audio input. Table cells highlighted in blue mean that the input
represented in that row is routed to the output represented in that column. More than one input may be
routed to a given output. The defaults are:
n USB Playback left and right (far-end audio from the soft conferencing client) route to line output 1
(typically the speaker in your conference room).
n Line/Mic 1 (your room's microphone) routes to USB Record left and right (the audio that the
participants on the far end hear).
n HDBT left and right (far-end audio received as part of the HDMI signal over the HDBT connection)
routes to HDMI Output left and right, and goes to the HDMI display's speakers.
Routing Audio
A UDIO PAGE , M ATRIX TAB
To specify how the OneLINK Bridge uses a given audio input, locate its row. Locate the column
representing the desired output and select the table cell where the desired row and column intersect.
Example: The USB stream has left and right audio channels, but by default Line/Mic 1 provides the
source for both channels of outbound USB audio (USB Record left and right) and both channels of
incoming USB audio are routed to Output 1 (Audio Line Out 1). You might choose to change the default
matrix to provide separate right and left channels of outbound and inbound USB audio.
