Cisco Precision 60 Camera and Cisco SX80 Codec
Hardware Note: RS-232 Connections
For RS-232 connections to Cisco gear using DE-9 connectors, use the 998-1002-232 RJ-45 to DE-9
adapter. Its wiring differs from the 998-1001-232 adapter used with many Vaddio products.
For RS-232 connections to Cisco gear using the Cisco split cable, use the appropriate null-modem cable
to the RJ-45 side of the split cable. Connect the null-modem cable as indicated on the cable labels.
OneLINK Device Configuration
After installation is complete and the OneLINK device and camera are operational, you will need to

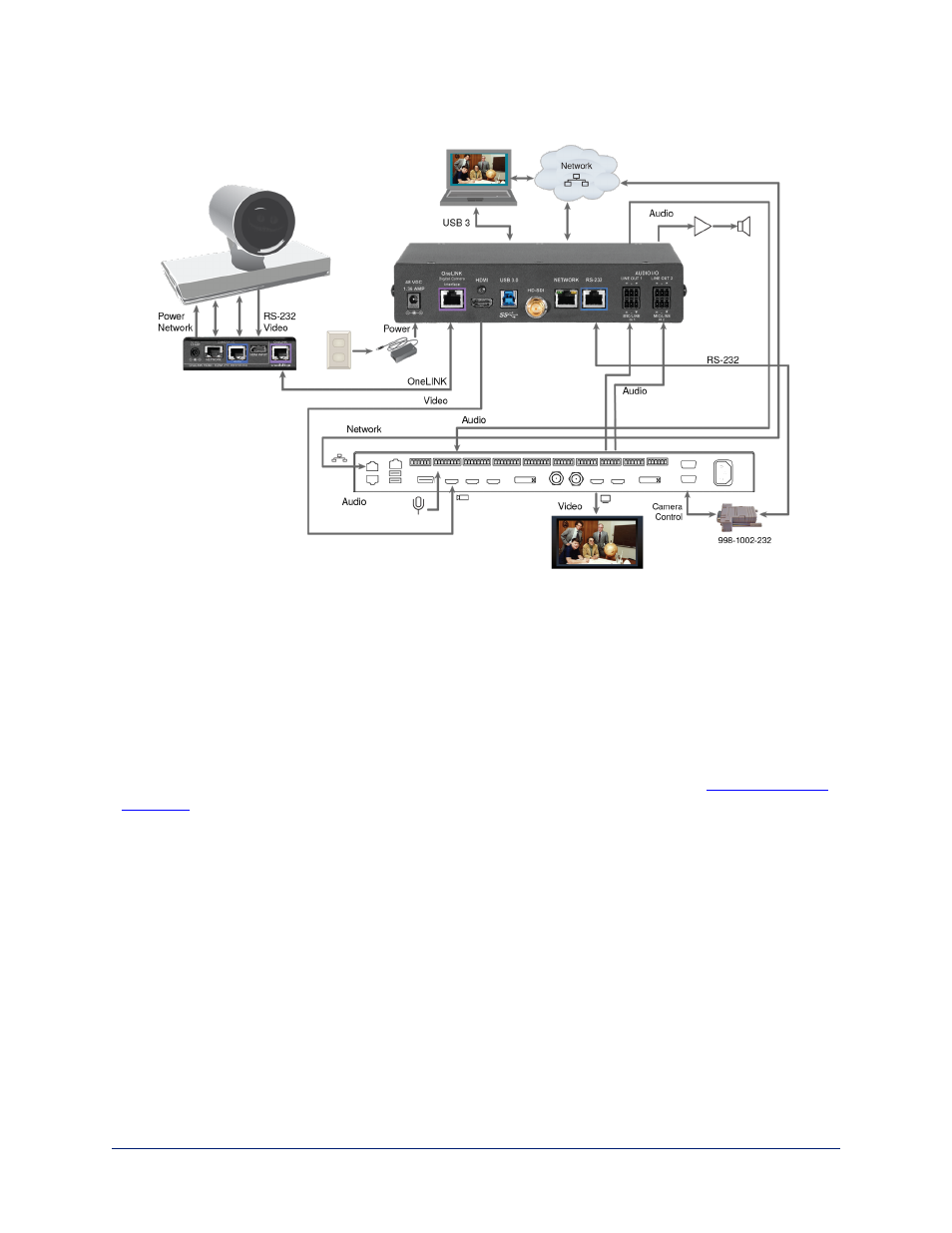

change the AEC reference if you made the audio connections as shown in these diagrams. Set Master
Output/AEC Reference to Output 2 if using Line Out 2 for the speaker connection. See
.
Powering Up the Equipment
Power up the connected equipment that is not powered by the OneLINK device (such as displays and
third-party control devices), then connect power to the OneLINK device. The connected camera and the
OneLINK device power up together.
