A Quick Look at the OneLINK Device
This section covers the physical features of the OneLINK Bridge AV interface.
All OneLINK kits include a receiver, which is typically co-located with other equipment, up to 328 ft (100
m) away from the camera. OneLINK kits for use with HDMI cameras also include an EZCamera Interface
Module (EZIM) HDBaseT converter, which is mounted adjacent to the camera.

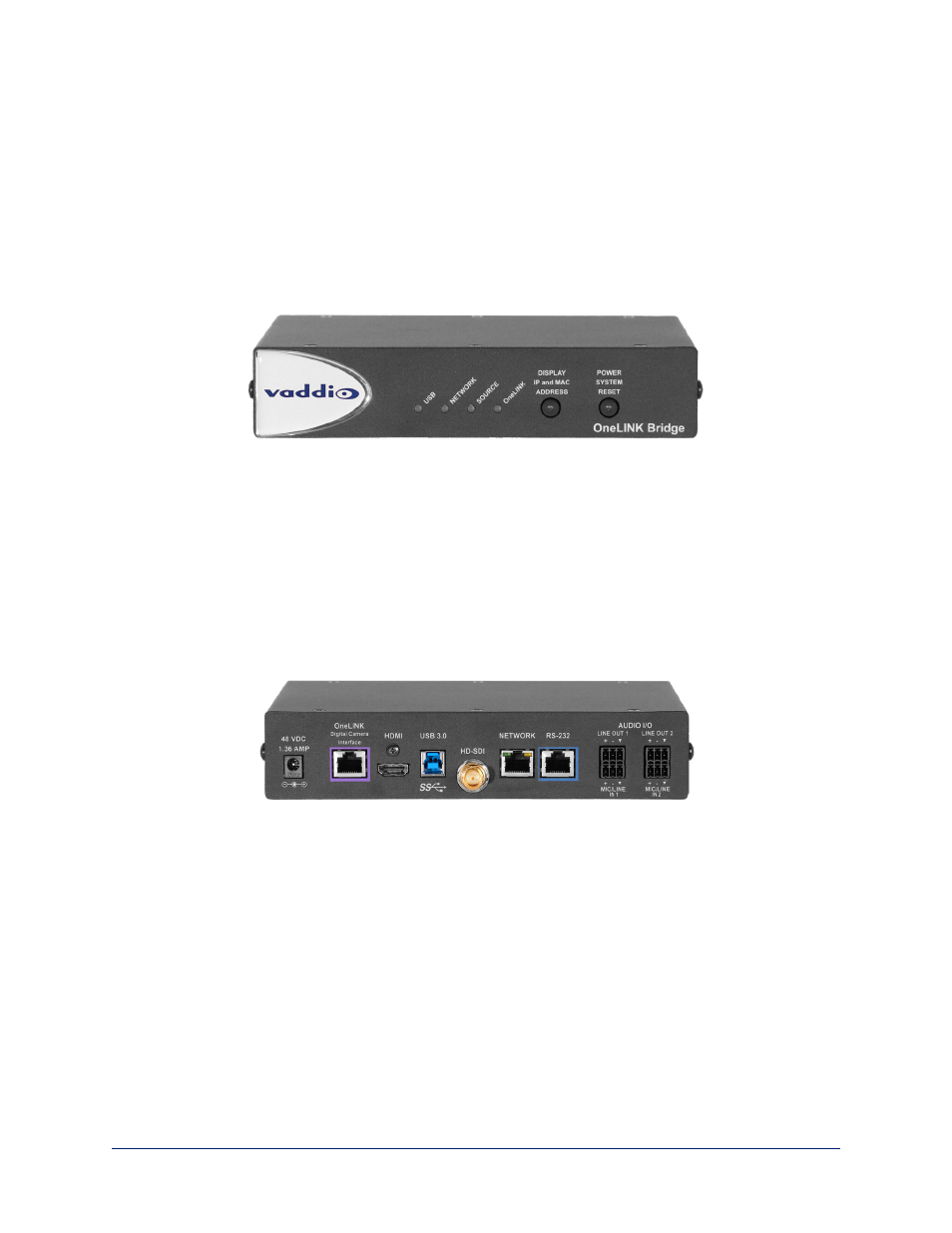

Front Panel of the Receiver
n USB light – On when a USB stream is present.
n Network light – On when connected to the IP network.
n Source light – On when a video input is detected.
n OneLINK light – On when the OneLINK Bridge detects a connection to an HDBaseT device or to the
OneLINK EZIM.
n Display IP and MAC Address button (illuminated blue) – Displays the OneLINK Bridge IP and MAC
addresses as an overlay on all video outputs.
n Power System Reset button (illuminated red) – reboots the device. This does not affect the
connected camera.
Connector Panel of the Receiver
From the left:
n Power input jack – Connect the supplied 48 VDC, 1.36 A power supply.
n OneLINK interface port – Connection to the HDBaseT camera or to the EZIM. This bidirectional
connection carries video, audio (if available), network connectivity including H.264 IP streaming from
the camera (if available), RS-232 control, and 12 VDC camera power.
n HDMI output – Connection for a display.
n USB 3.0 – Connect to a computer for uncompressed video output with PCM audio for conferencing
applications.
n HD-SDI – Video output from the camera.
n Network port – Web interface access, H.264 IP streaming (if available from the camera), and third-
party IP control via Telnet API.
n RS-232 port – Connection for a camera controller.
n Audio I/O Line Out 1 and Line Out 2 – Far-end audio from conferencing application or as
configured in the audio matrix.
n Audio I/O Mic/Line In 1 and Mic/Line In 2 – Connections for microphones or other audio inputs.
