Getting Started
Kaleido-MX 4K

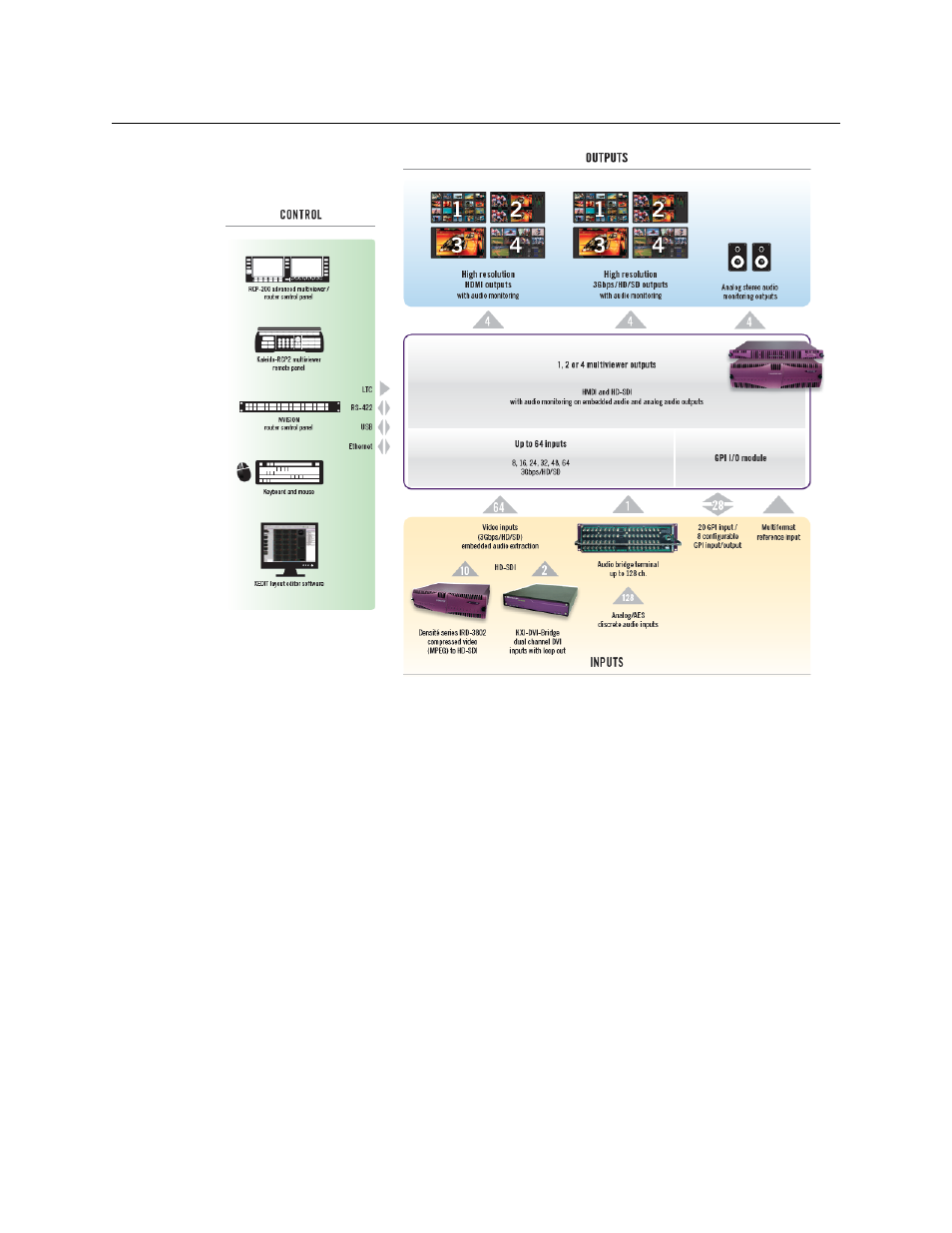

Kaleido-MX system overview
Kaleido-MX 4K
Available in two form factors (1
RU, and 3
RU), and four configurations, the Kaleido-MX 4K
ultra high-definition multiviewer can monitor up to 64 video inputs, on a 4K UHD display,
without visible quadrants.
Kaleido-Modular-X
The Kaleido-Modular-X offers a flexible and scalable multiviewer solution for TV
production optimized for the space, power and weight considerations found in studios and
outside broadcast trucks. FlexBridge coax cable bridging between the input and output
modules allows for the installation of the input stage next to the router or sources, and the
output stage next to displays, for simpler, cost-effective cabling with none of the risk
associated with HDMI extenders. The Kaleido-Modular-X supports up to 64 video inputs,
and up to four multiviewer outputs.
Cluster
As of version 4.00 of the Kaleido-X software, it is possible to configure a cluster system,
allowing operation of layouts sharing output signals from multiple multiviewers fed by a
