327
Kaleido-X
User’s Manual

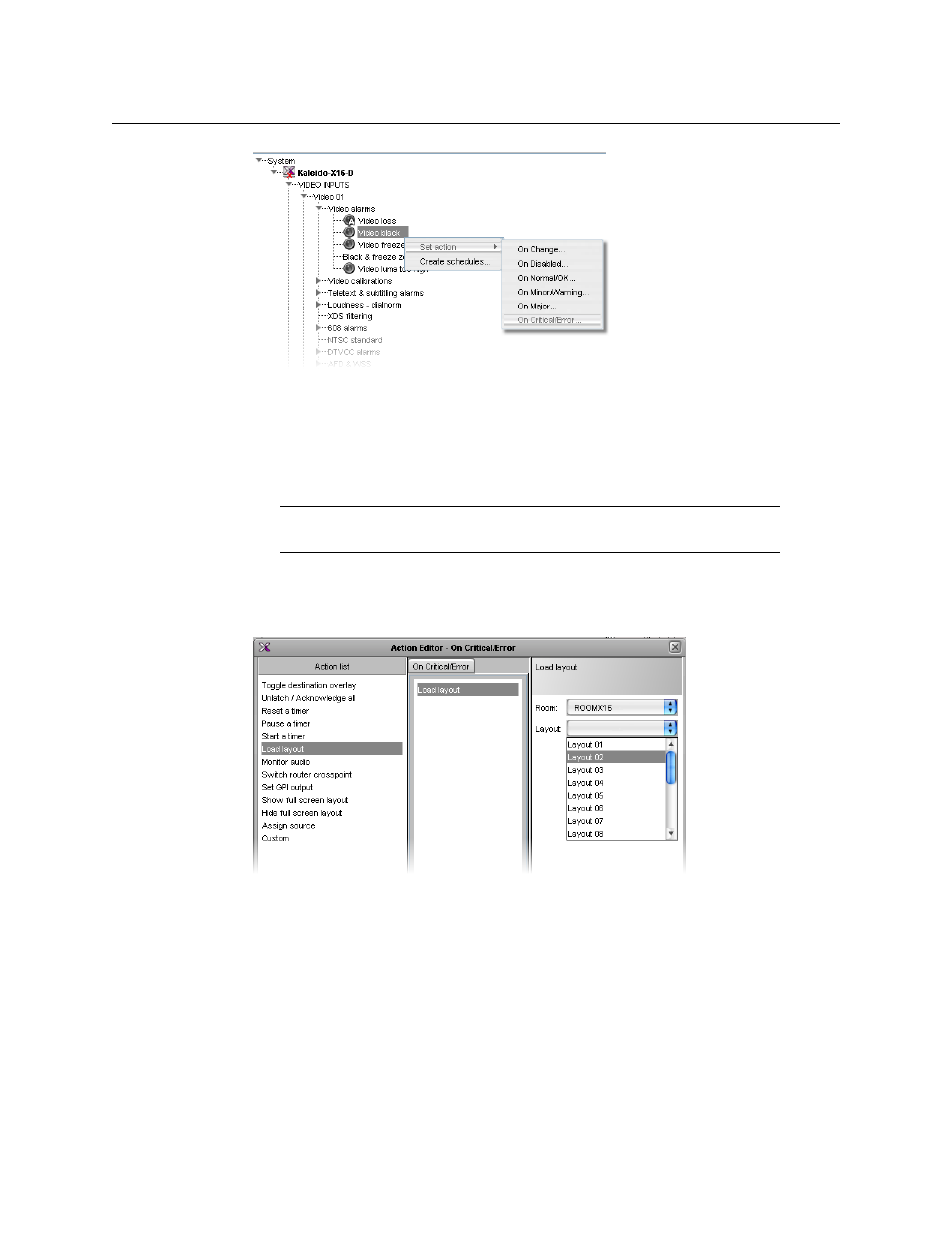

2 On the Set action menu, select the appropriate trigger condition:
• On Change
• On Disabled
• On Normal/OK
• On Critical/Error
The Action Editor window appears.
3 From the Action list pane, drag one of the available action items to the middle column,
and then set the action item’s properties in the Properties pane.
4 Repeat step 3 as needed.
5 Click OK to close the window, and then click the Save button on the toolbar, to save the
action.
6 Export the database to the multiviewer.
Creating an Action that can be Triggered via a Gateway Command
To create an action that can be triggered via the Gateway
1 Perform step 1 to step 3 from Creating Background Actions , on page 324.
2 From the Action list area of the Tools pane, drag one of the available action items onto
the On Change / Gateway column at the bottom of the Actions pane.
Note: The trigger conditions on Minor/Warning and on Major are
supported for Gateway alarms only.
