Typical Data Link Settings

The following section shows the most common line extender connection schemes and the expected T1/E1
and LVDS data line parameters for each. Consult the applicable tables to determine the correct switch
settings. Consult GAI-Tronics for technical support of connection schemes not shown in this manual.

Point-to-Point Page/Party

®

System Connection

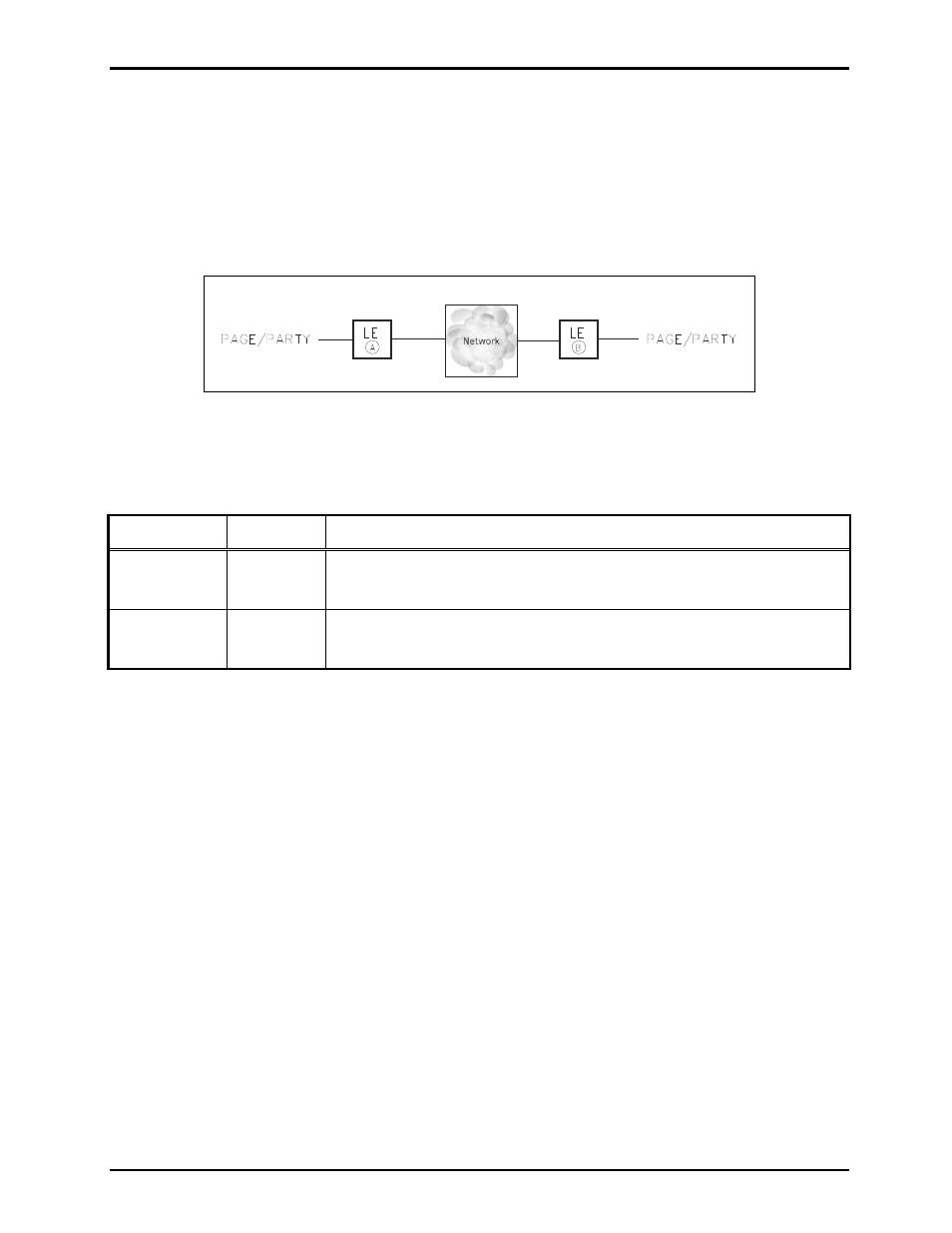

Figure 7. Point-to-Point Page/Party

®

System Connection

Table 24. Point-to-Point Page/Party

®

System Connection Table

Parameter Switch

Configuration

Description

T1/E1 Clock
Source

SW3-1

SW3-2

Unit A & B is the master clock sources:
SW3-1 (open) SW3-2 (open)

LVDS Clock
Source

SW3-3

SW3-4

Not used - disable both LVDS “in” and “LVDS out”:
SW3-3 (open) SW3-4 (open)
