Removing the sfp module, 36 of 68, Figure 18. fiber optic cable installation – GAI-Tronics LE300-IP Page/Party Line Extender User Manual
Page 39: Le300-ip
Advertising
Pub. 42004-488C
M
ODEL
LE300-IP
P
AGE
/P
ARTY
®
L
INE
E
XTENDER
P
AGE
36 of 68
e:\standard ioms - current release\42004 instr. manuals\42004-488c.doc
09/14
5. Insert the LC fiber optic connector into the SFP Module as shown in Figure 18 below.
CONTROL
EXT CLK
DCE
SD
NET
1
NET/USER
2
USER
3
1
2
3
4
LASER
CLASS
1
ETH
E1/T1
SYNC
SYNC
SYNC
SYNC

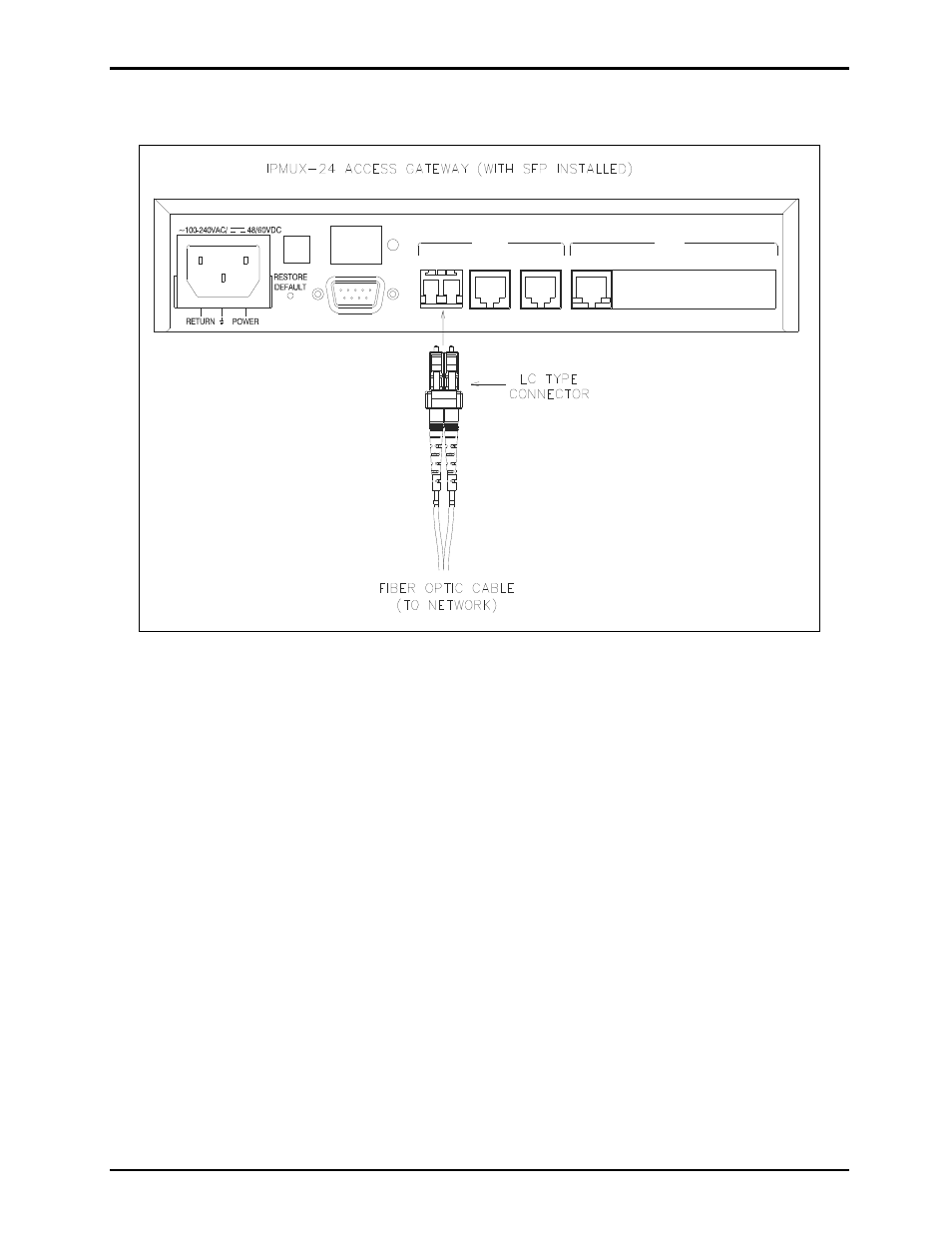

Figure 18. Fiber Optic Cable Installation
Removing the SFP Module
1. Disconnect the fiber optic cable from the SFP module.
2. Unlock the wire latch by lowering it downwards (as opposed to locking).
3. Hold the wire latch and pull the SFP module out of the Ethernet port.
