Series Connection of Page/Party ® System

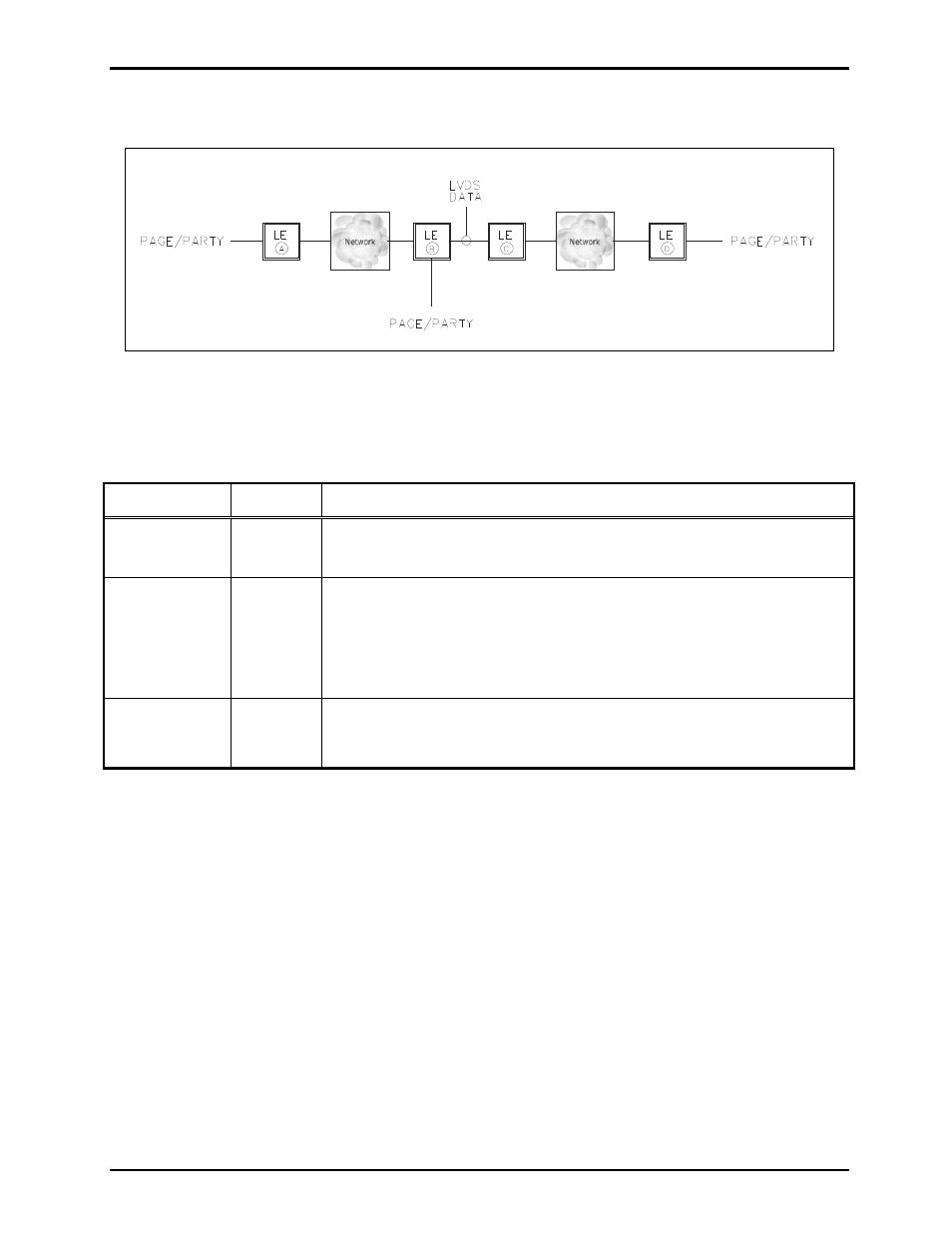

Figure 9. Series Connection of Page/Party ® System
Table 26. Series Connection of Page/Party ® System Table
Parameter Switch Configuration Description
T1/E1 Clock
Source SW3-1
SW3-2
 Units A, B, C, & D are the master T1/E1 clock sources:
SW3-1 (open) SW3-2 (open)
LVDS Clock
Source SW3-3
SW3-4
LVDS clock is used between units B and C:
 Unit B - “in” disabled, “out” enabled:
SW3-3 (open) SW3-4 (closed)
 Unit C - “in” enabled, “out” disabled:
SW3-3 (closed) SW3-4 (open)
Mute Analog
Lines SW6-4 Unit C has the page and party lines muted since there is not a Page/Party ®
cable connected:
SW6-4
(closed)
