Connecting Bundles between Line Extenders
The E1/T1 timeslots must be assigned to a bundle. IPmux-24 supports up to 16 bundles per E1/T1 link.
Each bundle can include up to 31 E1 timeslots or up to 24 T1 timeslots. The bundle identification numbers
are 1–16.
The bundle is then sent to the PW Host IP address of the IPmux-24 in the remote line extender. Any
bundle can be connected to any bundle of the IPmux-24 in the remote line extender.
1. Assign Timeslots to a Bundle.

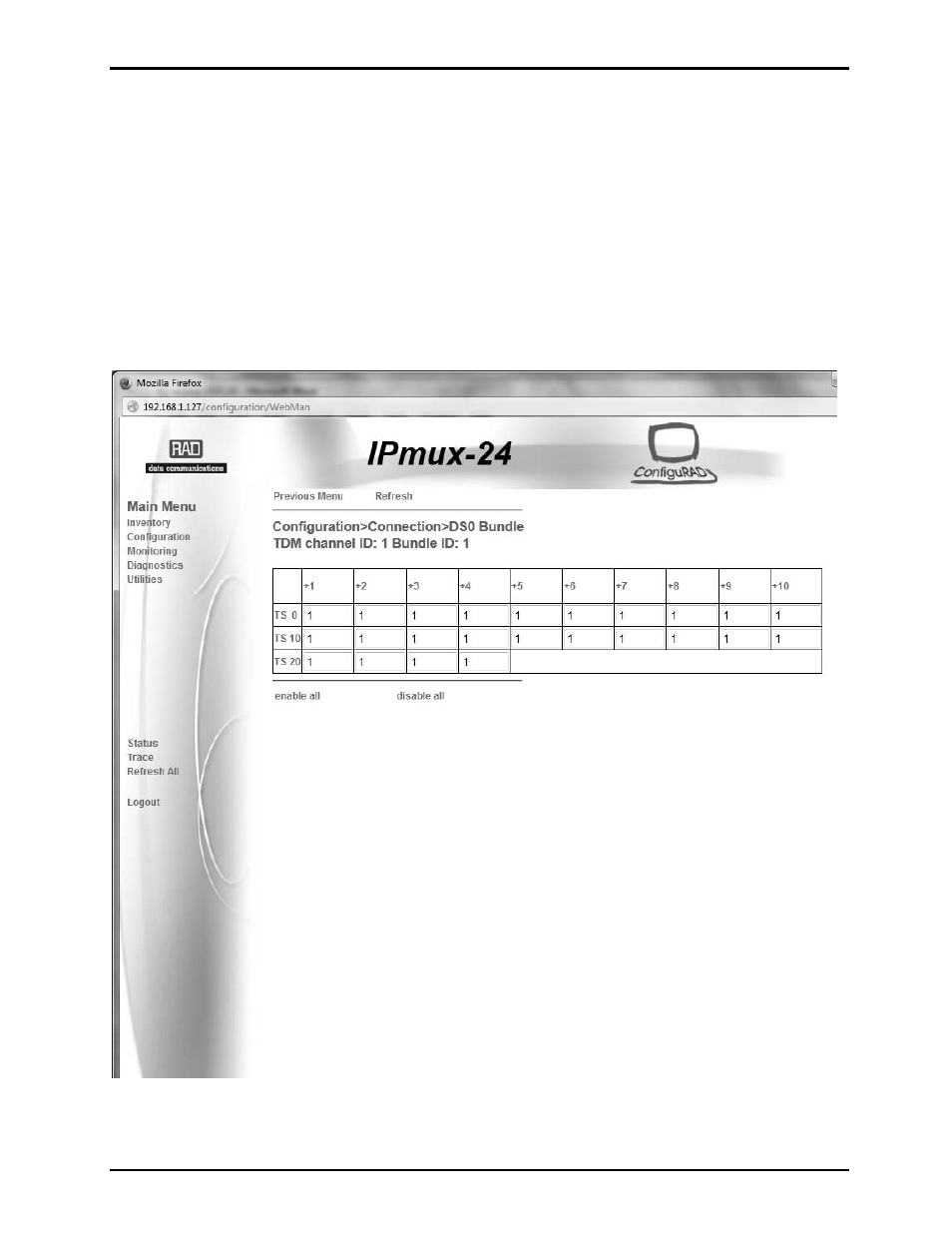

From the DS0 Bundle Configuration menu (Main > Configuration > Connection > DS0 bundle
configuration), assign desired timeslots to a bundle by setting them to 1.
